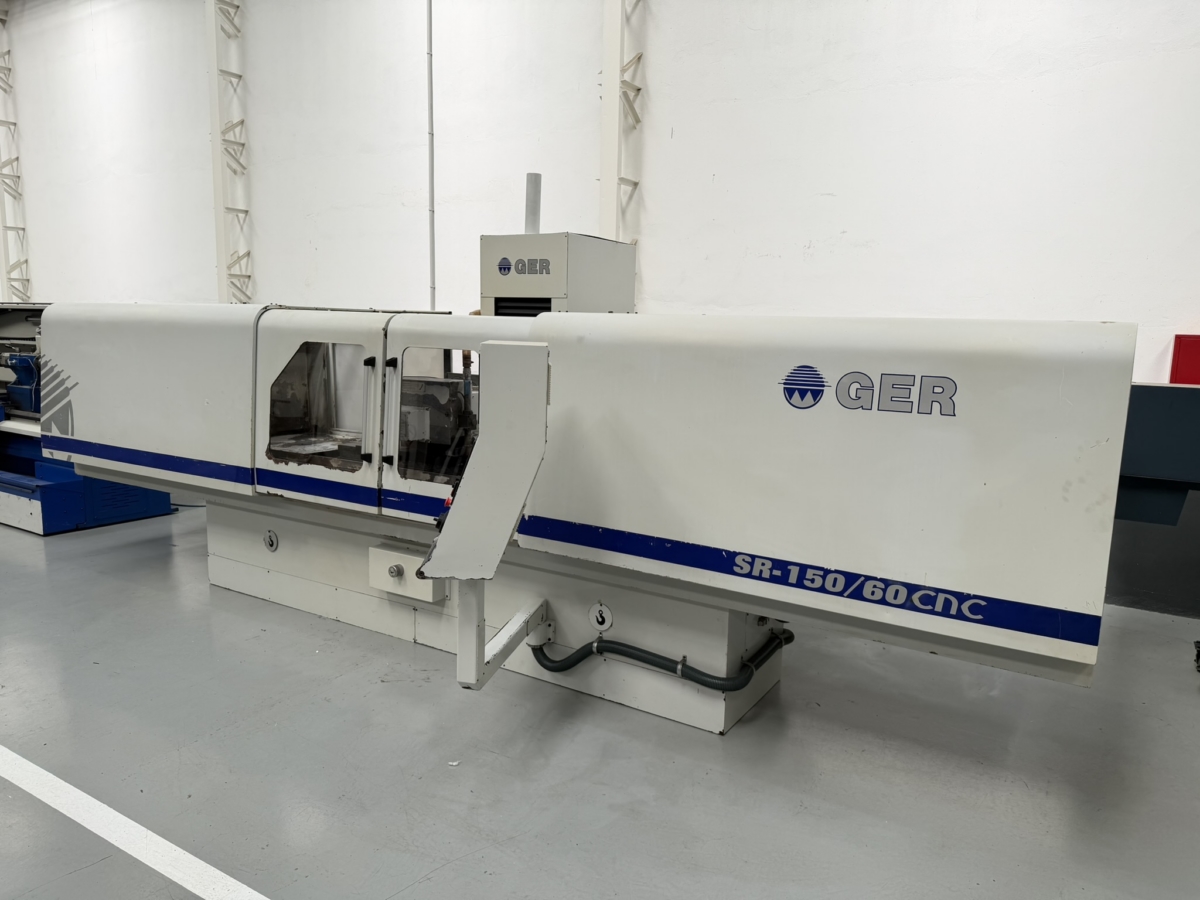

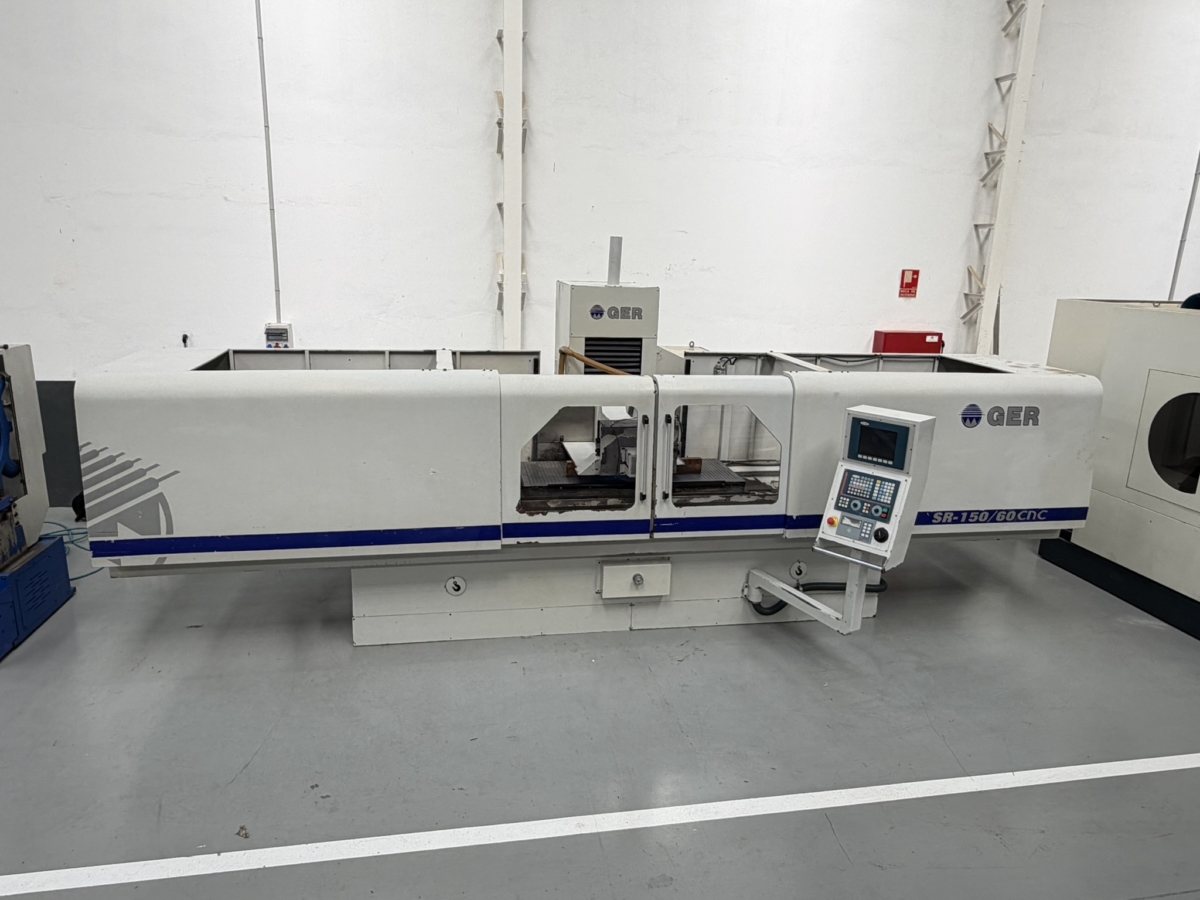

accessories for grinding machines GER SR150-60 CNC
|
|
| Stock-No. |
1120-966 |
| Category |
accessories for grinding machines |
| Make |
GER |
| Type |
SR150-60 CNC |
| New in |
2007 |
| Control |
CNC FAGOR 8055i |
| Location |
Auf Anfrage |
| Origin |
|
| Delivery time |
on inquiry |
| Freight basis |
Free carrier |
| Technical details |
| dimensions of the machine ca. |
6,2 x 3,4 x 2,6 m |
| weight of the machine ca. |
9,6 t |
| power requirement |
22 kW |
| Control |
FAGOR 8055i |
| table-size |
1800x500 mm |
| long. travel of table |
1660 mm |
| table weight |
1700 Kg |
| cross travel |
600 mm |
| number of spindle speeds |
1500 U/min/rpm |
| spindle drive |
12 kW |
| Description |
-Usable grinding area 1,500 x 680 mm
-Max. distance table grinding wheel center 625 mm
-Infinitely variable table speed 228 m/min
-Cross-feed speed 0.02 5 m/min
-Vertical feed speed 0.02 2 m/min
-Infinitely variable table speed control Included
-Max. grinding width (with 80 mm wheel) 680 mm
-Smallest programmable CNC increment 0.001 mm
-Grinding wheel dimensions Ø 400 x 80 x 127 mm
-FAGOR servo motors and drives for 3 axes (X, Y, Z) Included
-Electromagnetic chuck (high density) Included
-Electromagnetic chuck dimensions 1,500 x 600 mm
-Coolant filtration system with paper filter Included
-Automatic CNC dressing unit with wear compensation Included
-Marposs E78 grinding wheel balancing system Included
|
|
|
|
