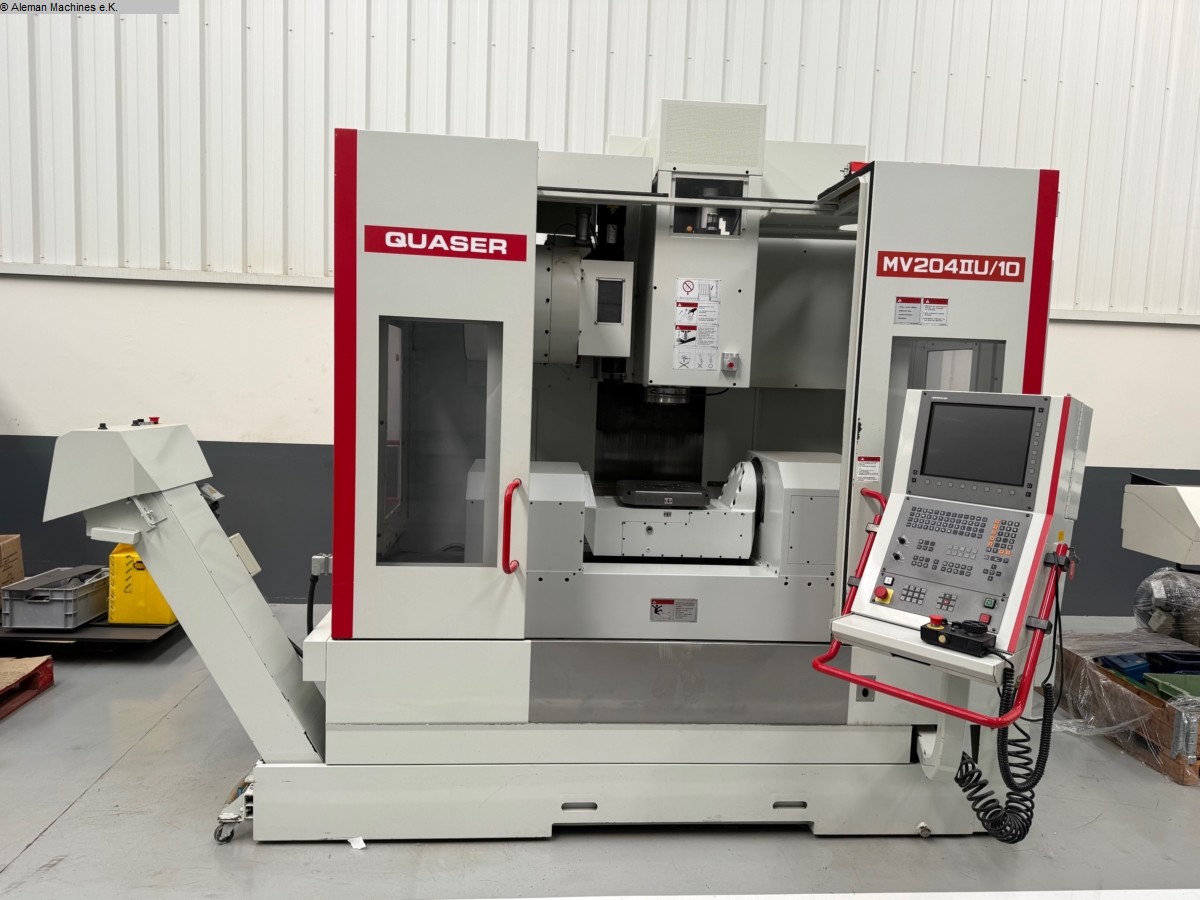

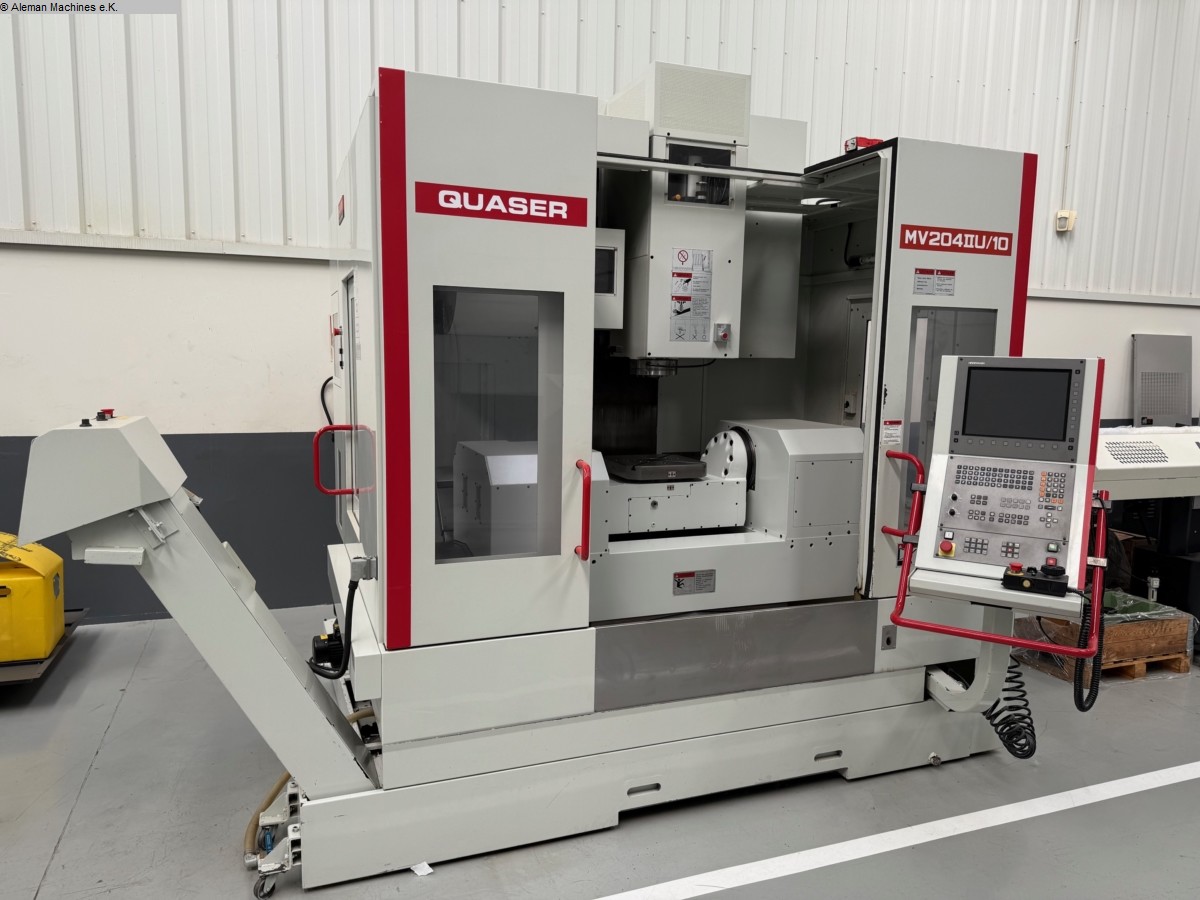

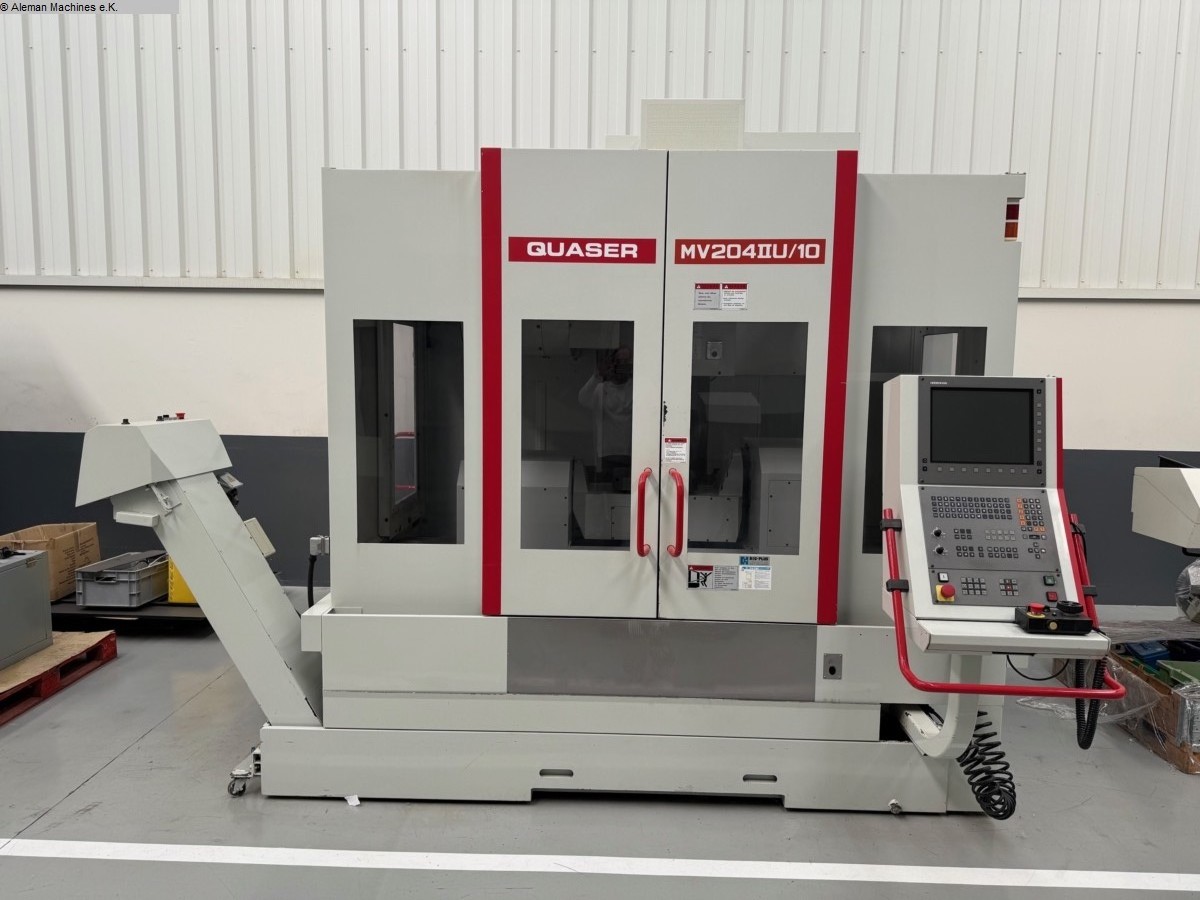

Machining Center - Universal QUASER (5-ACHSEN) MV204IIU / 10
|
|
| Stock-No. |
1120-323 |
| Category |
Machining Center - Universal |
| Make |
QUASER (5-ACHSEN) |
| Type |
MV204IIU / 10 |
| New in |
2002 |

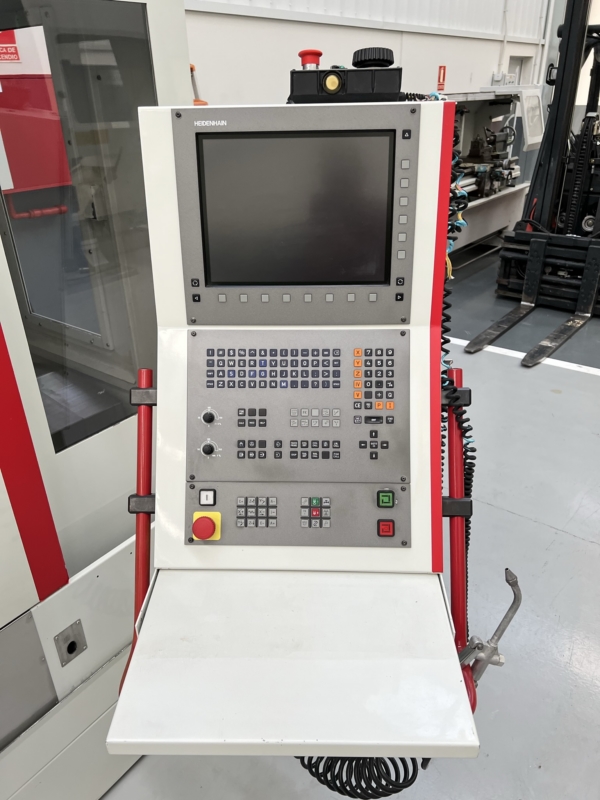

| Control |
CNC HEIDENHAIN ITNC 530 |
| Location |
Auf Anfrage |
| Origin |
|
| Delivery time |
immediately |
| Freight basis |
Free carrier |
| Technical details |
| x-travel |
700 mm |
| y-travel |
590 mm |
| z-travel |
480 mm |
| Control |
HEIDENHAIN ITNC 530 |
| table weight |
265 Kg |
| a-axis |
±110 ° |
| c-axis |
360 ° |
| rapid travel x/y/z |
32.000 mm/min |
| feed |
15.000 m/min |
| number of spindle speeds |
10.000 U/min/rpm |
| spindle taper |
BT - 40 |
| spindle drive |
15/33 kW |
| Torque |
192/189 Nm |
| tool change unit |
32 pos. |
| Working hours |
13.975 h |
| Spindle hours |
6.258 h |
| total power requirement |
30 kva |
| weight of the machine ca. |
8,2 t |
| dimensions of the machine ca. |
2.220 X 2.650 X 2.855 m |
| Description |
|
|
|
|
