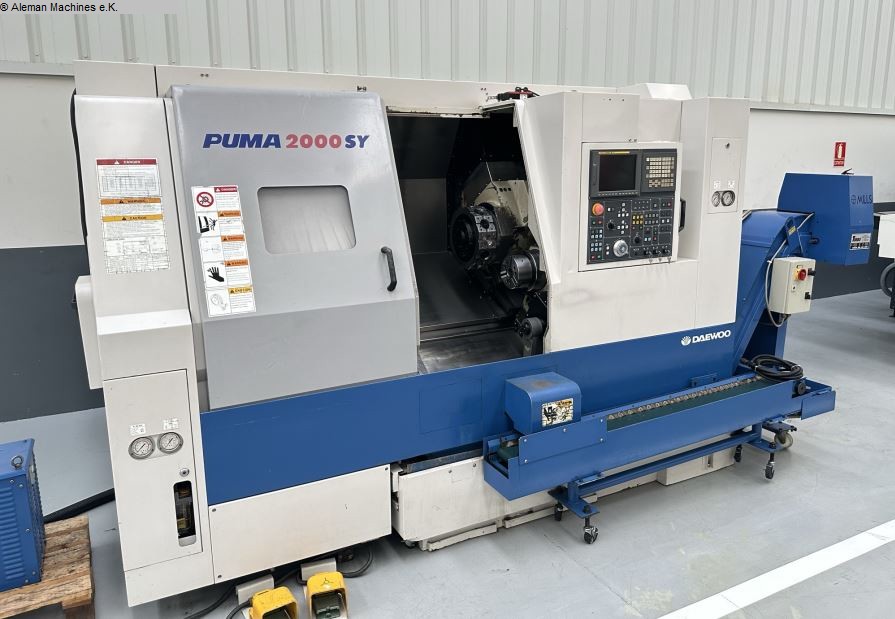

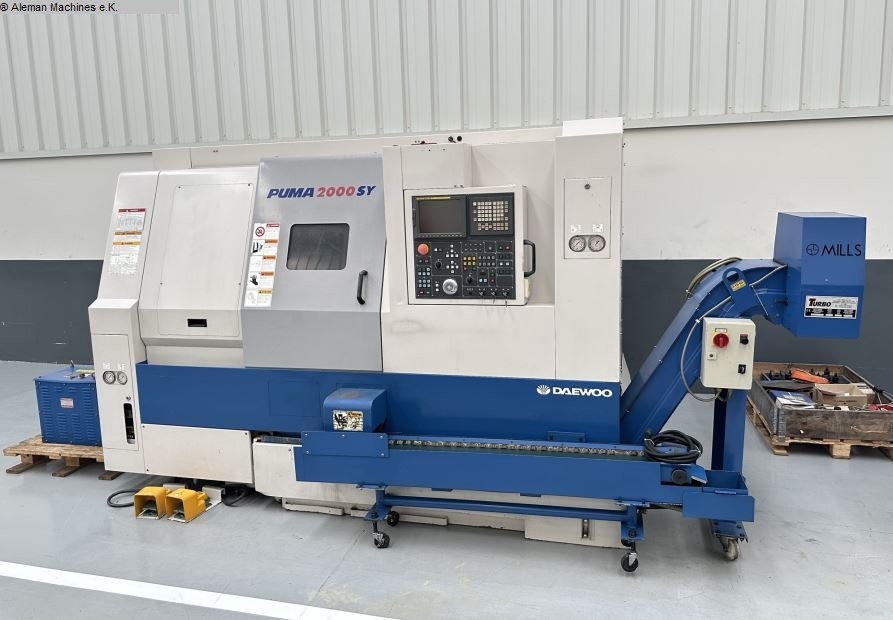

CNC Lathe DOOSAN-PUMA PUMA 2000 SY |
|
| Stock-no. |
1120-603 |
| Categoria |
CNC Lathe |
| Fai |
DOOSAN-PUMA |
| Tipo |
PUMA 2000 SY |
| Anne |
2003 |
| Controllo |

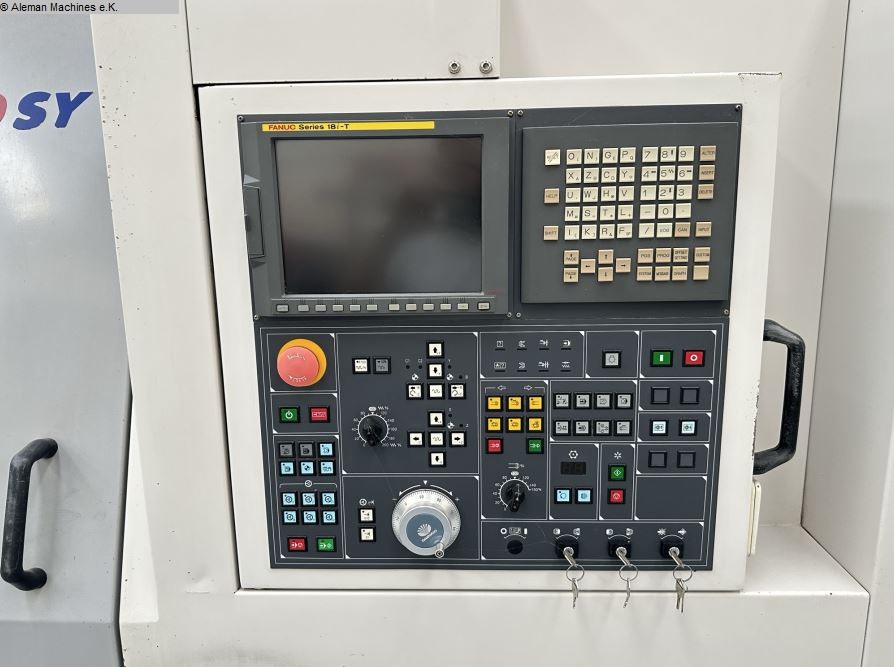

CNC FANUC 18i - T |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
TAIWAN |
| Tempi di consegna |
immediately |
| Quotazione |
Free carrier |
| Prezzo |
10.00 EUR |
| Technische Dettagli |
| turning diameter |
330 mm |
| turning length |
510 mm |
| control |
FANUC 18i - T |
| turning diameter over bed |
600 mm |
| turning diameter over slide |
550 mm |
| x-travel |
250 mm |
| z - travel |
580 mm |
| y-travel |
100 (±50) mm |
| b-axis |
0.001 mm |
| rapid travel x/y/z |
20/7,5/24/ m/min |
| rapid taverse |
B- Achse 20 m/min |
| c-axis |
4.500/ 6.000 ° |
| spindle passage |
76/ 45 mm |
| spindle nose |
A2#6 |
| spindle turning speed range |
4.500/ 6.00 U/min |
| spindle drive |
15/ 7,5 kW |

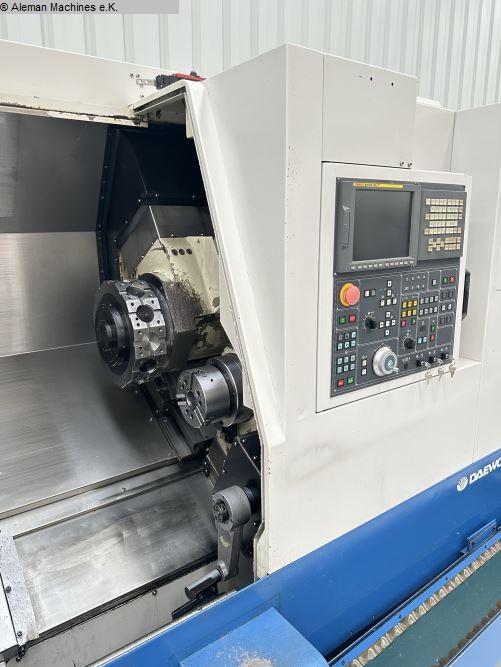

| Turret |
12- fach Stationen |
| Chip coveyor |
Inkl. |

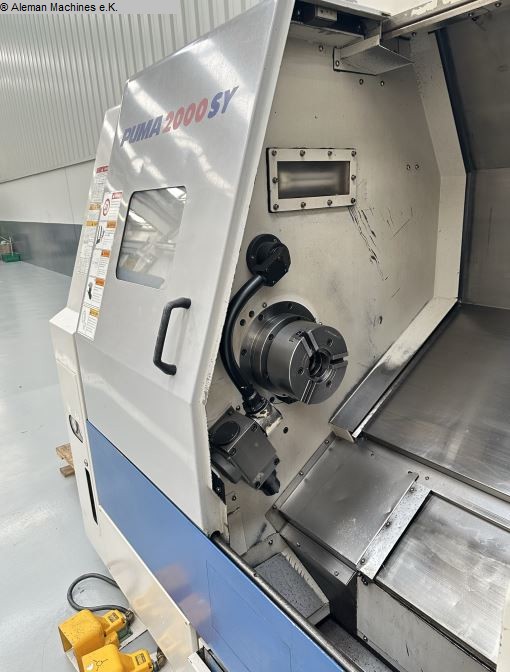

| chuck |
Hauptspindel 210 mm |
| chuck |
Subspindel 160 mm |

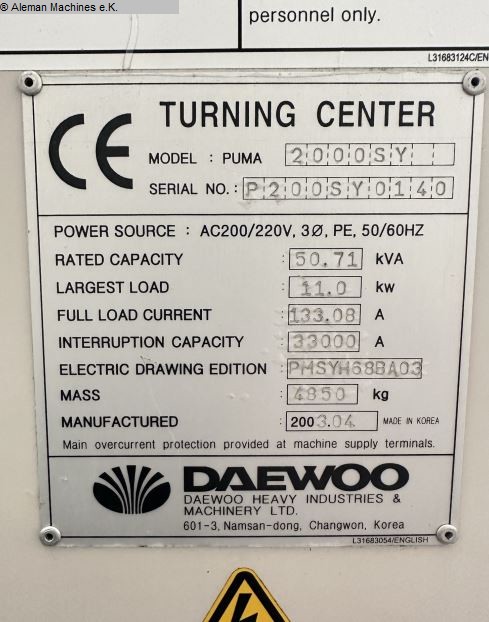

| total power requirement |
50,7 kVA |
| weight of the machine ca. |
4,9 t |
| dimensions of the machine ca. |
3.118 x 1.705 x 2.076 mm |
| Descrizione |
Main and sub spindle:
- 12 - compartment turret with powered tools.
- 2 Axial tool holders
- Radial tool age
- High pressure pump 7 bar
|
|
|
|
