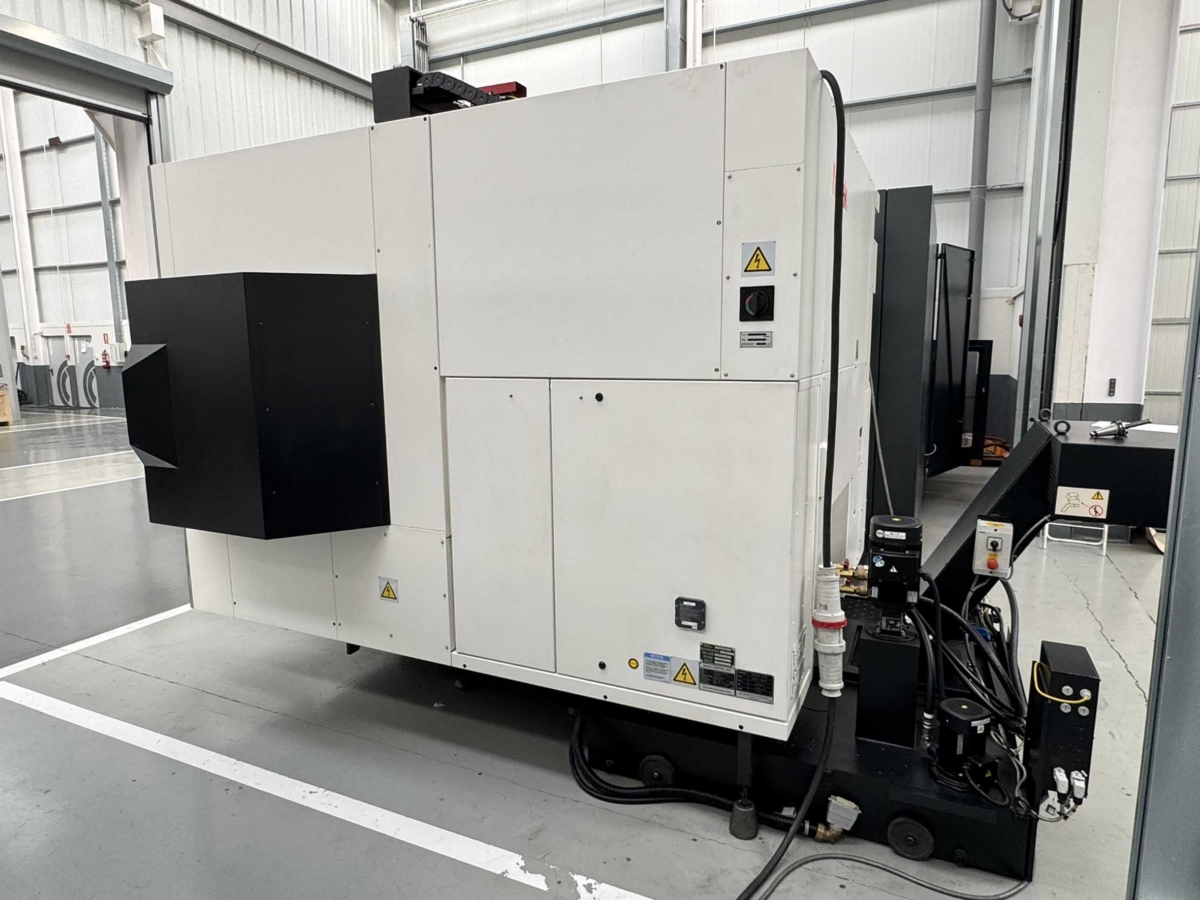

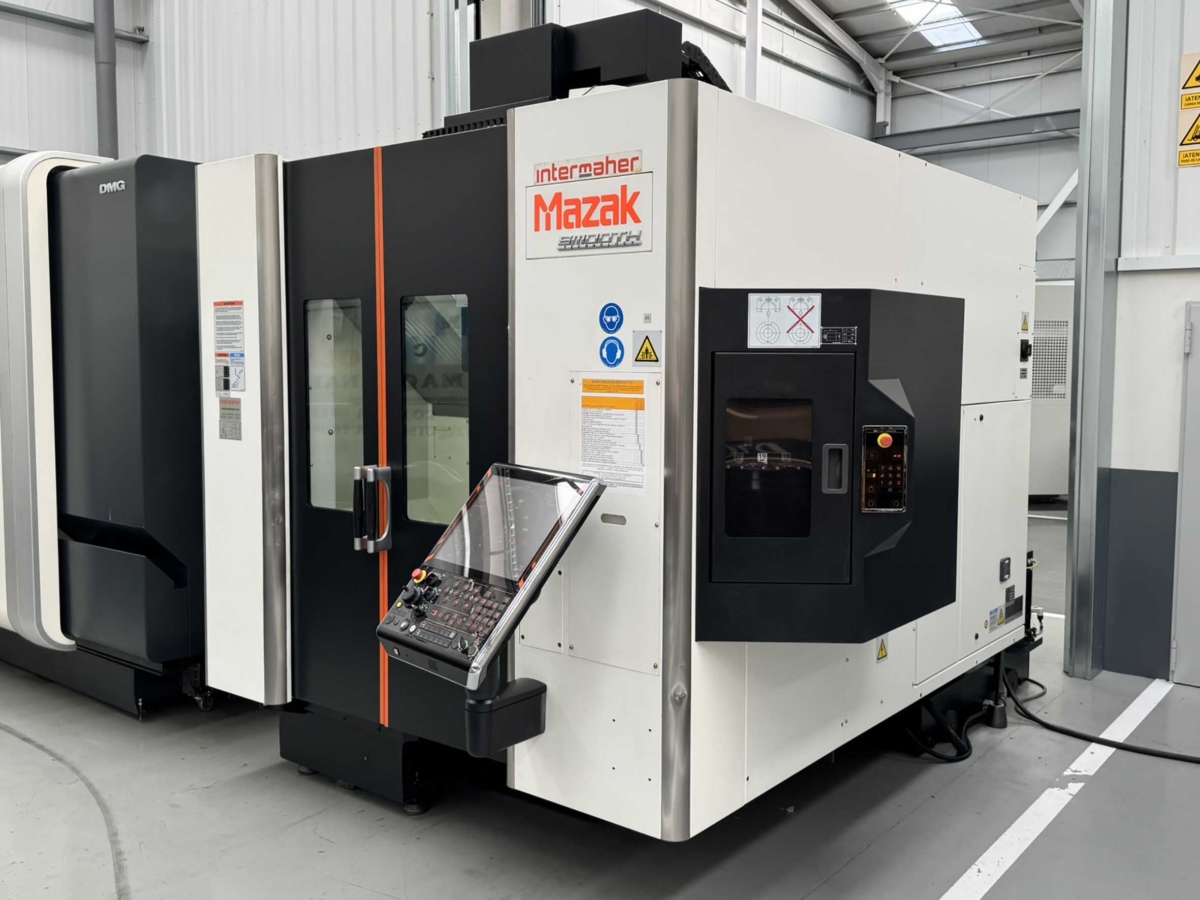

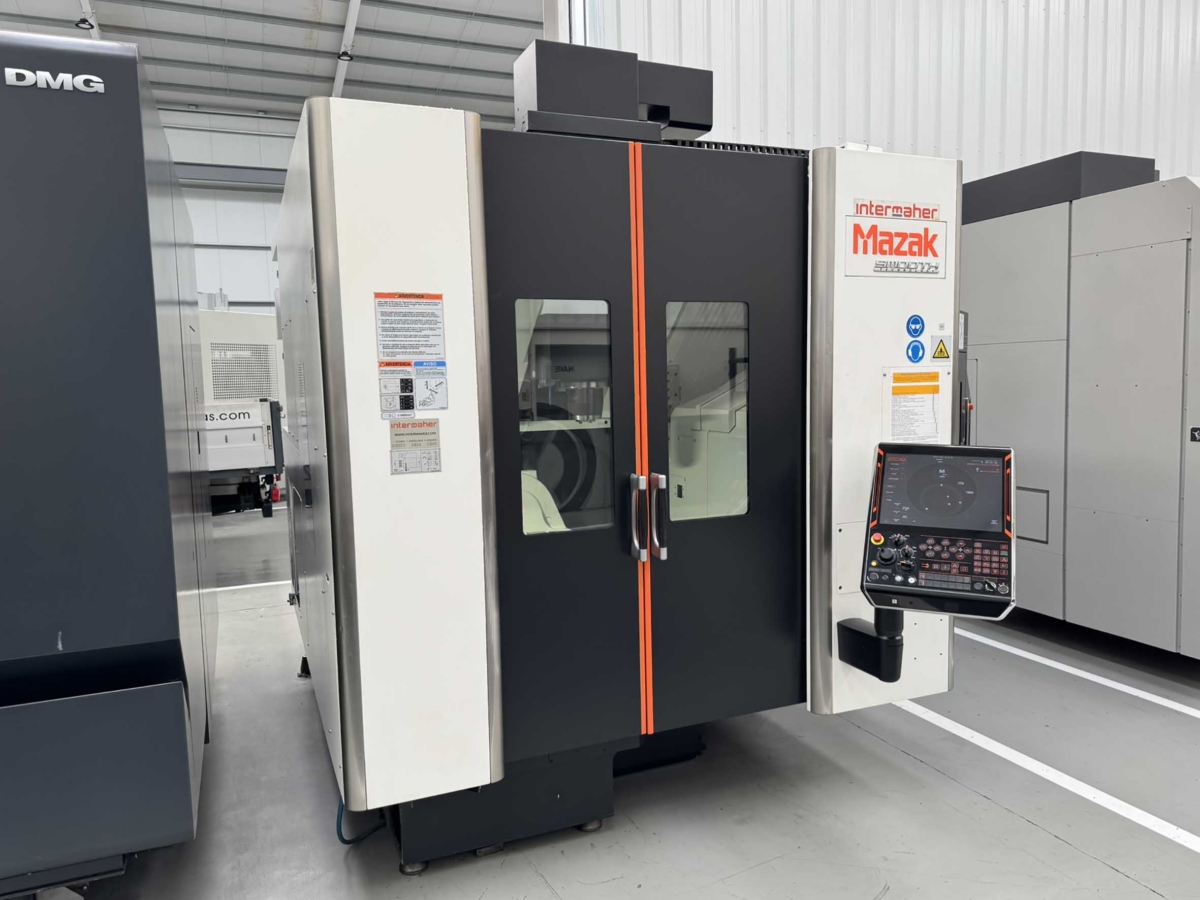

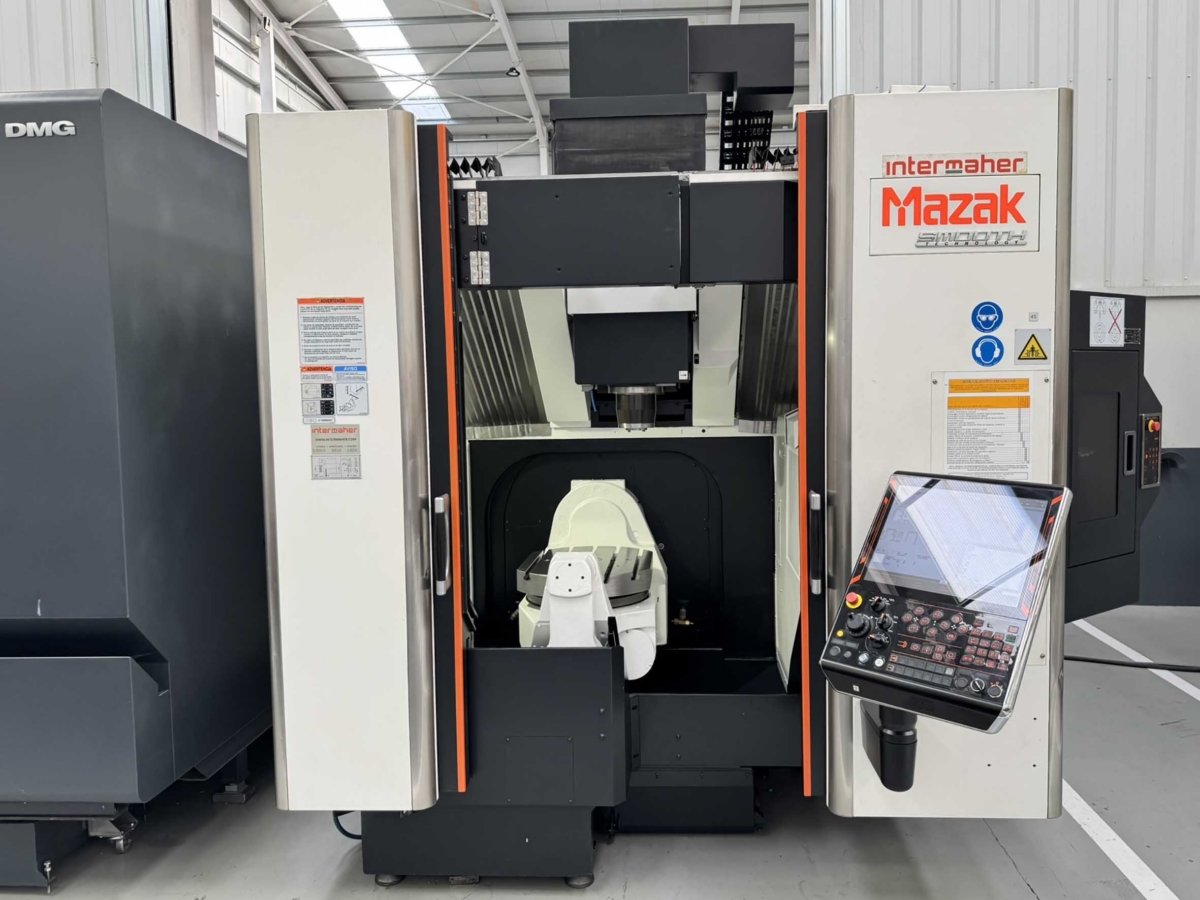

Milling Machining Centers 5 Axis MAZAK VARIAXIS J-600/5X |
|
| Stock-no. |
1120-561 |
| Categoria |
Milling Machining Centers 5 Axis |
| Fai |
MAZAK |
| Tipo |
VARIAXIS J-600/5X |
| Anne |
2016 |
| Controllo |
CNC MAZATROL SmoothX |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
Japan |
| Tempi di consegna |
immediately |
| Quotazione |
Free carrier |
| Technische Dettagli |
| x-travel |
850 mm |
| y-travel |
550 mm |
| z-travel |
510 mm |
| Control |
MAZATROL SmoothX |
| table-size |
600x500 mm |
| table weight |
500 Kg |
| workpiece height max. |
730x450 mm |

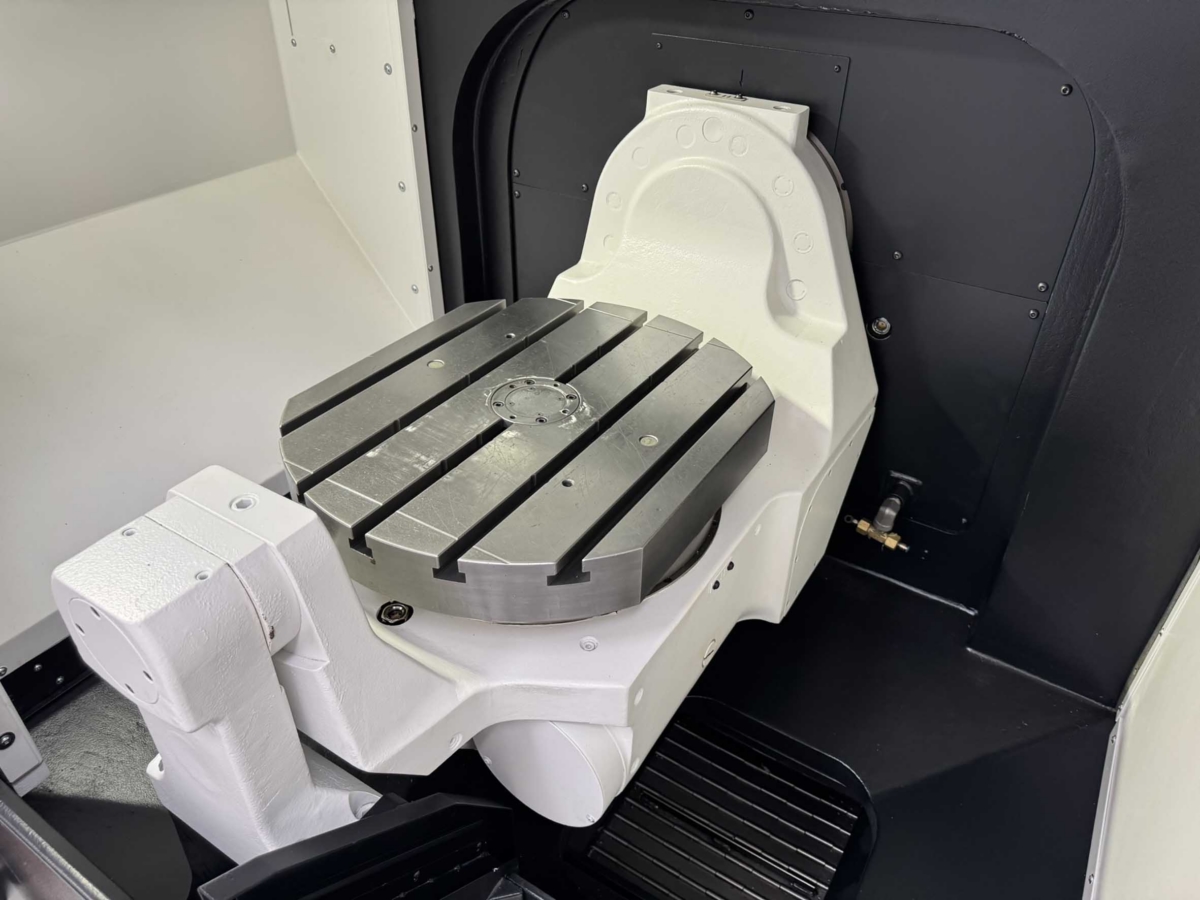

| Table tiltable |
210(-120+90) Grad |
| table rotation |
360 ° |
| rapid taverse |
30.000 mm/min |
| spindle |
Konus BT 40 |
| number of spindle speeds |
12.000 U/min/rpm |
| Spindle power |
11/7.5 kW |
| Torque |
65 Nm |
| Tools place |
30 fach |
| tool length - max. |
300 mm |
| weight of tools max. |
8 kg |
| Tool diameter |
90/130 mm |
| Chip coveyor |
inkl. |
| coolant tank capacity |
500 l |
| Machine on |
35.059 h |
| Spindle hours |
9.587 h |
| total power requirement |
40,9 kW |
| weight of the machine ca. |
11 t |
| dimensions of the machine ca. |
2. 400 x 3.325 x 3.060 mm |
| Descrizione |
-Min.-Max. distance from spindle nose to table top 70-580 mm.
-Rapid feed B/C axis 30 rpm
-Min. Indexing increment B axis 0.0001º
-Min. Indexing increment C axis 0.0001º
-Max. Working feed rate 30,000 mm/min
-Max. Working feed 30 rpm
-Simultaneously controlled axis 5
-Automatic tool changer:
-Tool selection method Random
-High pressure coolant through the spindle 15 bar
-Cylinder interpolation
-Programmable air blast through spindle nose
Transport dimensions:
Length: 3,800mm.
Width: 2,900 mm.
Height: 2,990 mm.
+ Chip conveyor and accessories
|
|
|
|
