| Stock-no. |
1120-550 |
| Categoria |
milling machining centers - universal |
| Fai |
DMG-MORI |
| Tipo |

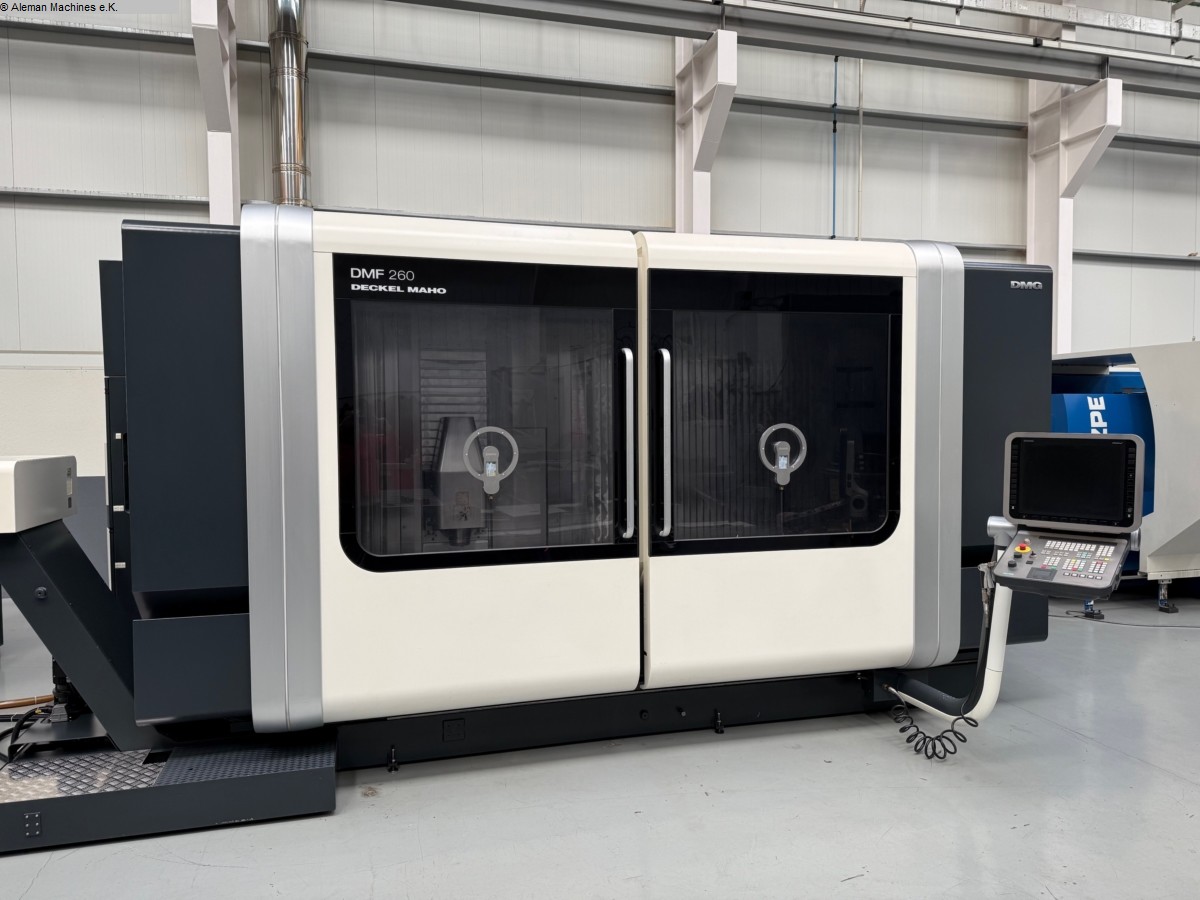

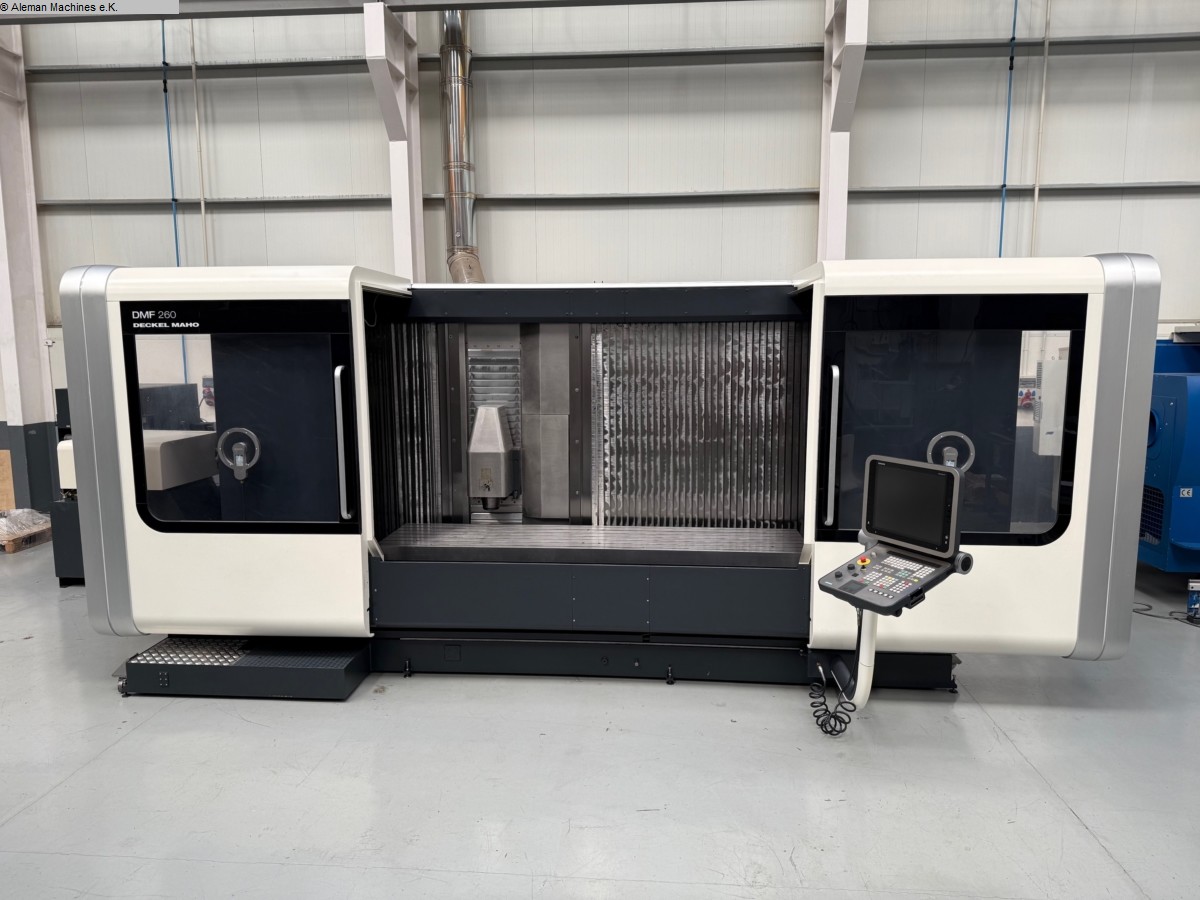

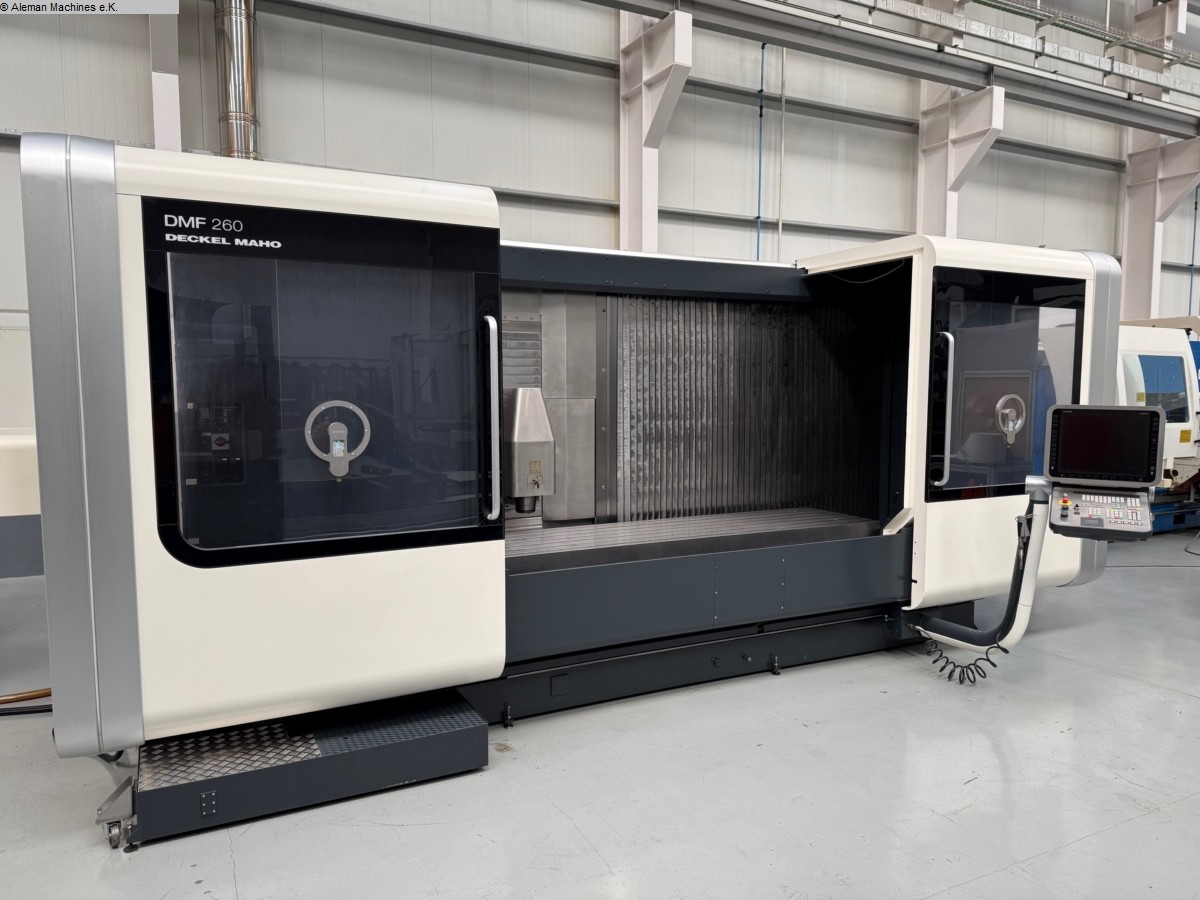

DMF 260 |
| Anne |
2011 |

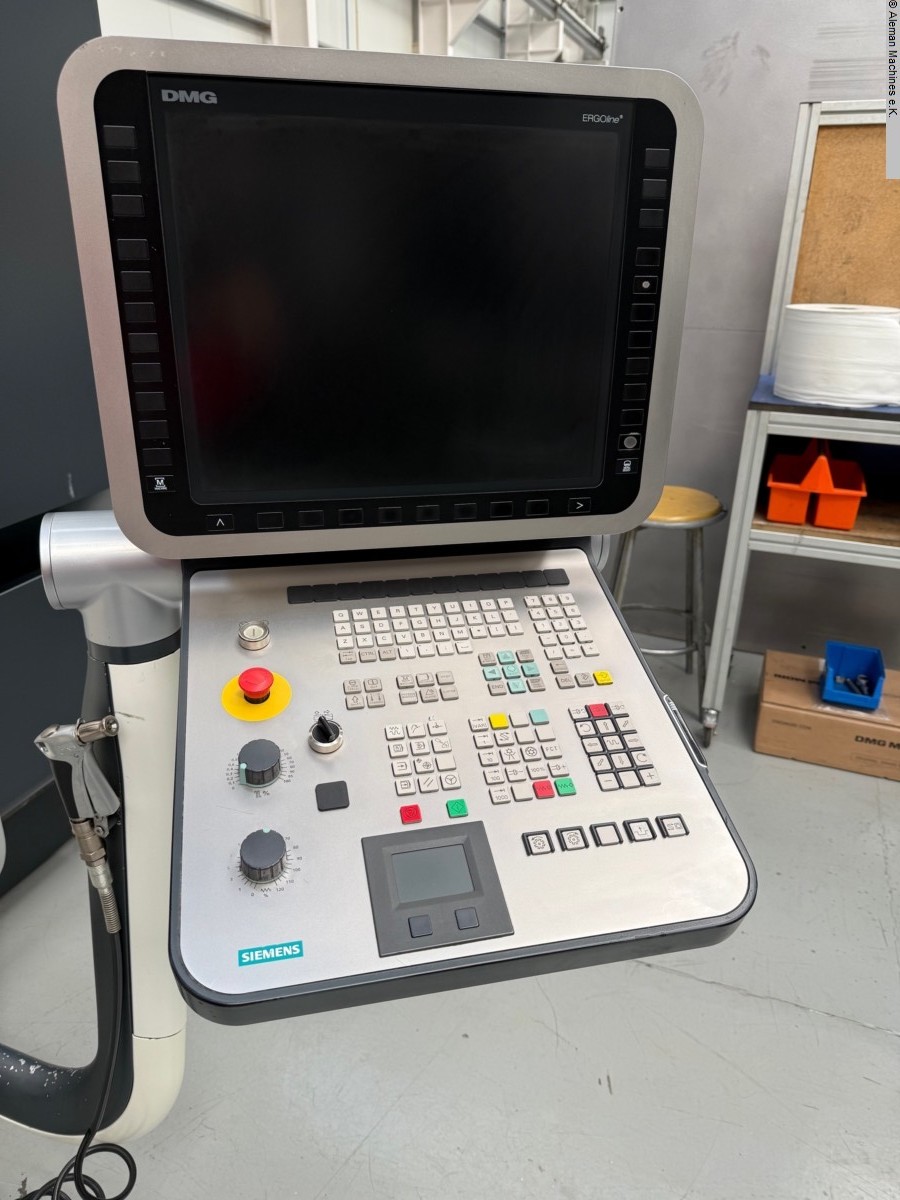

| Controllo |
CNC SIEMENS SINUMERIC 840D |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
Germany |
| Tempi di consegna |
immediately |
| Quotazione |
Free carrier |
| Prezzo |
10.00 EUR |
| Technische Dettagli |
| x-travel |
2.600 mm |
| y-travel |
700 mm |
| z-travel |
700 mm |
| Control |
SIEMENS SINUMERIC 840D |
| table-size |
2.900x700 mm |
| table weight |
2.150 Kg |
| tool adaptor |
SK 40 DIN 69872 |
| workpiece length - max. |
300 mm |
| workpiece weight |
6 kg |
| workpiece dia. |
80/130 mm |
| main drive |
18,4/14 kW |
| speed |
14.000 mm/min |
| rapid traverse |
40 m/min |
| feed |
40 m/min |
| Machine on |
18.859 h |
| Spindle hours |
5.666 h |
| internal coolant system feed |
40 Bar/600 l |

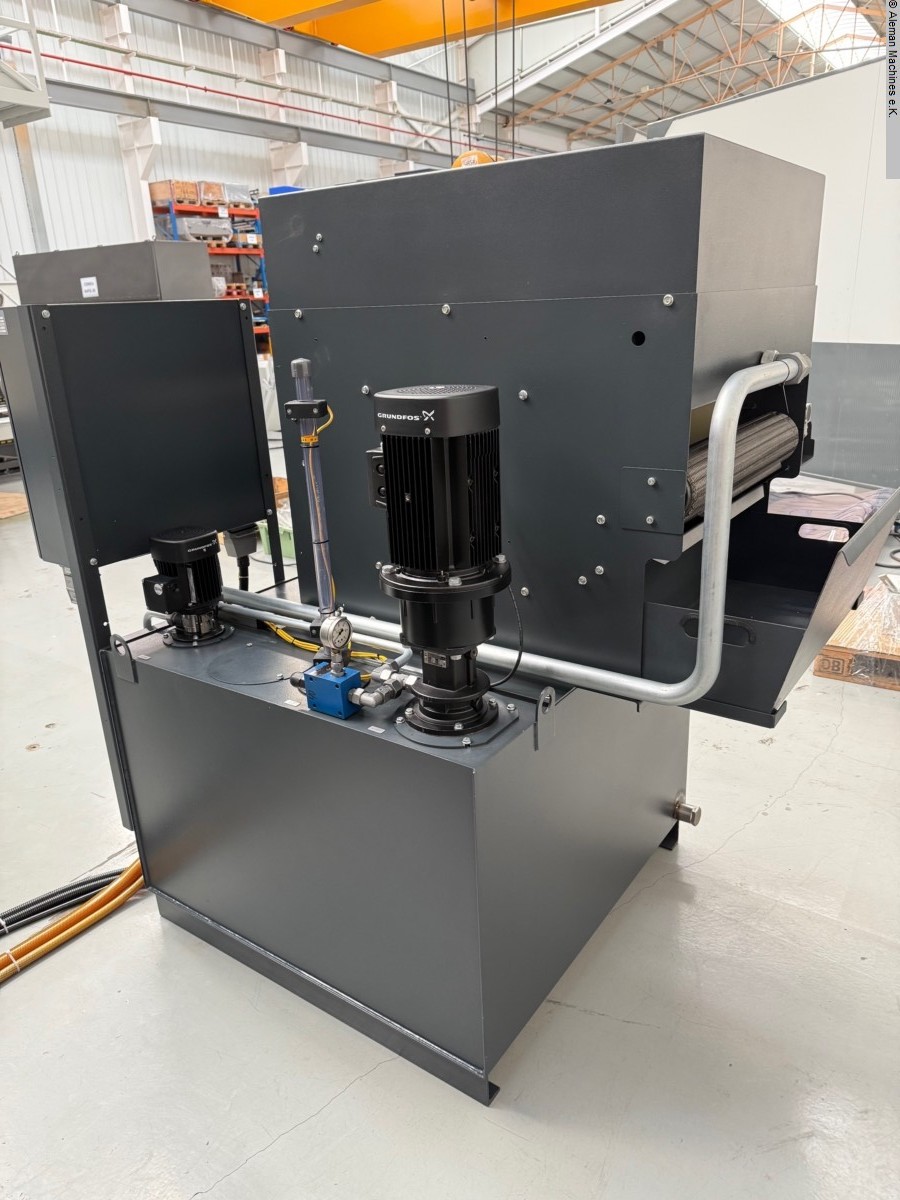

| Chip coveyor |
inkl. |
| Machine on |
19.230 |
| Spindle hours |
5.998 h |
| total power requirement |
55 kW |
| weight of the machine ca. |
14.520 kg |
| dimensions of the machine ca. |
10.280 x 7.230 x 3.042 mm |
| Descrizione |
Acceleration in the axis 4 m/s2
-Cleaning gun
-Portable handwheel
-Direct measurement system
|
