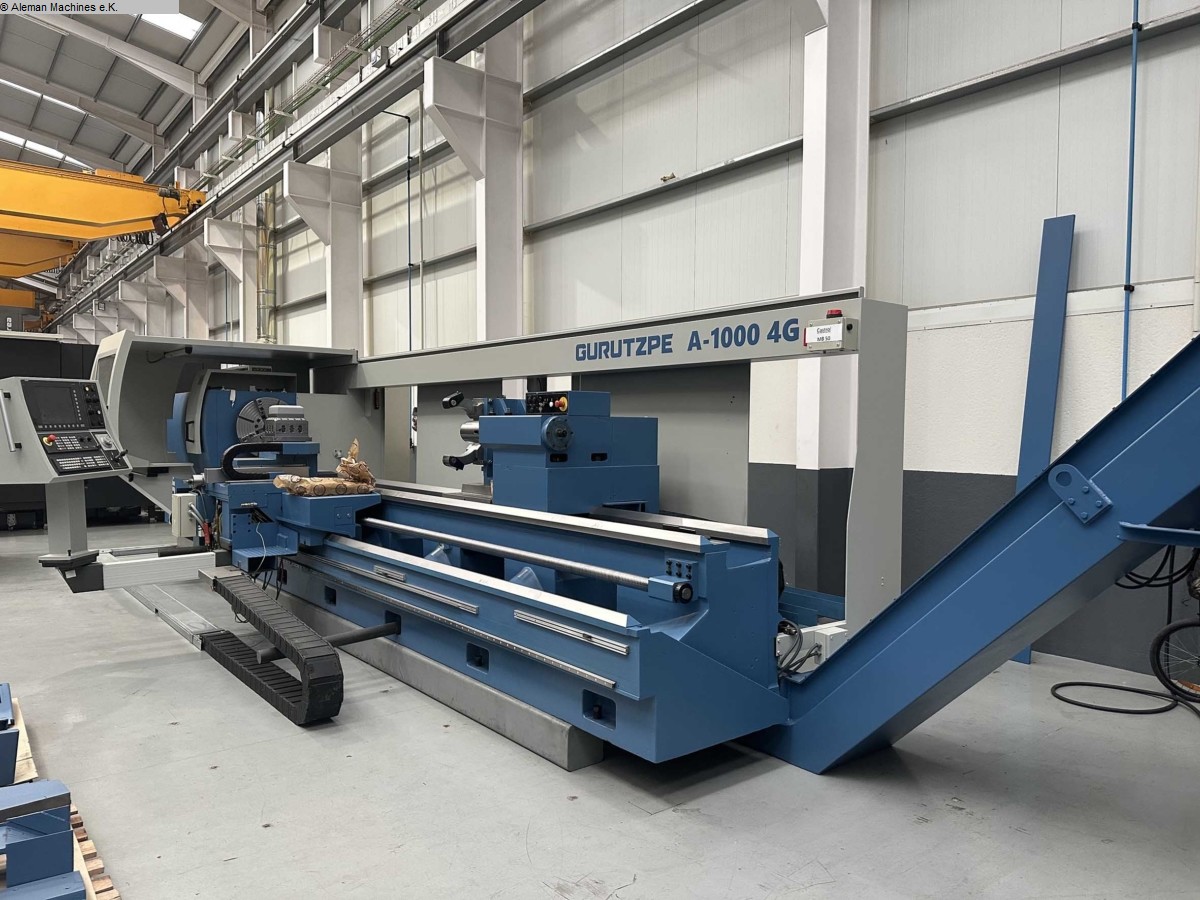

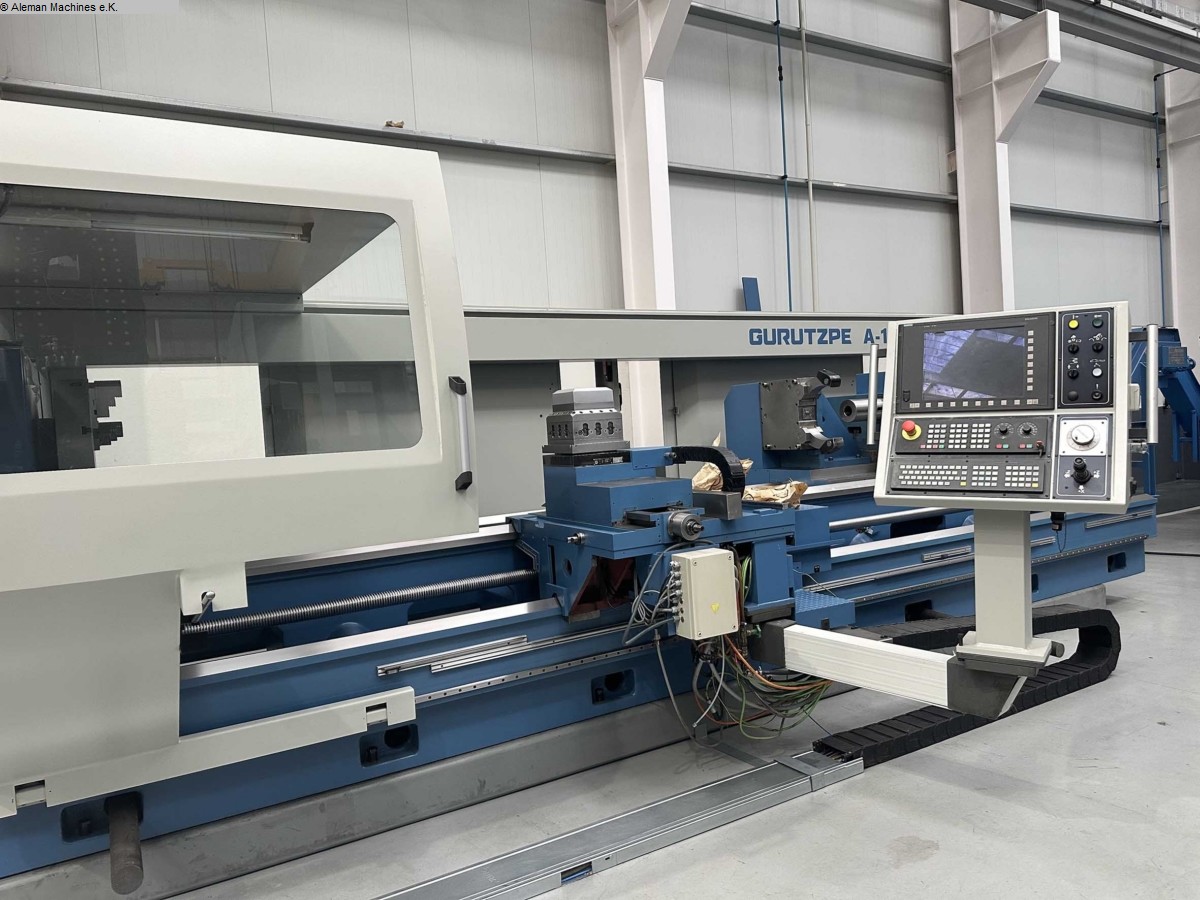

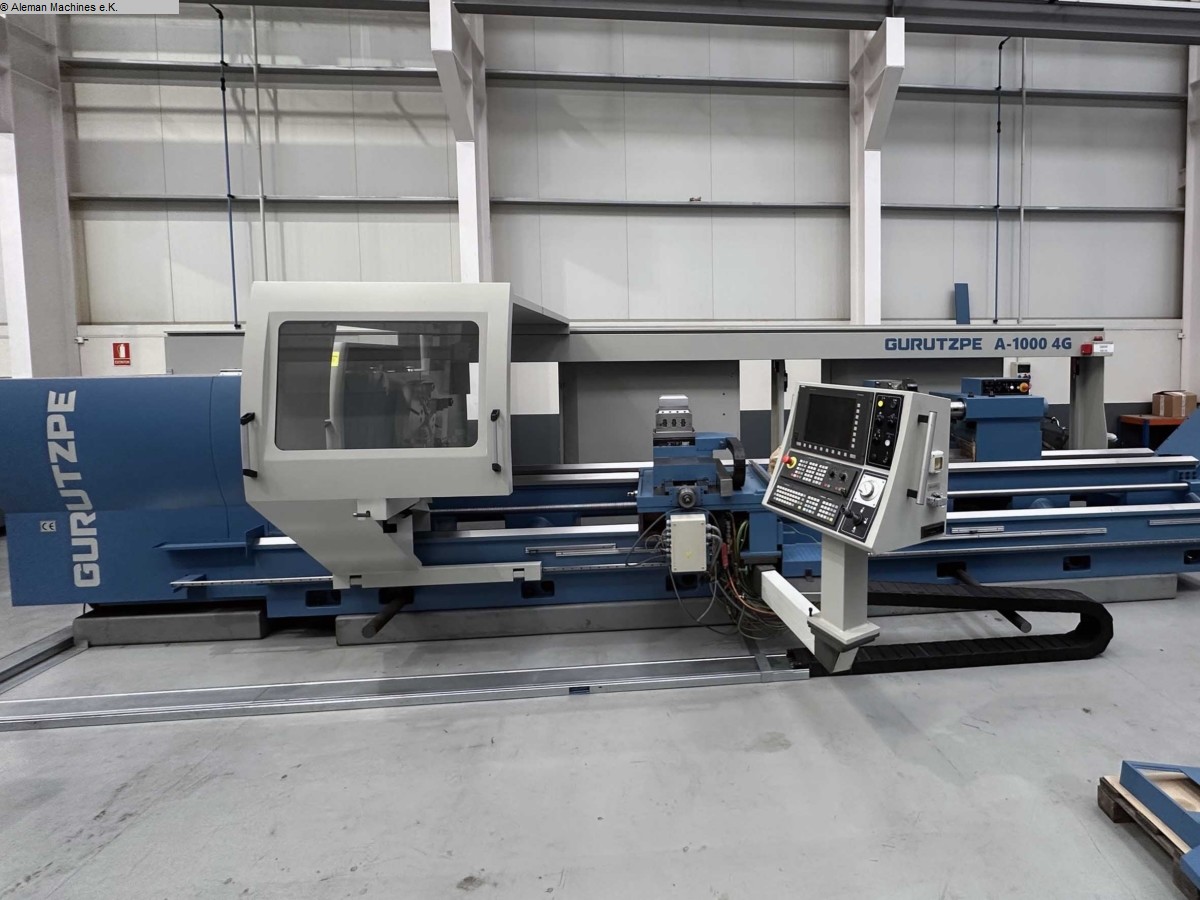

CNC Lathe GURUZTPE A-1000 4G X 5.000 |
|
| Stock-no. |
1120-486 |
| Categoria |
CNC Lathe |
| Fai |
GURUZTPE |
| Tipo |
A-1000 4G X 5.000 |
| Anne |
2003 |
| Controllo |
CNC SIEMENS SINUMERIK 840 D |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
Spain |
| Tempi di consegna |
immediately |
| Quotazione |
Free carrier |
| Technische Dettagli |
| greates pass round over bed |
900 mm |
| turning length |
5000 mm |
| control |
SIEMENS SINUMERIK 840 D |
| cross travel |
530 mm |
| swing diameter over slide transversal |
650 mm |
| bed width |
970 mm |
| feeds: |
X/Z Achse 10 m/min |
| turning speeds: |
0-600 U/min |
| forward bearing diameter |
140 mm |
| w-axis |
Mit Reitstock Inkl. |
| chip conveyor |
kW |
| total power requirement |
58 kW |
| weight of the machine ca. |
20 t |
| dimensions of the machine ca. |
11.2 x 2.9 x 2.2 m |
| Descrizione |
Optional Equipment Included in the Price

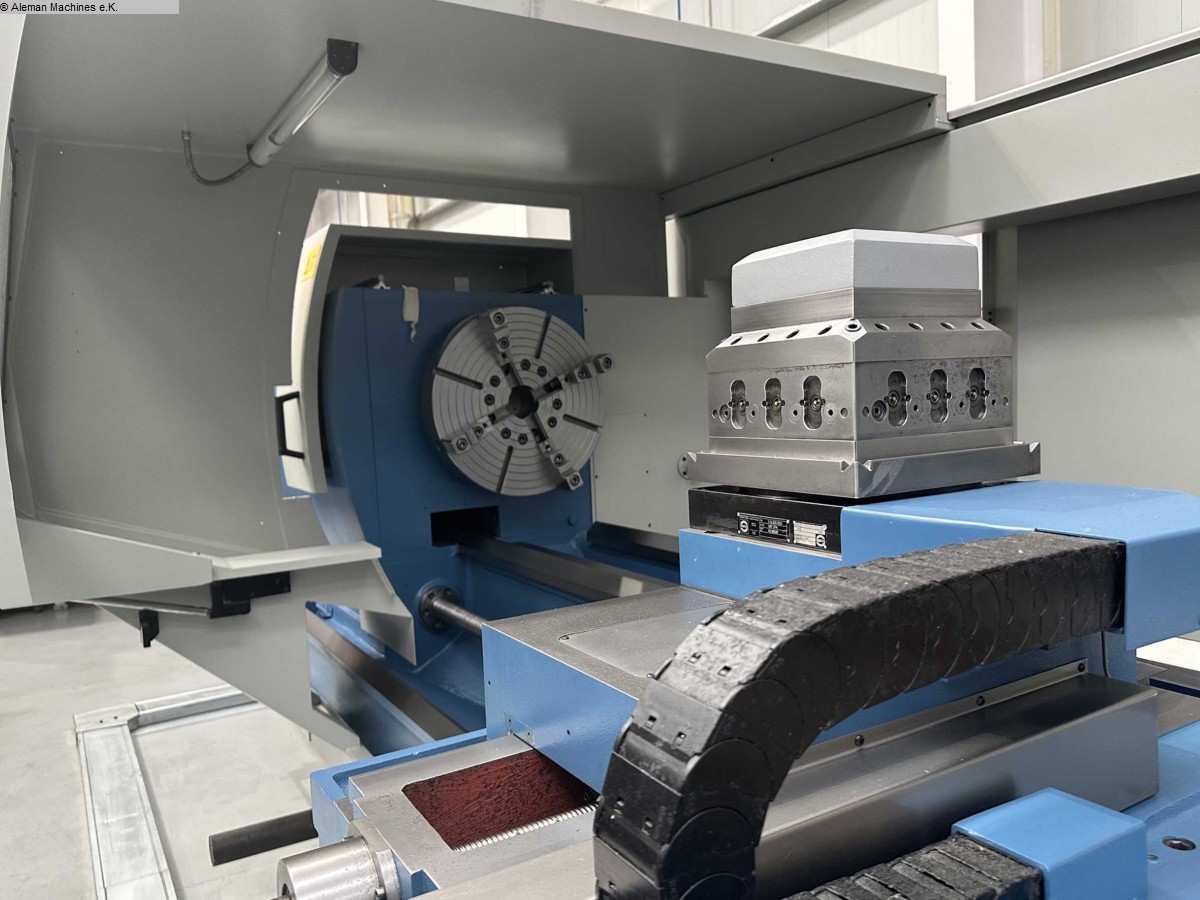

4-jaw independent chuck, Ø 600 mm
Hydraulic steady rest SHW Autoblock SLU-5-ZS, clamping range Ø 45 310 mm
Fixed steady rest, Type C, Ø 250 mm
V-axis with CNC-controlled longitudinal movement (Z-axis) for automatic
positioning of the SHW Autoblock steady rest

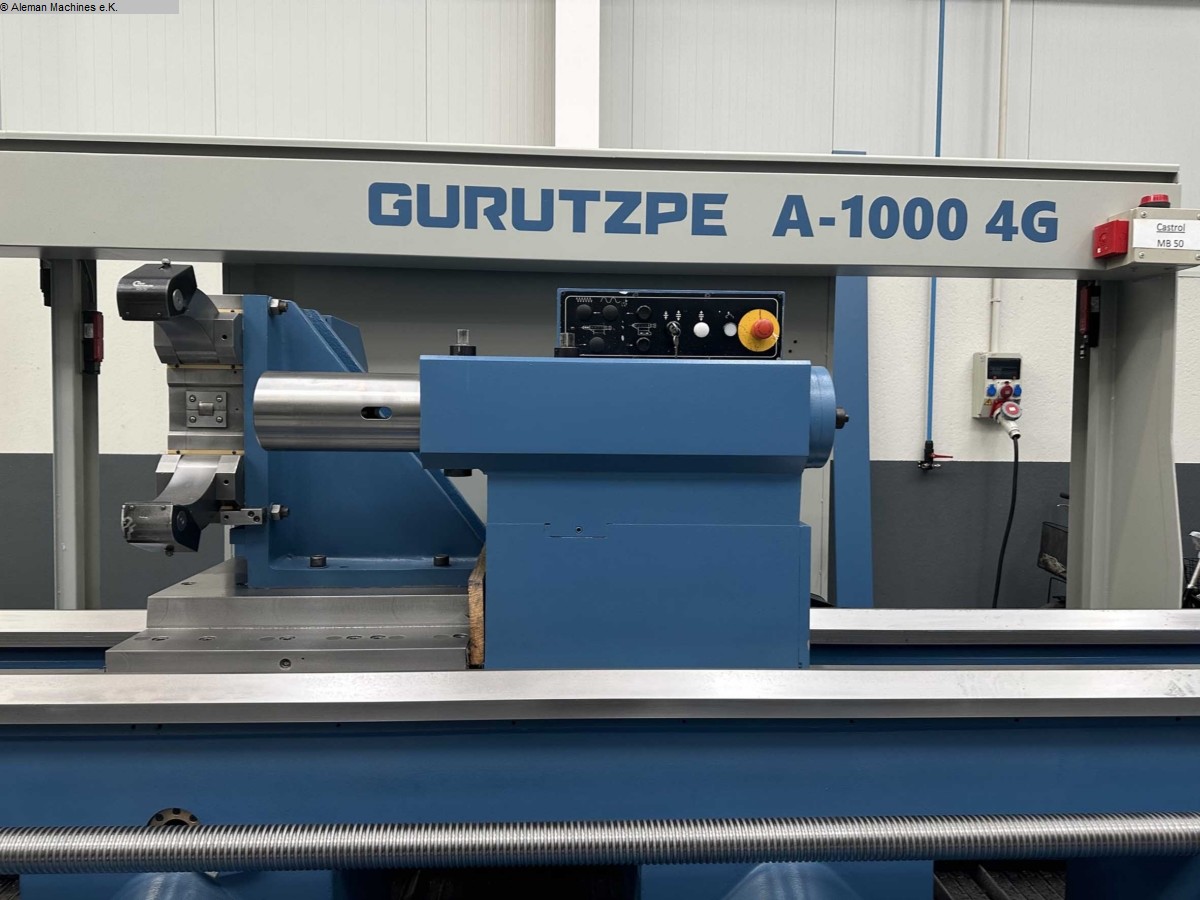

Headstock-type steady rest with 4-jaw independent chuck, Ø 500 mm, bar capacity
Ø 250 mm
Air conditioning unit in the electrical cabinet
Longitudinal chip conveyor
Boring bar holder / support
|
|
|
|
