Machining Center - Universal HERMLE C 400 V |
|
| Stock-no. |
1120-482 |
| Categoria |
Machining Center - Universal |
| Fai |
HERMLE |
| Tipo |
C 400 V |
| Anne |
2018 |
| Controllo |

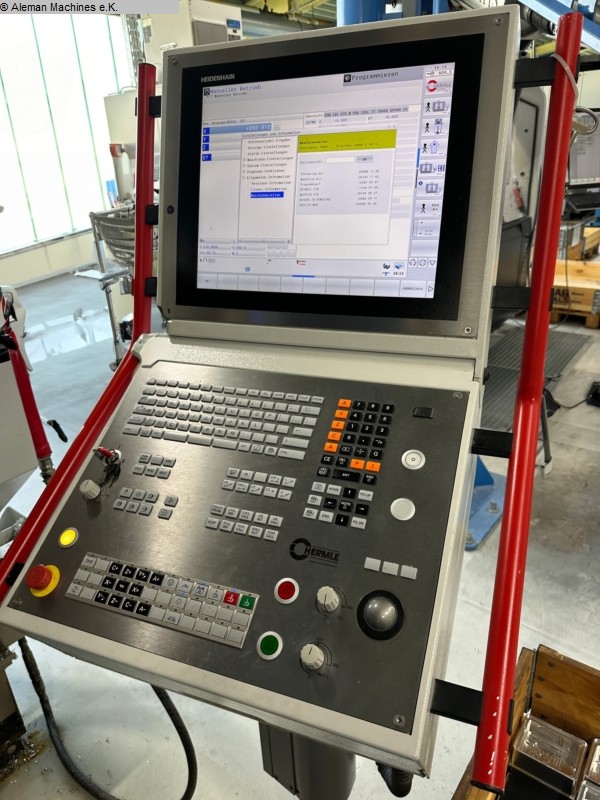

CNC Heidenhain TNC 640 |
| Luogo di stoccaggio |
Lager Sueddeutschland |
| Paese di origine |
Germany |
| Tempi di consegna |
immediately |
| Quotazione |
Free carrier |
| Technische Dettagli |
| x-travel |
850 mm |
| y-travel |
700 mm |
| z-travel |
500 mm |
| Control |
Heidenhain TNC 640 |
| spindle |
HSK A 63 kW |
| turning speeds |
15000 U/min |
| table-size |
1070x700 mm |
| Tools changer |
38 fach/tools |
| Machine on |
26.000 h |
| Spindle hours |
11.500 h |
| internal coolant system feed |
40 bar |

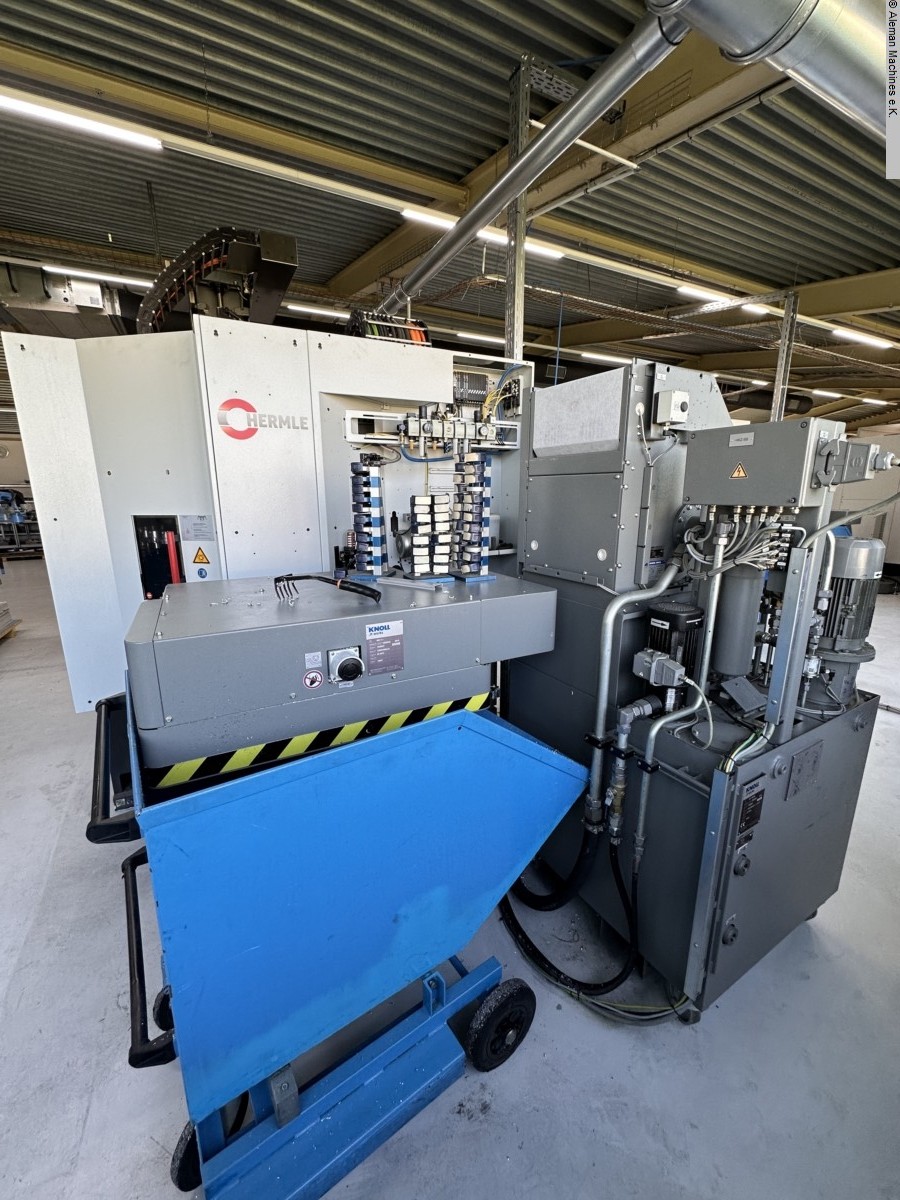

| Chip coveyor |
|
| total power requirement |
kW |
| weight of the machine ca. |
9,5 t |
| dimensions of the machine ca. |
m |
| Descrizione |

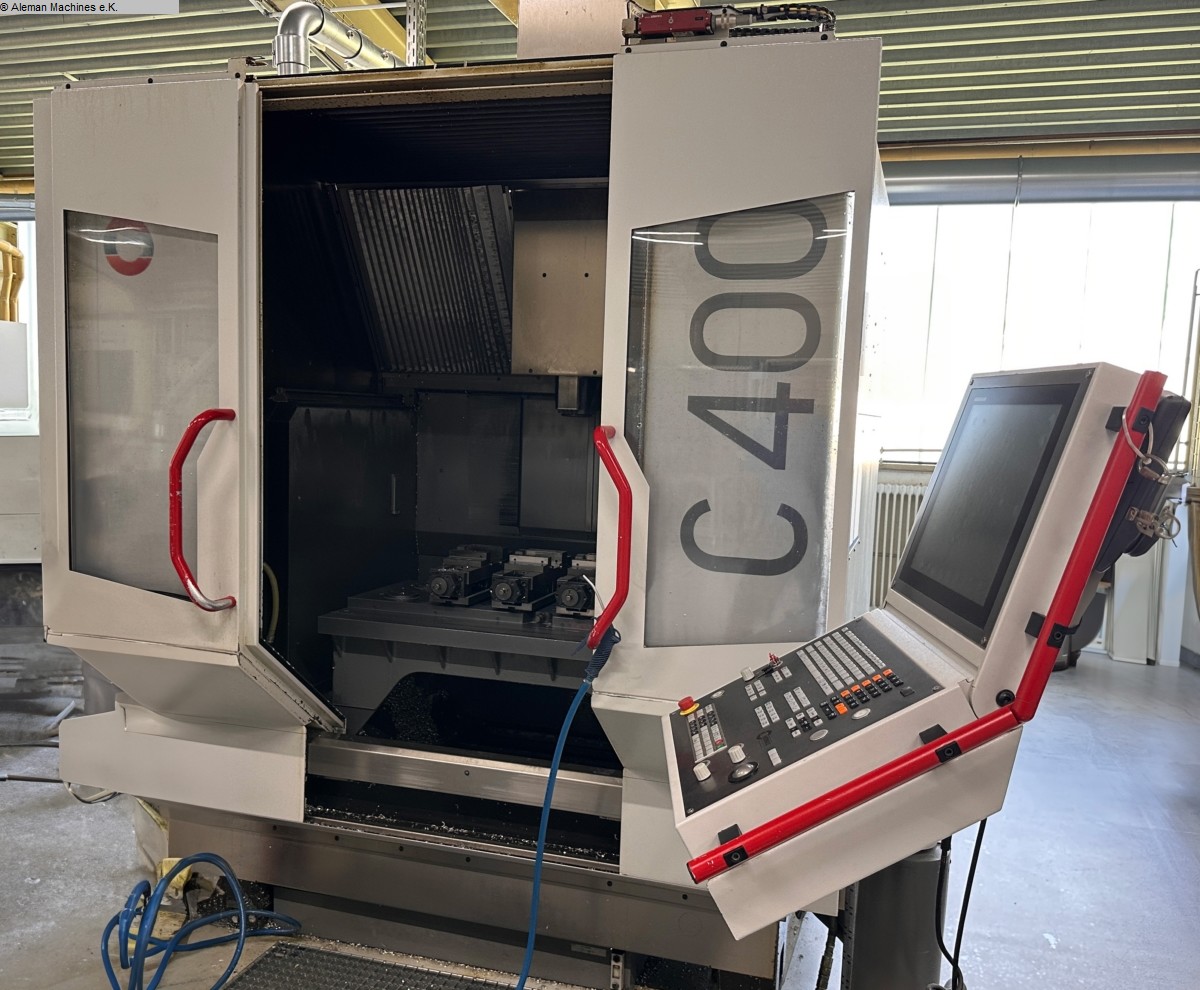

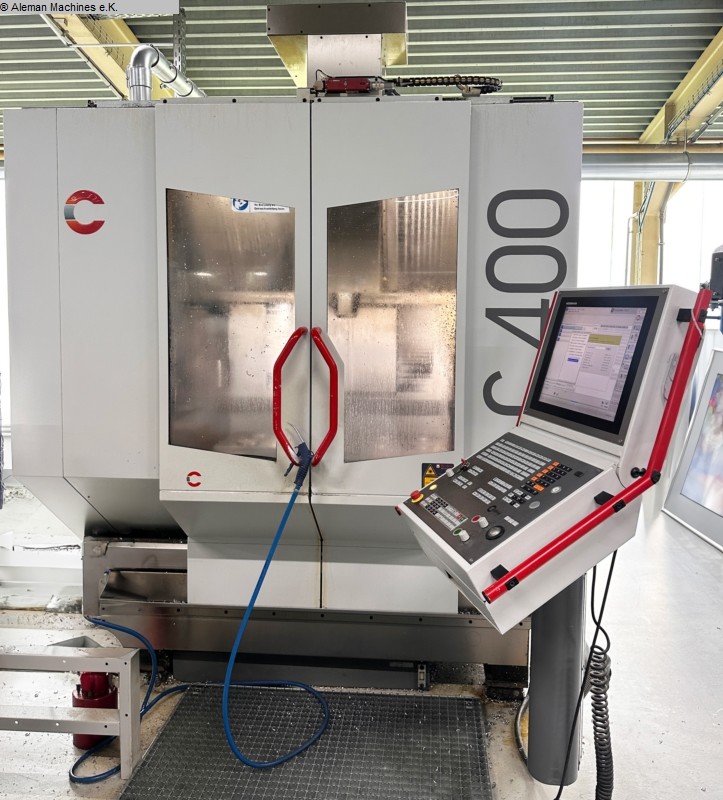

3-axis CNC machining center

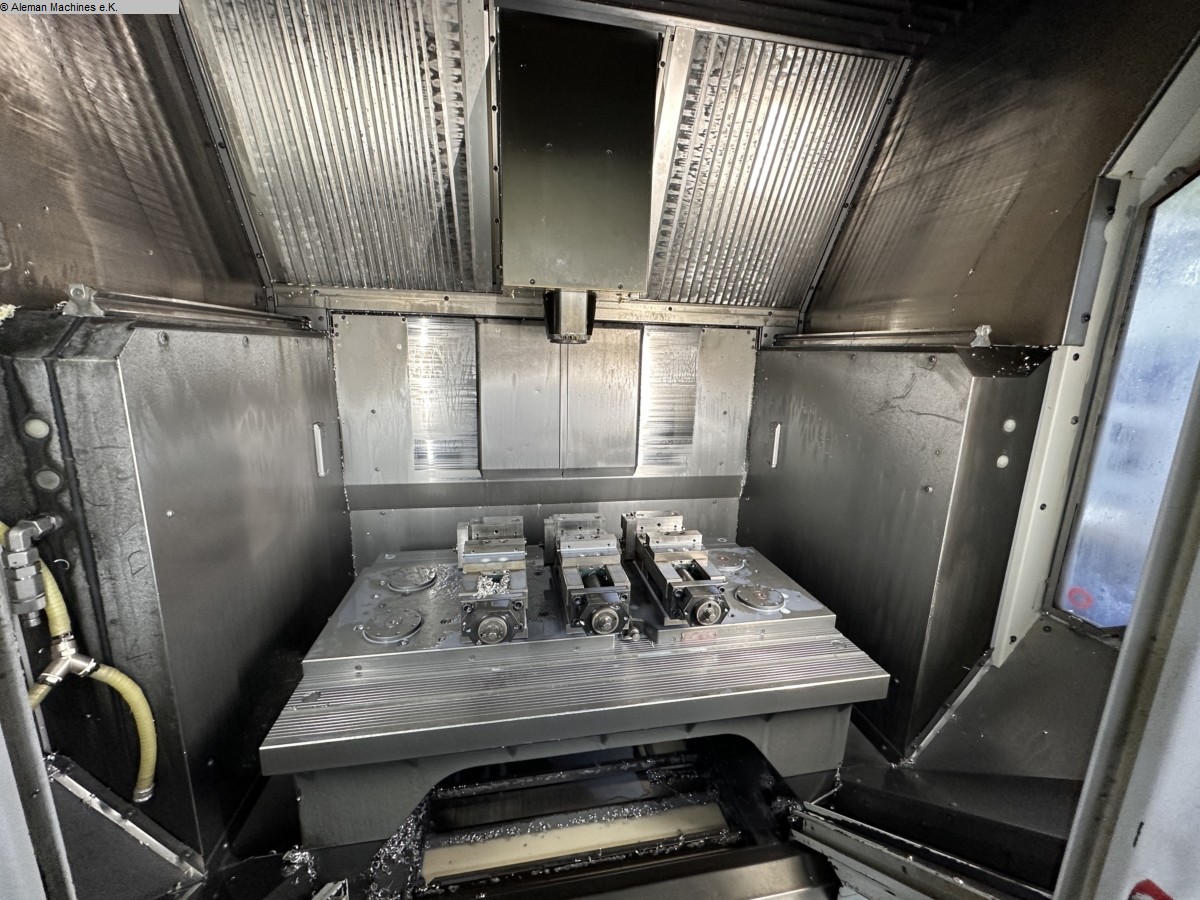

-Rigid clamping table 1070 x 700 mm
-coolant device,
-electr. heat compensation,
-electric manual control module,
-Measuring probe
-Tool breakage monitoring
-chip washing gun
|
|
|
|
