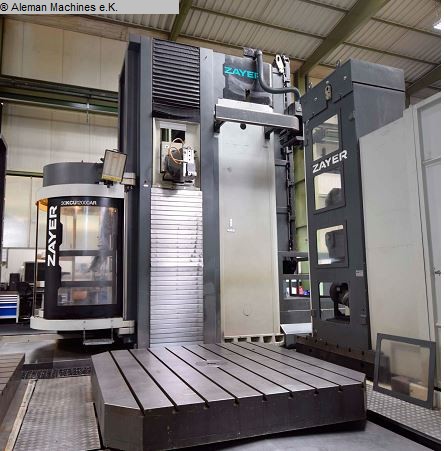

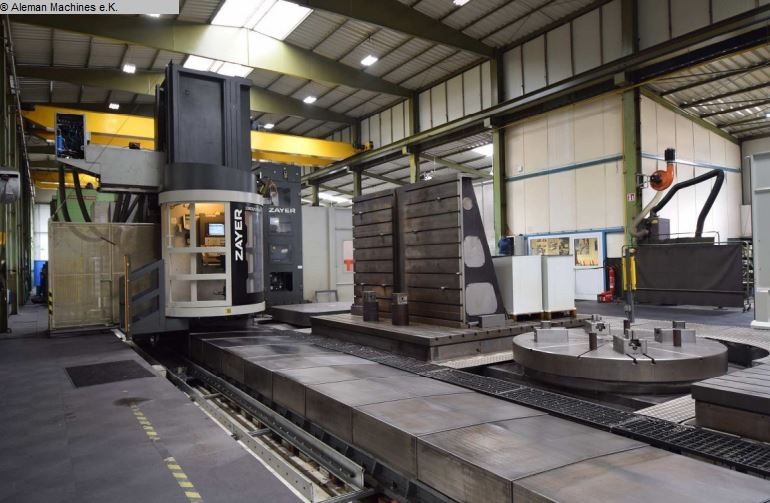

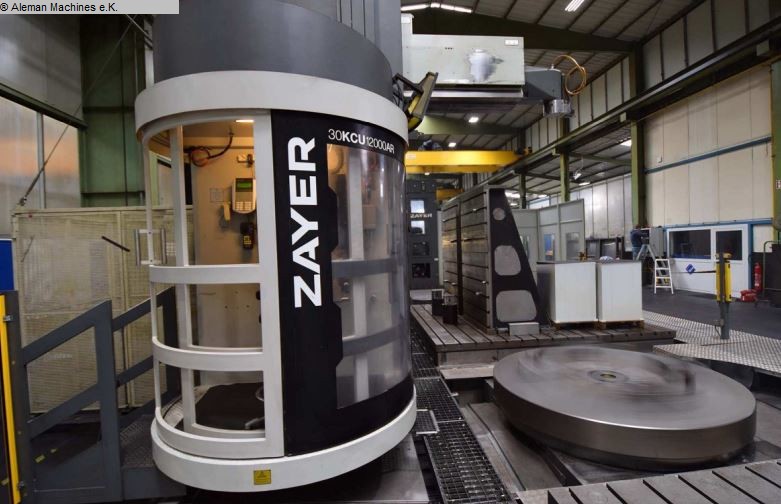

Bed Type Milling Machine - Universal ZAYER 30 KCU 12000 AR |
|
| Stock-no. |
1120-480 |
| Categoria |
Bed Type Milling Machine - Universal |
| Fai |
ZAYER |
| Tipo |
30 KCU 12000 AR |
| Anne |
2008 |
| Controllo |
CNC Siemens 840 Digital |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
Spain |
| Tempi di consegna |
immediately |
| Quotazione |
ex work |
| Technische Dettagli |
| x-travel |
12.000 mm |
| y-travel |
1.500 mm |
| z-travel |
3.500 mm |
| feed |
20.000 m/min |
| Tool adapter |
DIN 69871 A50/HSK63 |
| 0 |
35-6000 U/min |
| table weight |
30.000 Kg |
| Machine on |
26.658 h |
| Control |
Siemens 840 Digital |
| milling head |
automatischer Fräskop 45 Grad |
| Internal cooling system |
60 bar |
| coolant |
JUMA+GAIN mit 200 L |
| Chip coveyor |
Inkl. |
| tool change unit |
80 pos. |
| total power requirement |
209 kW |
| weight of the machine ca. |
75 t |
| dimensions of the machine ca. |
m |
| Descrizione |

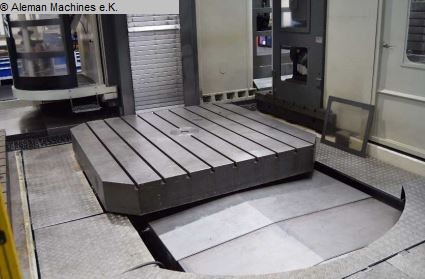

- ROTARY TABLE with LINEAR TRANSLATIONE mod. ZA/B-2000
Table Longitudinal Traverse (W) 2.0000 mm.
Table Rotation (B) 0,001 º
Table Surface 2.500 x 2.500 mm.
Max. Speed 10.000 mm/min.
Hydrostatic System INCLUDED
Table Load Capacity (Max) 30.000 Kg.

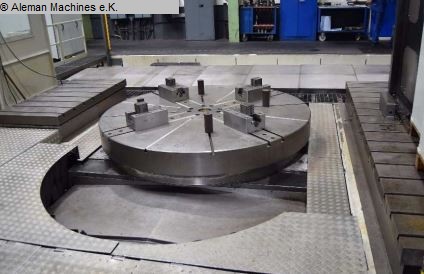

- TURNING AND MILLING TABLE BOST Ø 2500mm
Chuck Size Ø 2.500 mm.
Longitudinal Travel of the Chuck 1.500 mm.
Table Load Capacity (Max) 25 T.
Spindle Motor Power 2 x 37 kW
Turning Speed (Max) 200 rpm.
Milling Power (Max) 55 kW.
Axis (Turning Milling) INCLUDED
Linear Traverse Rate 15.000 mm/mi
- 45º Automatic Head, 6000 rpm with positioning of 0.001º/0.001º (DIN 69871
A50)
Twist Head (5 Axis), 18.000 rpm, 23 kW DIN69893 HSK A63
Direct Outlet Head, 6000 rpm, DIN 69871 A50
Extended Head 500 mm, 2000 rpm
DIN 69871 A50
Head type Clamping Tools for Turning with clamping systems Capto 6
Automatic Change of Heads (AHC)

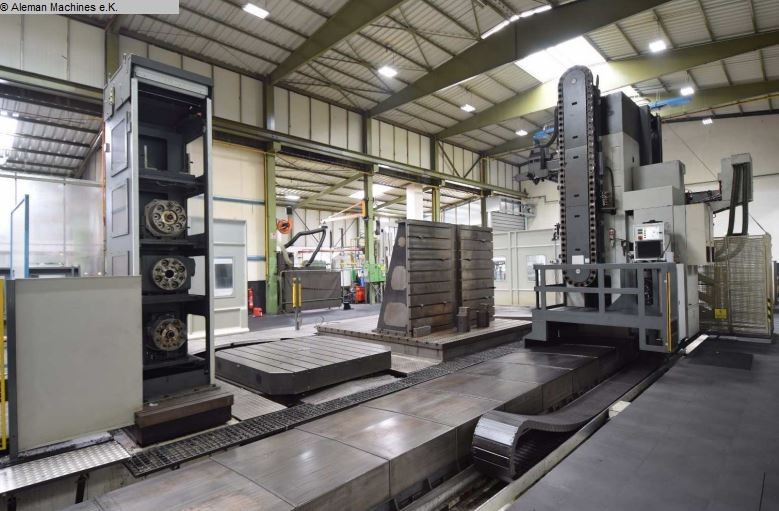

Pick Up Station AITEK ACH for automatic change of 4 Heads
|
|
|
|
