| Stock-no. |
1120-476 |
| Categoria |
Milling Machining Centers 5 Axis |
| Fai |
DMG-MORI |
| Tipo |

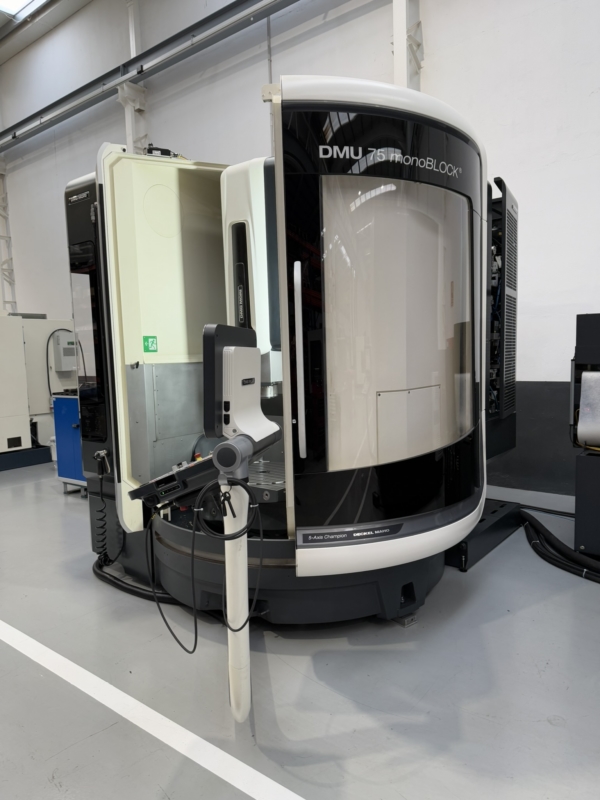

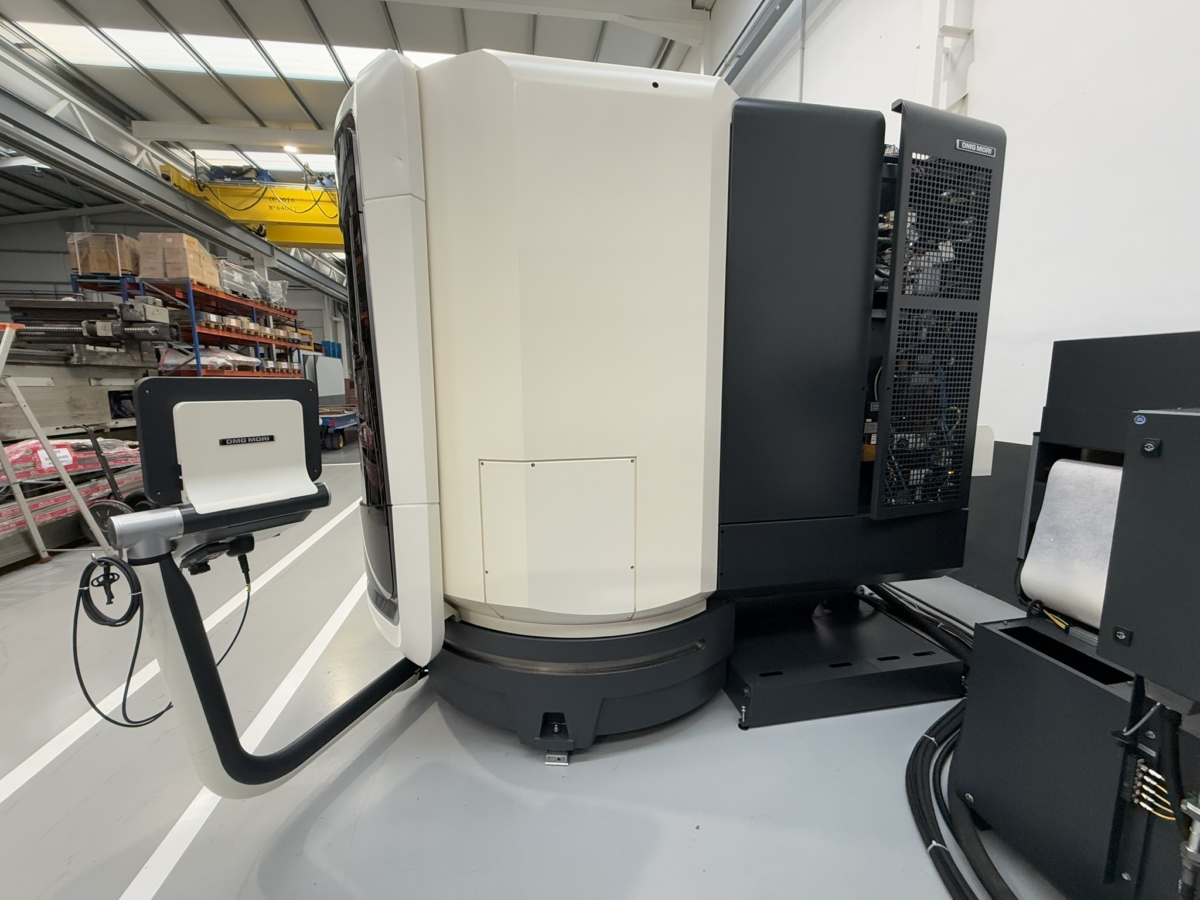

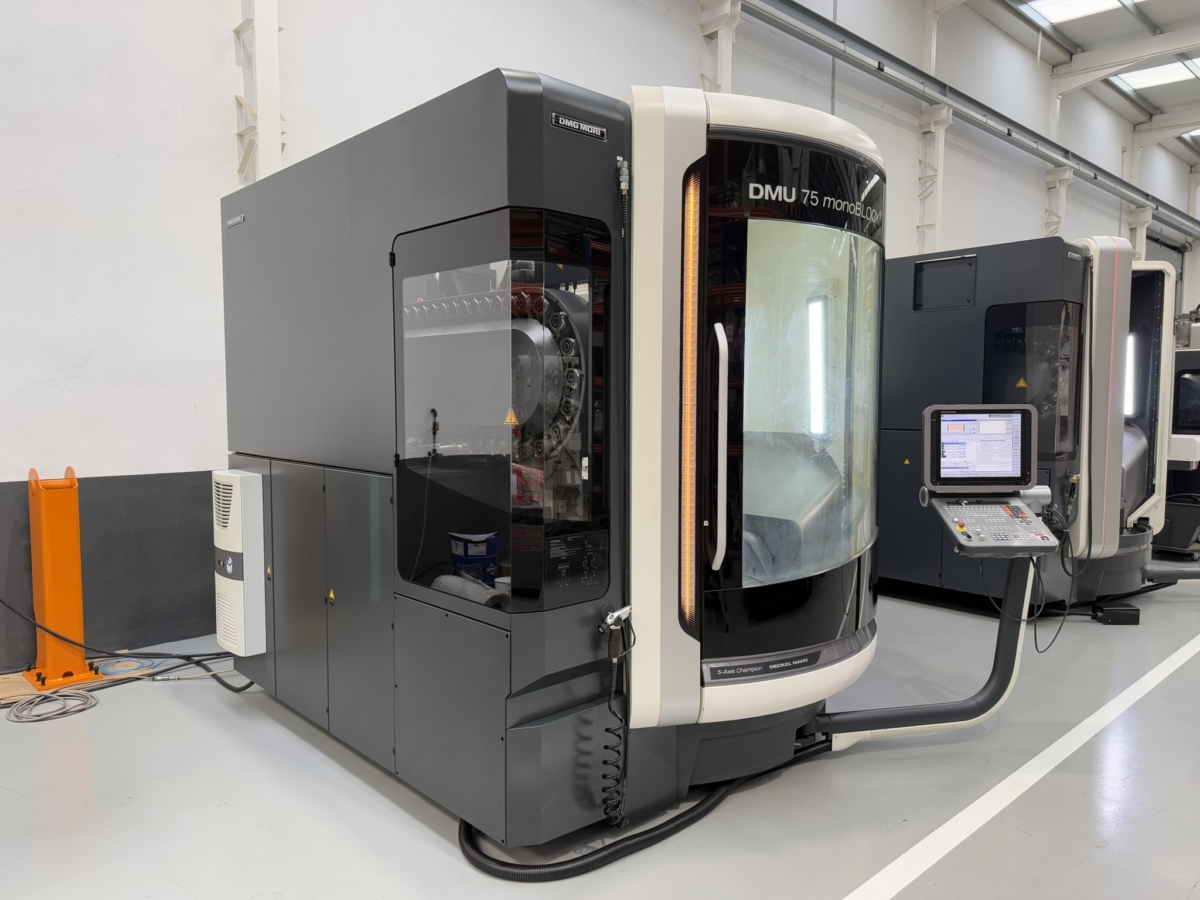

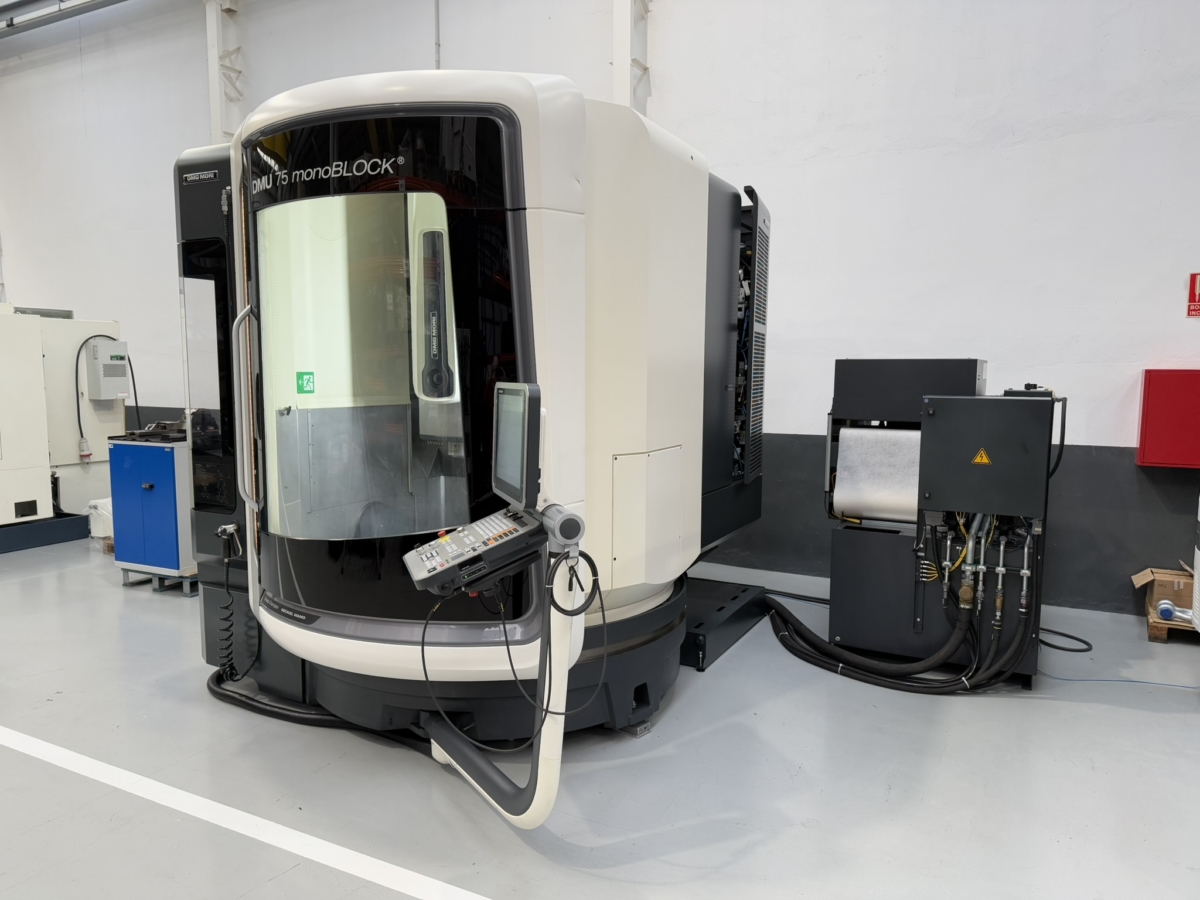

DMU 75 monoBLOCK |
| Anne |
2017 |
| Controllo |

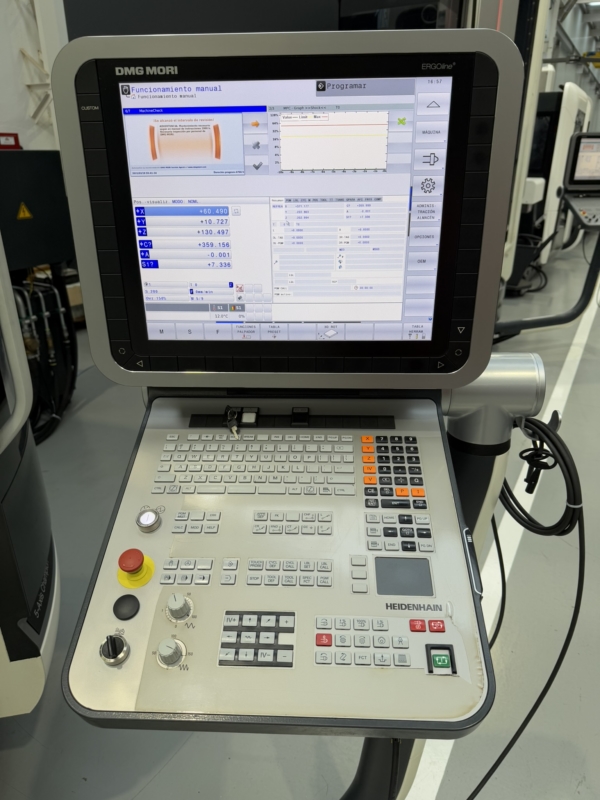

CNC 3D HEIDENHAIN TNC 640 |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
Germany |
| Tempi di consegna |
immediately |
| Quotazione |
Free carrier |
| Technische Dettagli |
| x-travel |
750 mm |
| y-travel |
650 mm |
| z-travel |
560 mm |
| Control |
3D HEIDENHAIN TNC 640 |
| table-size |
800x650 mm |

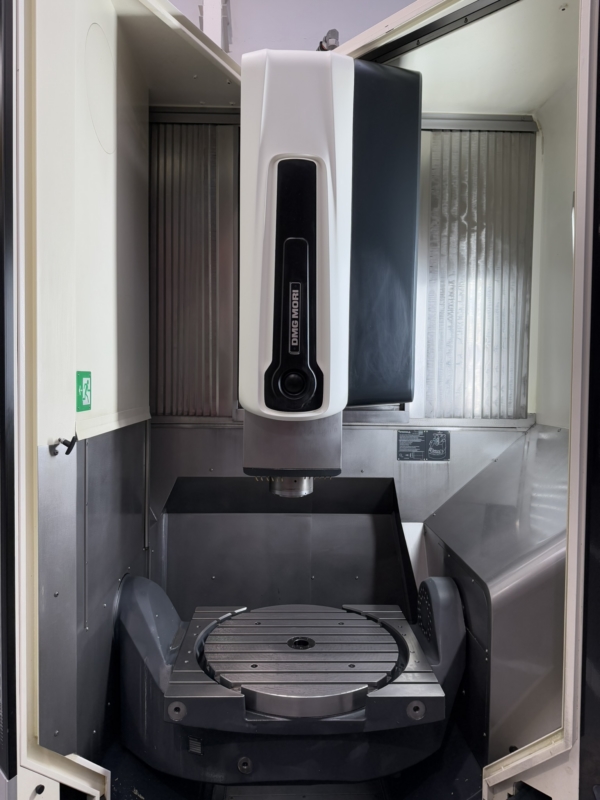

| rotary table |
650 mm |
| table weight |
600 Kg |
| c-axis |
0,001(+/-360) ° |
| b-axis |
-120+120 ° |
| Tool diameter |
840 mm |
| toolpiece height max. |
500 mm |
| rapid taverse |
40.000 mm |
| turning speeds |
20.000 U/min |
| Tool adapter |
HSK-A63 |
| Torque |
130/86 0 |
| engine output |
35 kW |
| Internal cooling system |
40 bar |
| Machine on |
26.972 |
| Spindle hours |
11.412 h |
| total power requirement |
49 kW |
| weight of the machine ca. |
11.600 kg |
| dimensions of the machine ca. |
m |
| Descrizione |

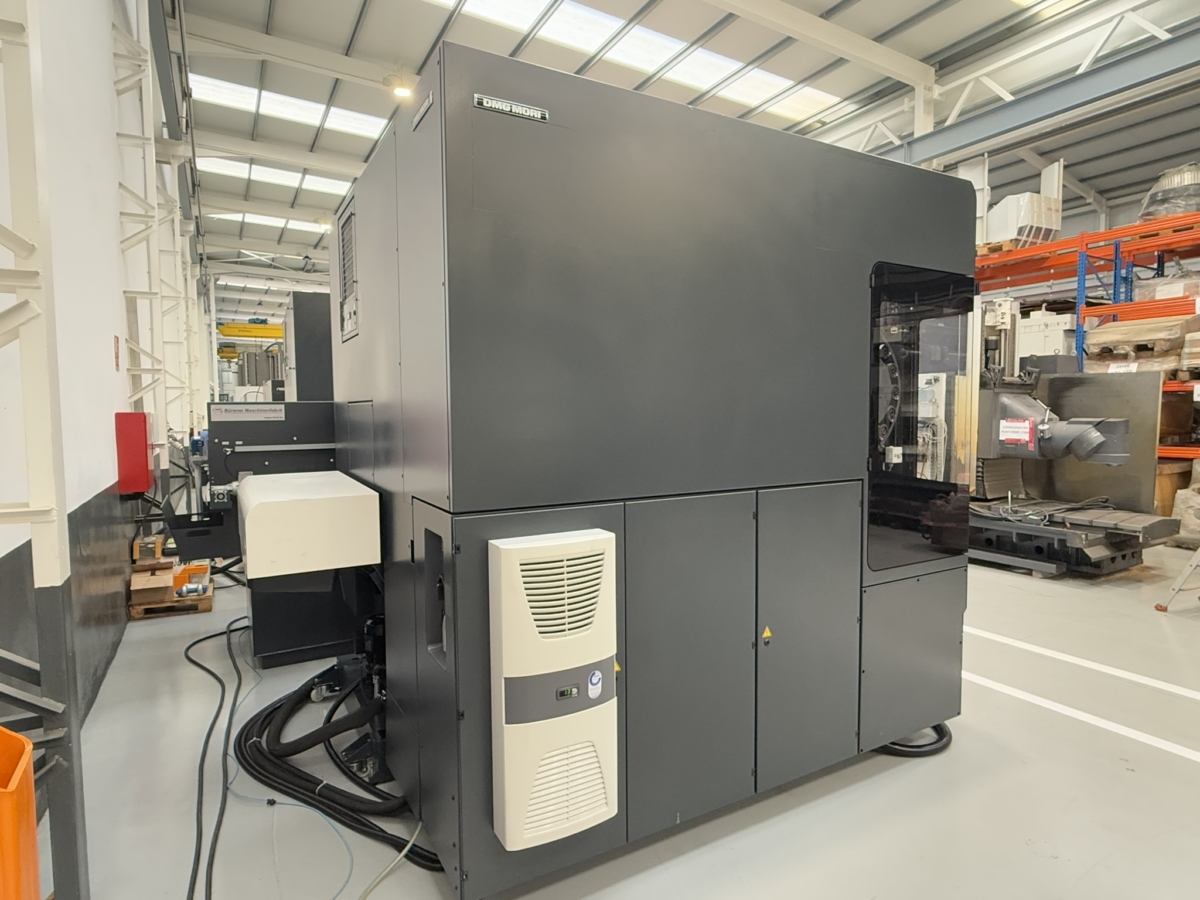

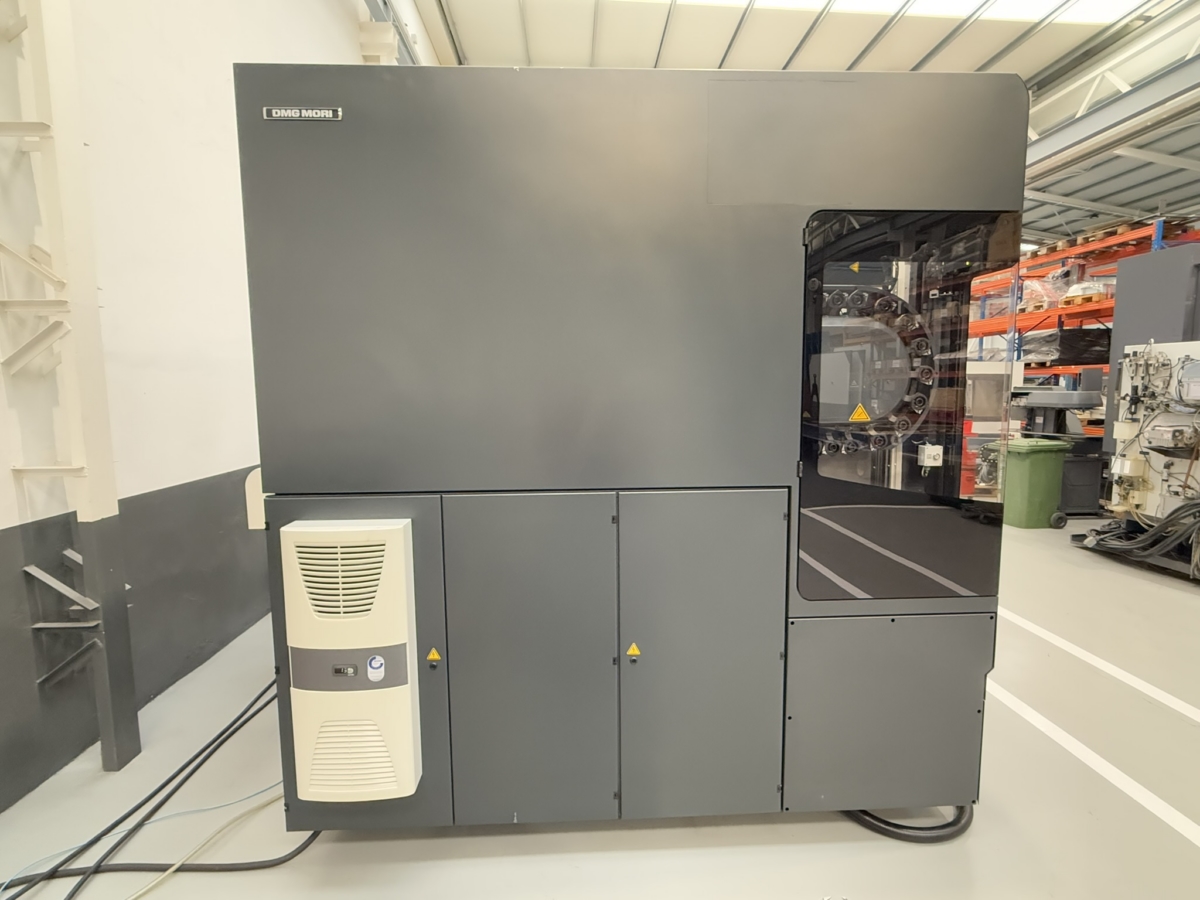

-Tool charger
-No. Positions in the tool charger 60

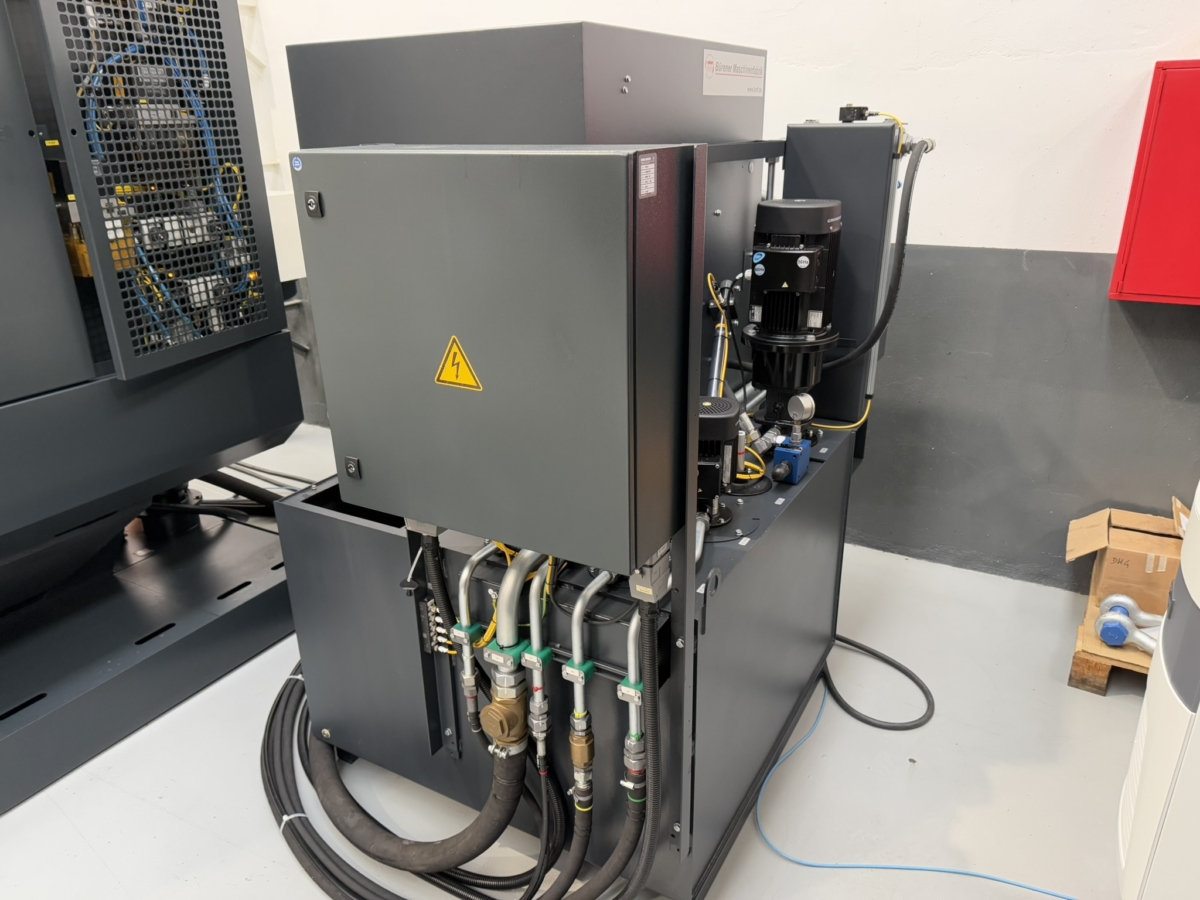

-Tank with 500l paper filter
-Active refrigerator cabinet
-Infrared measuring probe Heidenhain piece
-Blum laser probe measuring device
-chip extractor
-Cleaning gun with 2 bar 40 l/min pump
-3D quick set
-HEIDENHAIN HR-510 Portable Steering Wheel
|
