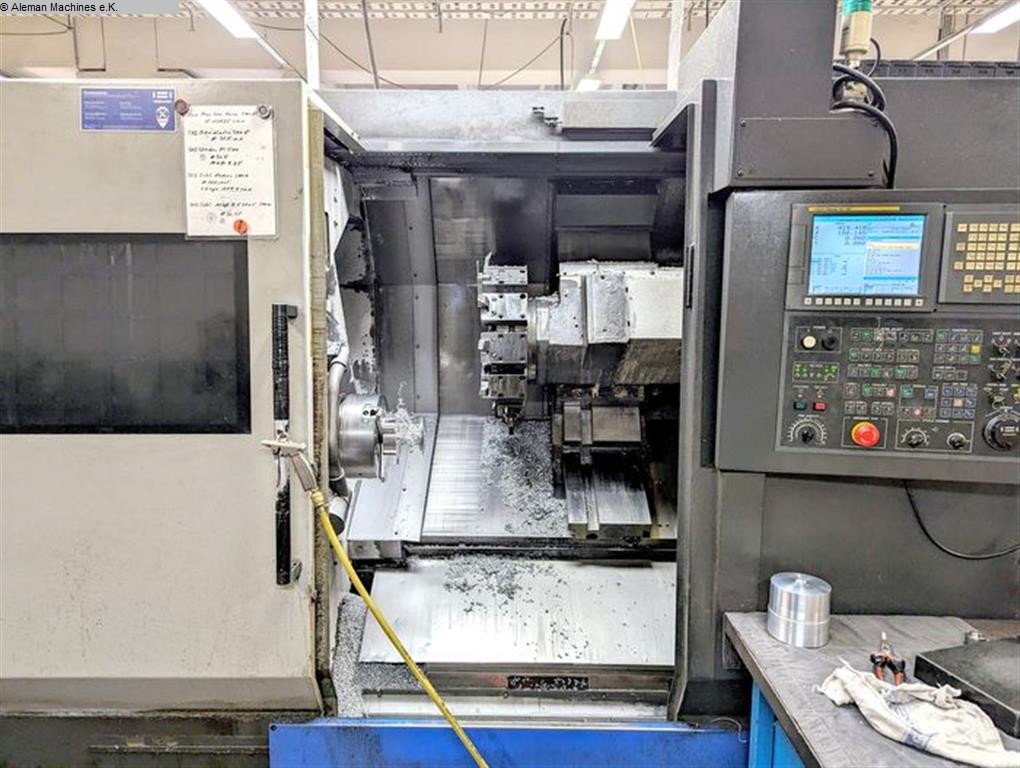

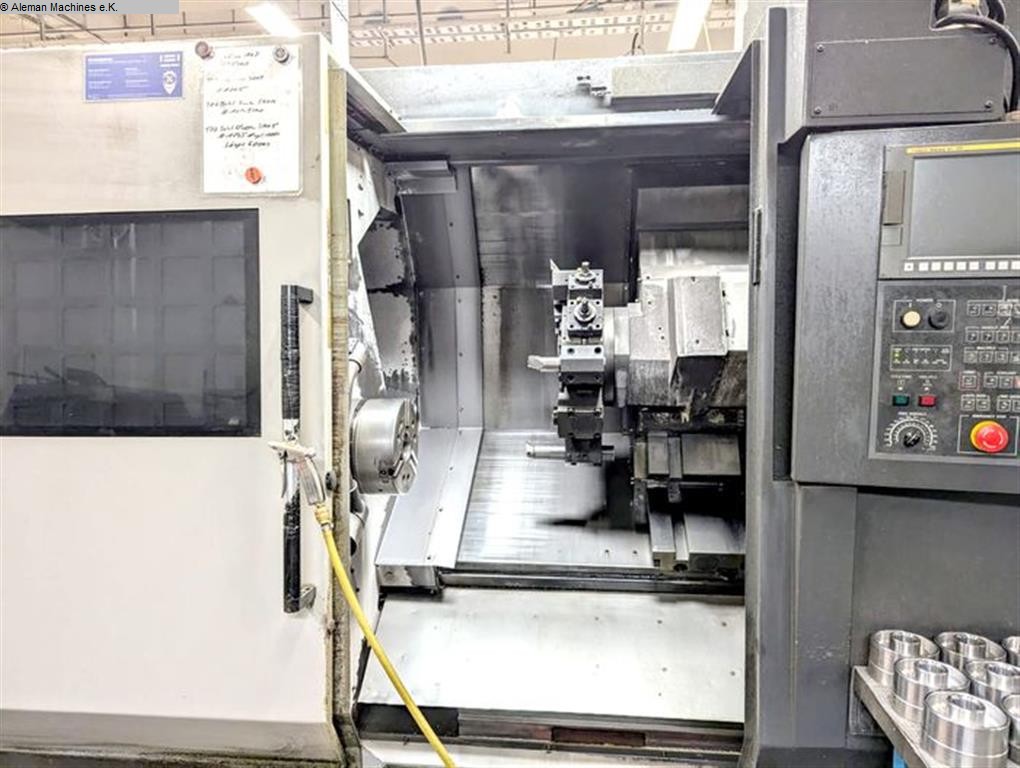

CNC Lathe HWACHEON HI TECH 450 AL YMC |
|
| Stock-no. |
1120-475 |
| Categoria |
CNC Lathe |
| Fai |
HWACHEON |
| Tipo |
HI TECH 450 AL YMC |
| Anne |
2012 |
| Controllo |

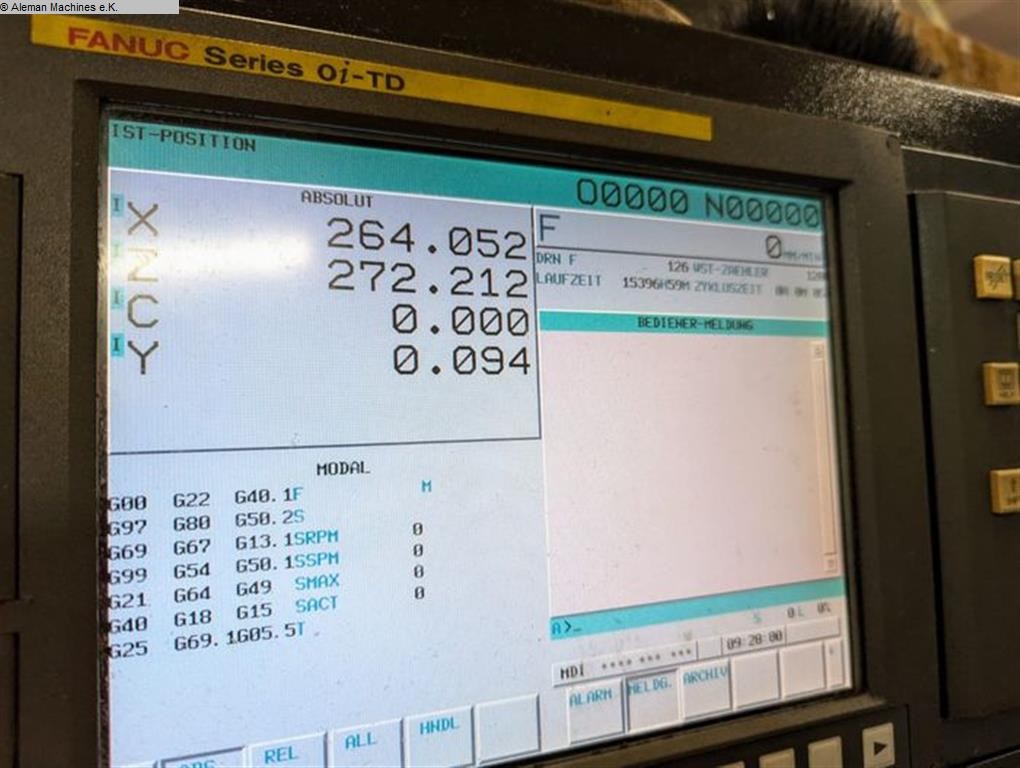

CNC FANUC 0i-TD |
| Luogo di stoccaggio |
Deutschland |
| Paese di origine |
KOREA |
| Tempi di consegna |
immediately |
| Quotazione |
ex work |
| Technische Dettagli |
| turning diameter |
420 mm |
| turning length |
1230 mm |
| control |
FANUC 0i-TD |
| greates pass round over bed |
700 mm |
| swing diameter over bed slide |
550 mm |
| Distance between center |
1390 mm |
| y-axis |
+/-60 mm |
| turning speeds |
3500 U/min |
| turret (x-stations) |
12 |
| 0 |
22/18,5 kW |

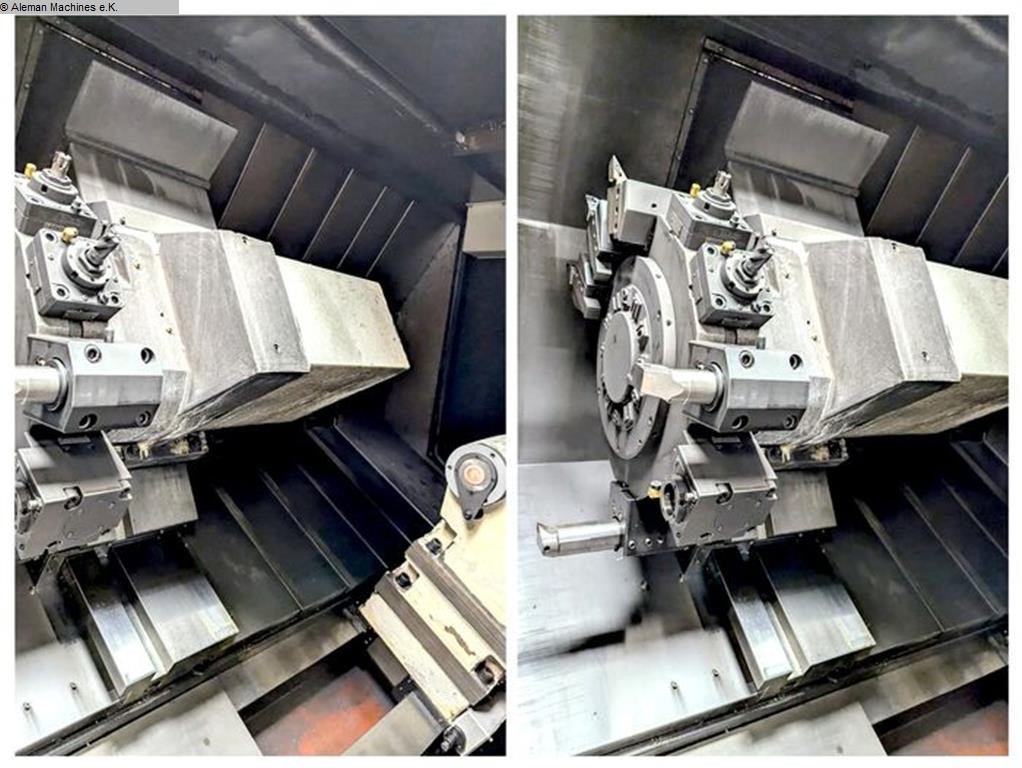

| Turret |
1 / 12 x BMT |
| rapid traverse x + z axis |
20/24 m/min |
| hollow clamping cylinder |
76 mm |
| Number of working hours |
15.500 h |
| Chip coveyor |
|
| total power requirement |
50 kW |
| weight of the machine ca. |
7,8 t |
| dimensions of the machine ca. |
4,10 x 2,05 x 2,21 m |
| Descrizione |
CNC lathe with Y-axis and driven tools,
-C axis,
-tool eye

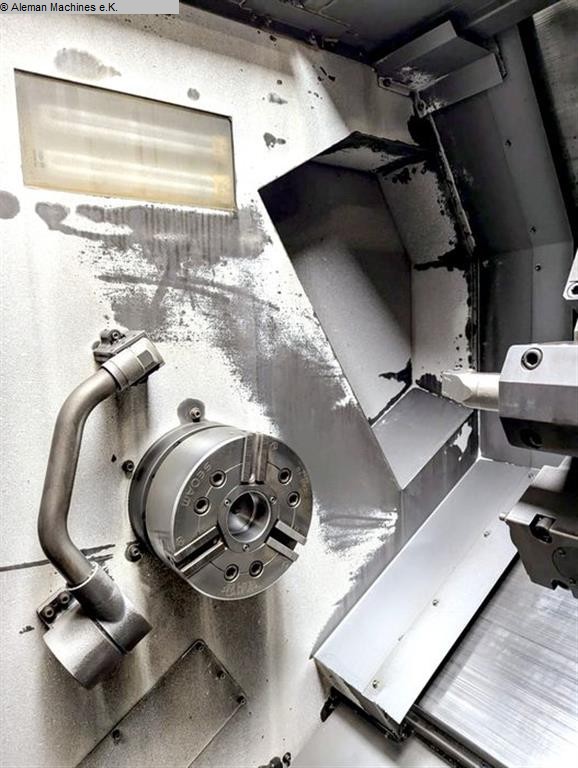

-Hydraulic chuck D = 250 mm,
-reinforced coolant pump 15bar,
-clamping cylinder with clamping pressure compensation,
-2-stage clamping pressure,
-Base plate for mounting a bezel,

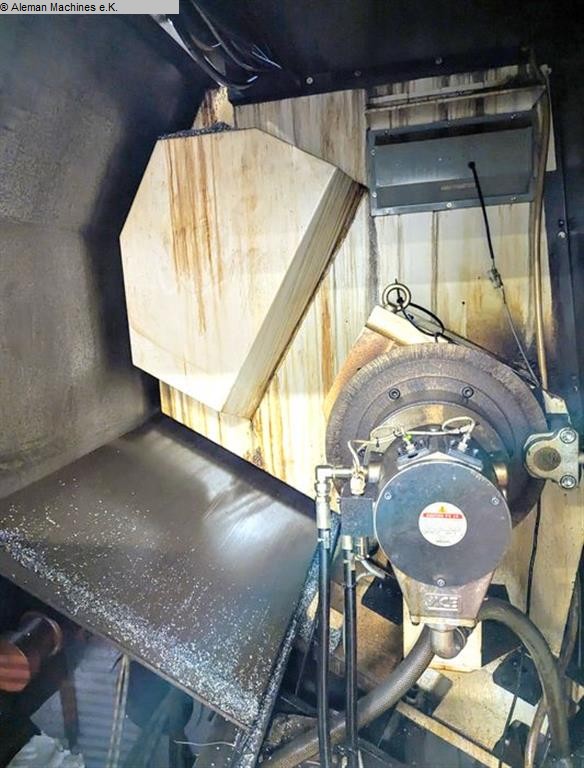

-progr. Tailstock with towing device,
-driven tools 3.7 kW, speed 3,000 1/min,
-1 powered tool is included
|
|
|
|
