| Stock-no. |
1120-473 |
| Categoria |
Milling Machining Centers 5 Axis |
| Fai |
DMG |
| Tipo |

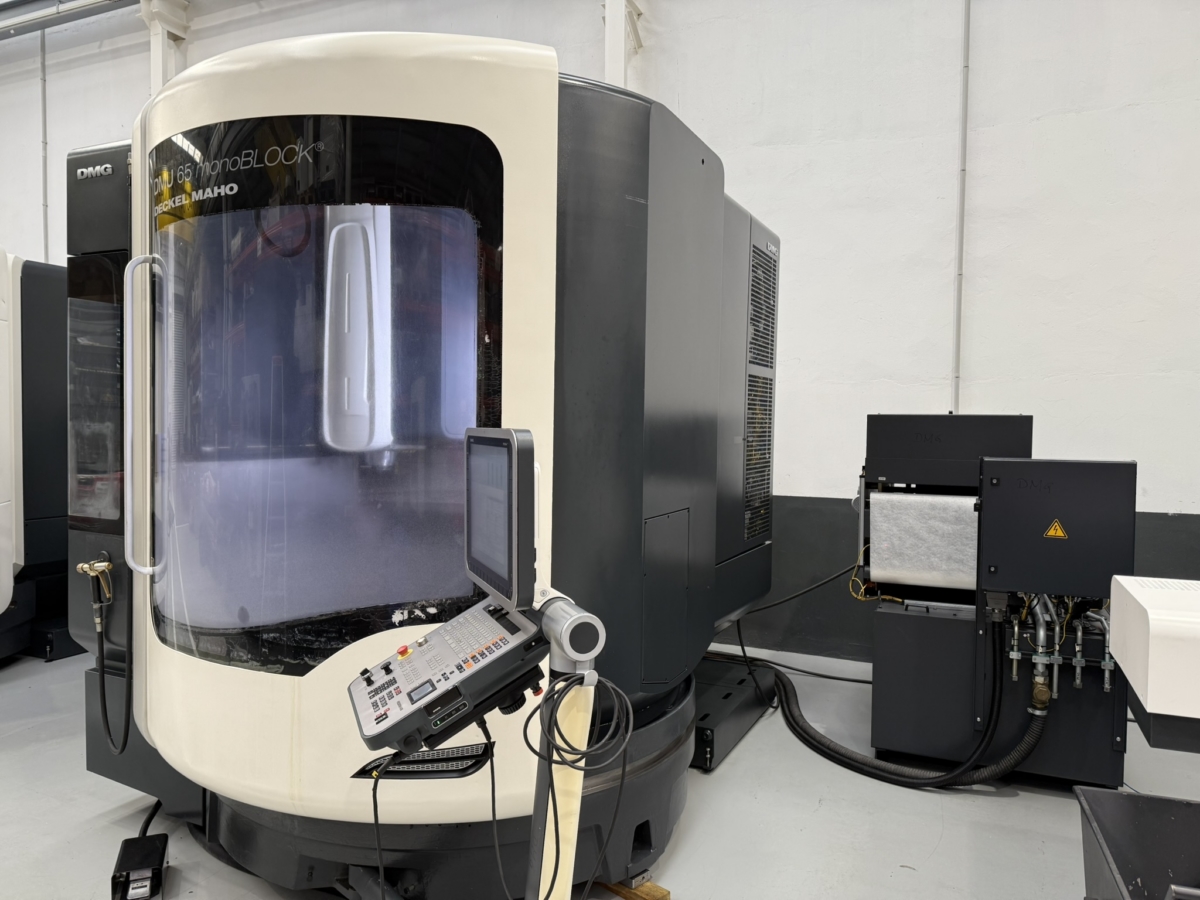

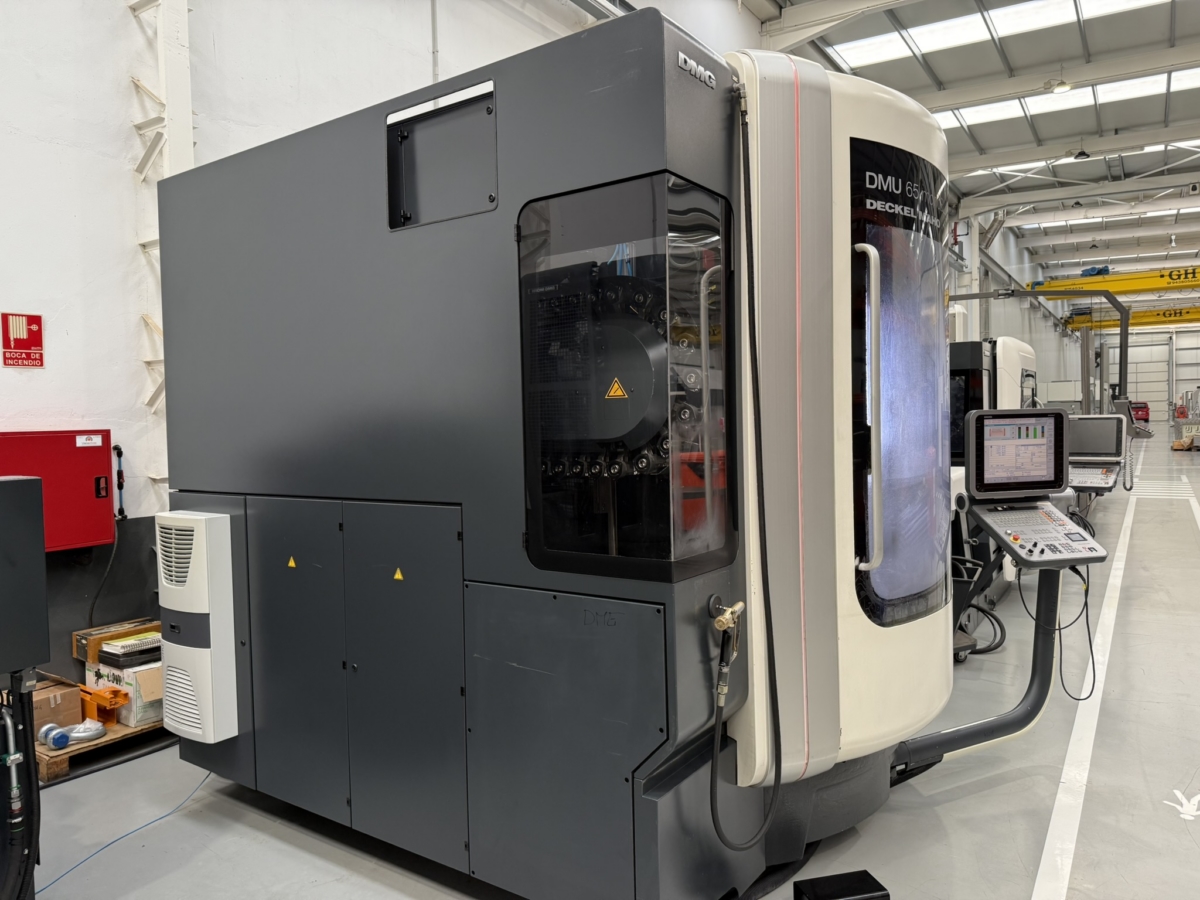

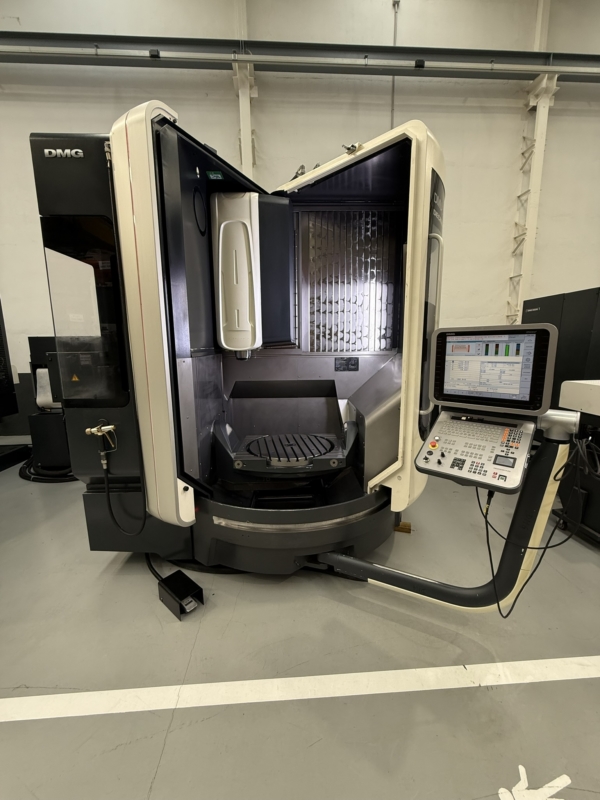

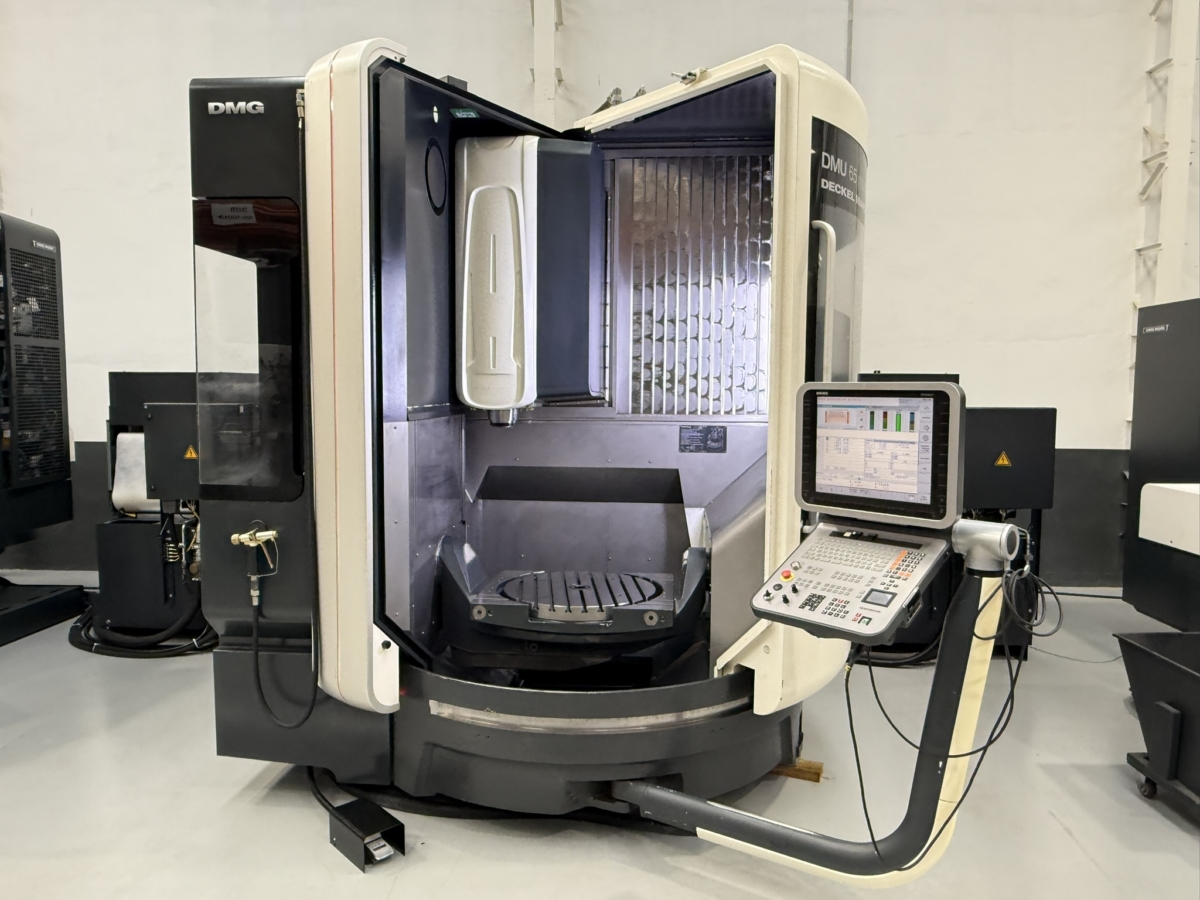

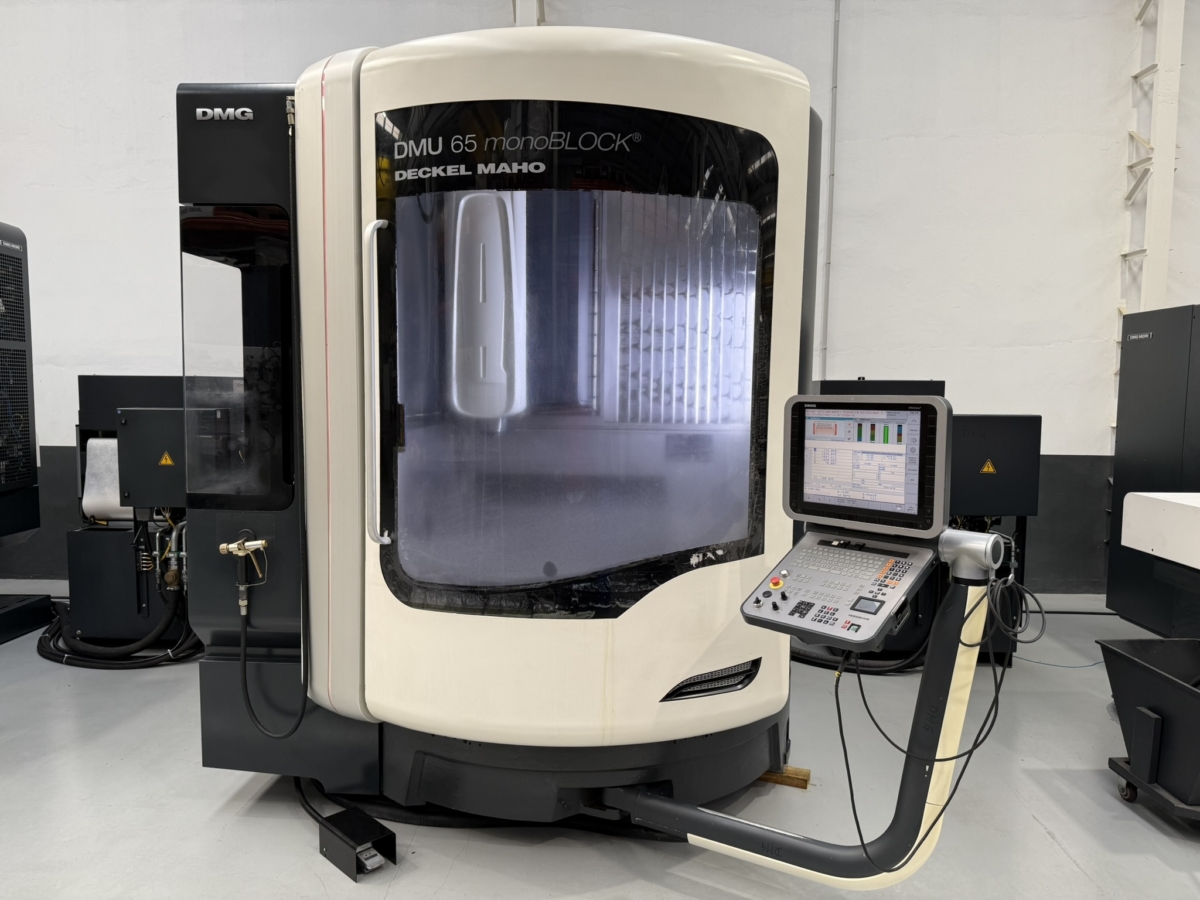

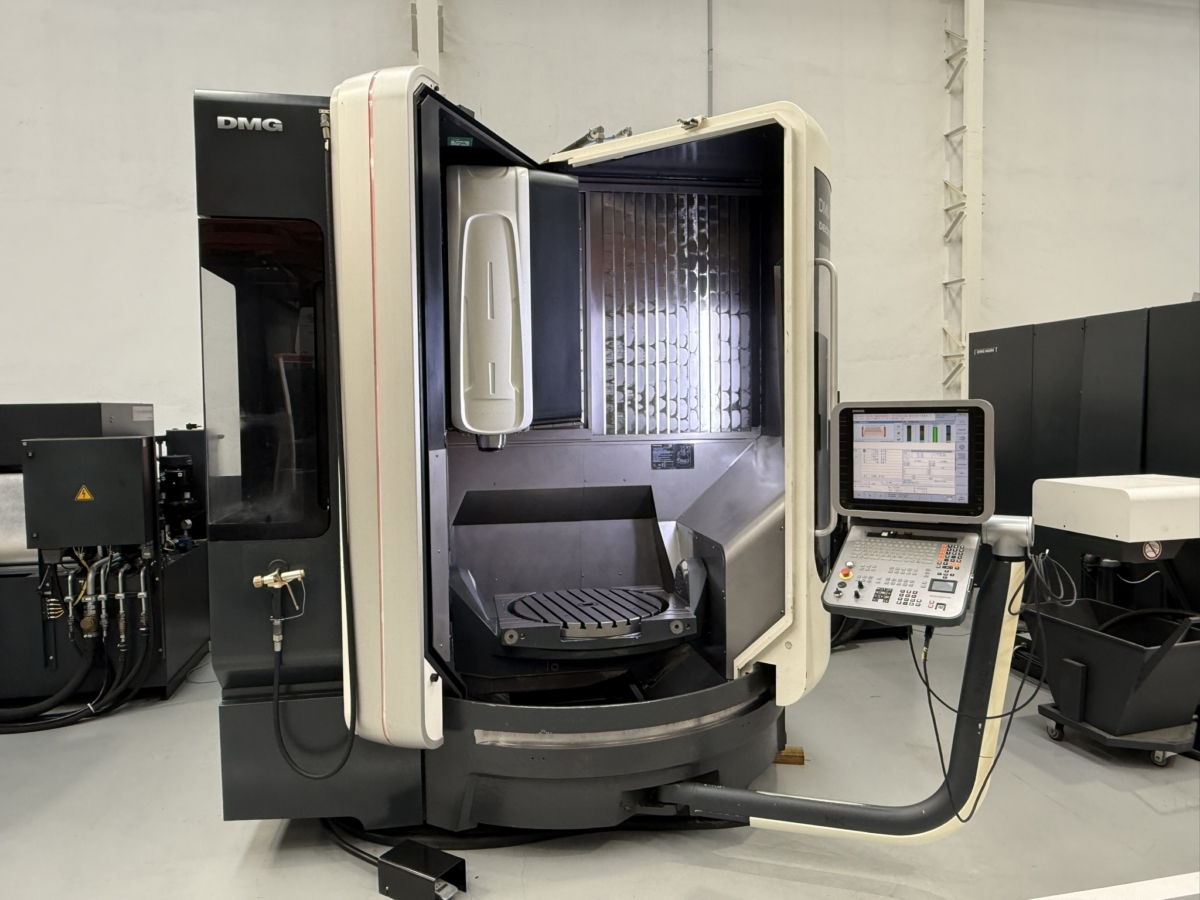

DMU 65 monoBLOCK |
| Anne |
2012 |
| Controllo |
CNC HEIDENHAIN TNC 530 3D |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
Germany |
| Tempi di consegna |
immediately |
| Quotazione |
Free carrier |
| Technische Dettagli |
| x-travel |
735 mm |
| y-travel |
650 mm |
| z-travel |
560 mm |
| Control |
HEIDENHAIN TNC 530 3D |
| table-size |
800 x 650 mm |
| rotary table |
650 mm |
| table weight |
600 Kg |
| table rotation |
(C-Achse) 0,001º (±360º) ° |
| b-axis |
(B-Achse) -120 +120º ° |
| workpiece dia. |
840 mm |
| workpiece height max. |
500 mm |
| rapid taverse |
40.000 mm/min |
| feed |
40.000 mm/min |
| taper |
HSK-A63 |
| engine output |
24 kW |
| turning speeds |
24.000 U/min |
| Tools place |
60 fach |
| Internal cooling system |
40 bar |
| Machine on |
28.008 |
| Program on |
13.900 h |
| total power requirement |
39 kW |
| weight of the machine ca. |
9.100 kg |
| dimensions of the machine ca. |
m |
| Descrizione |

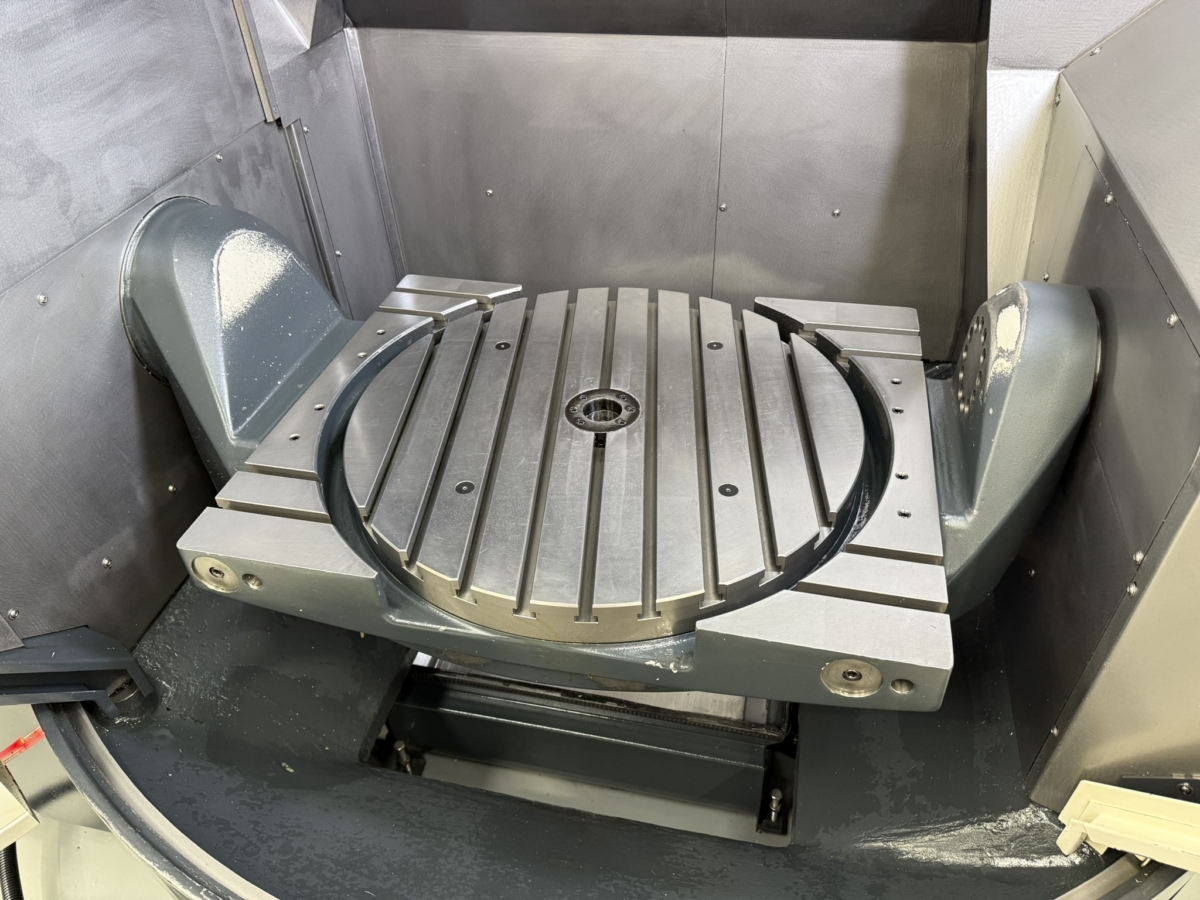

-Round table
-Direct measurement system

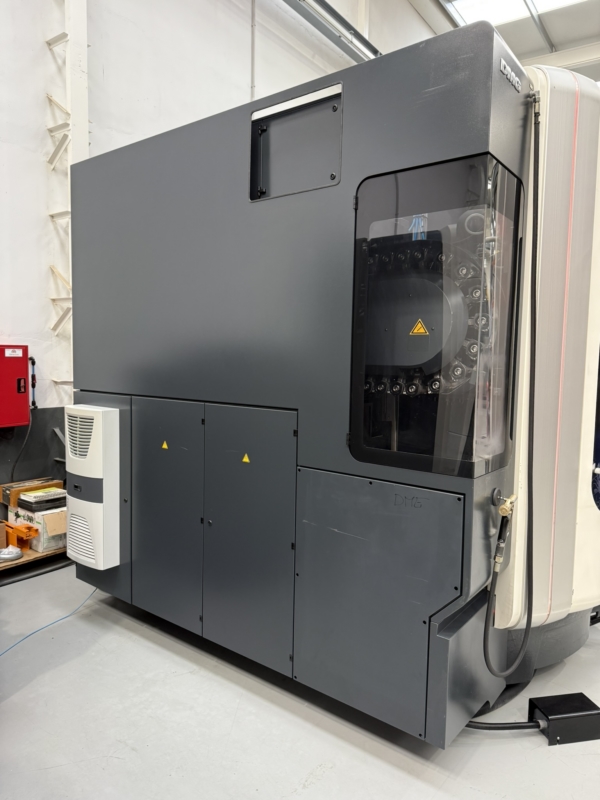

-Tool charger included

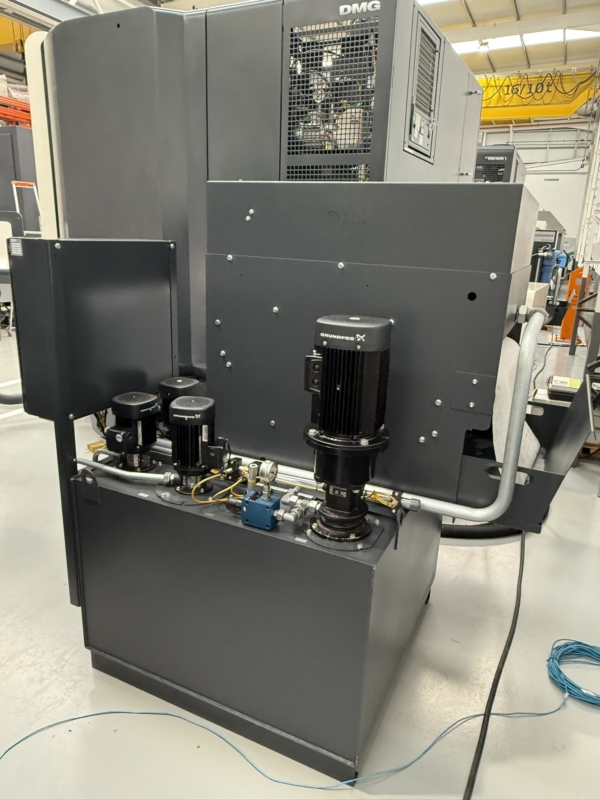

-Tank with 500l paper filter
-Active refrigerator cabinet
-Infrared measuring probe Heidenhain

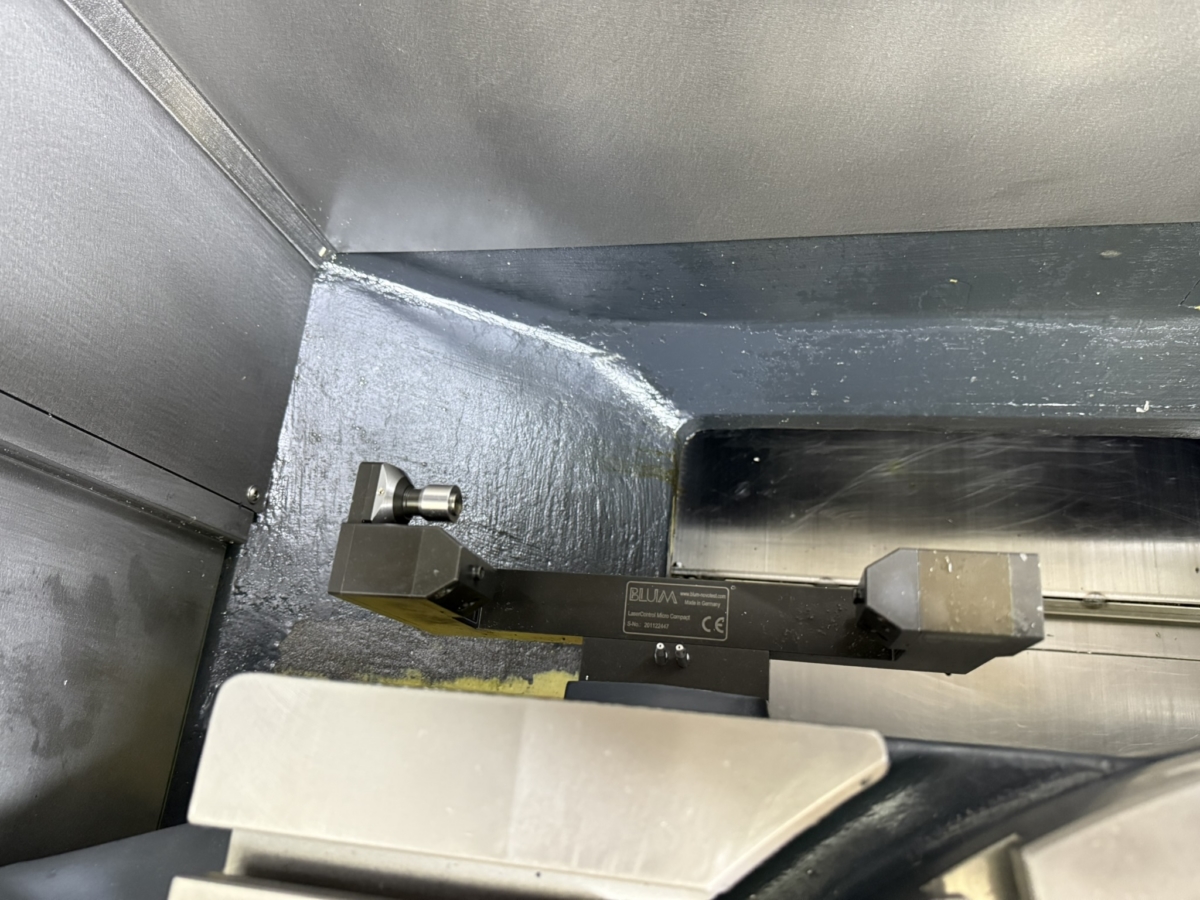

-Blum laser probe meter included
-Chip extractor included
-Cleaning gun with 2 bar 40 l/min pump
-3D quick set
-HEIDENHAIN HR-410 Portable Steering Wheel
|
