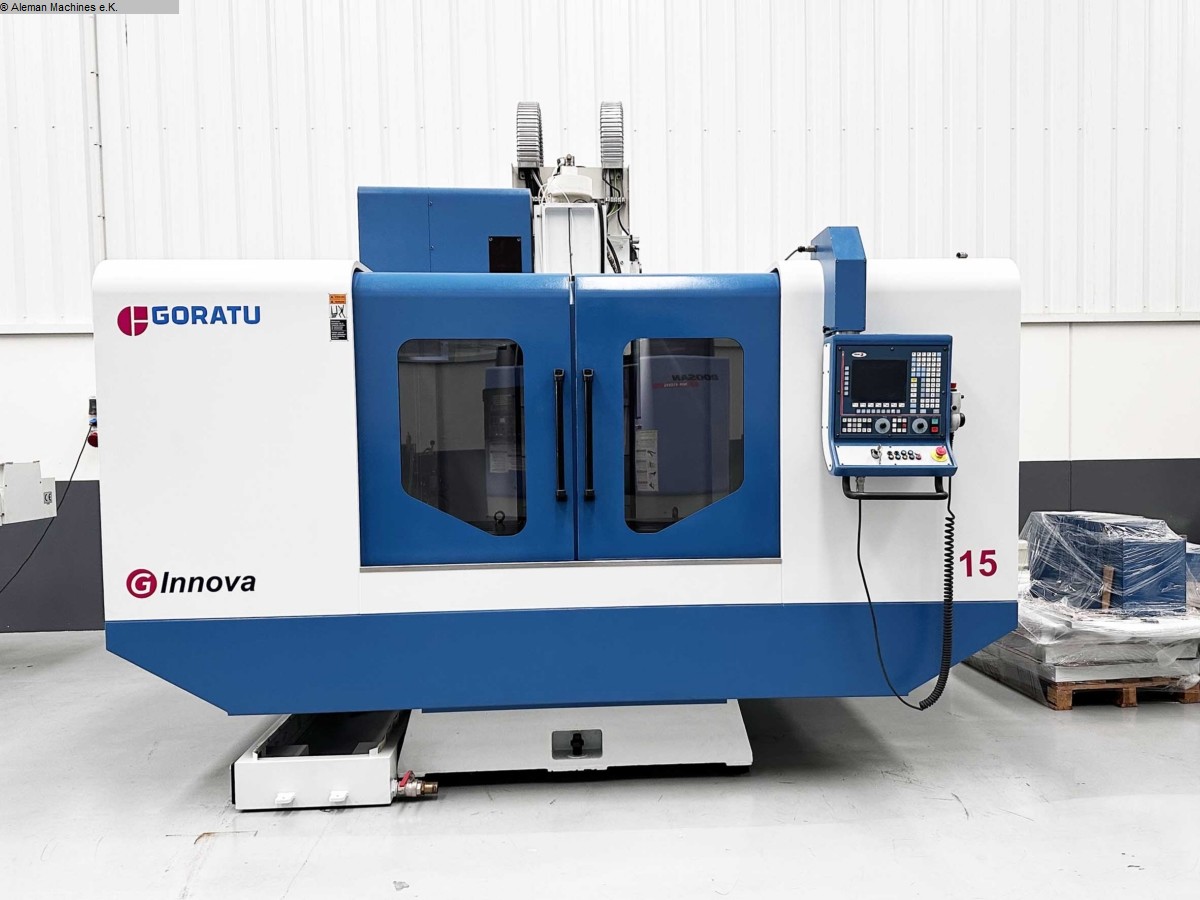

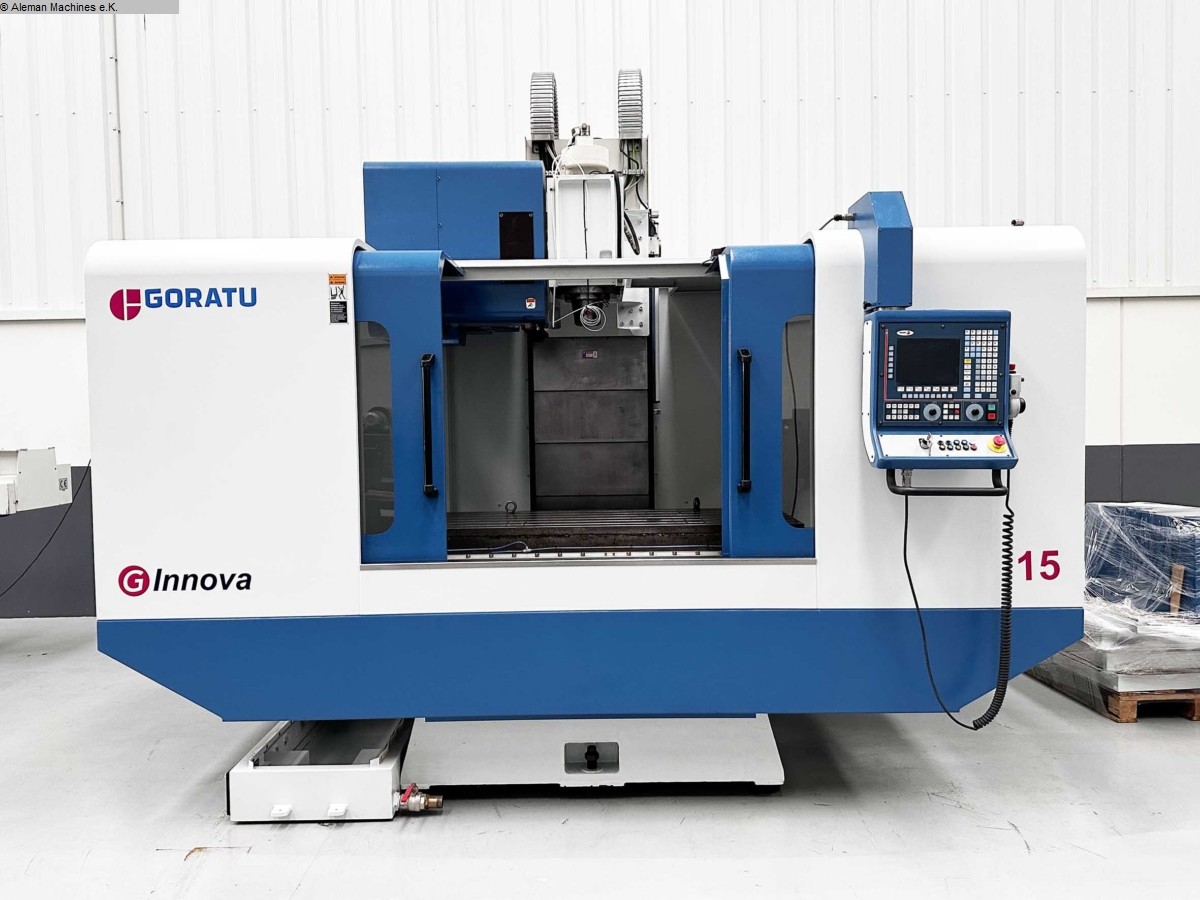

Machining Center - Vertical GORATU G-INNOVA-15 |
|
| Stock-no. |
1120-467 |
| Categoria |
Machining Center - Vertical |
| Fai |
GORATU |
| Tipo |
G-INNOVA-15 |
| Anne |
2004 |
| Controllo |

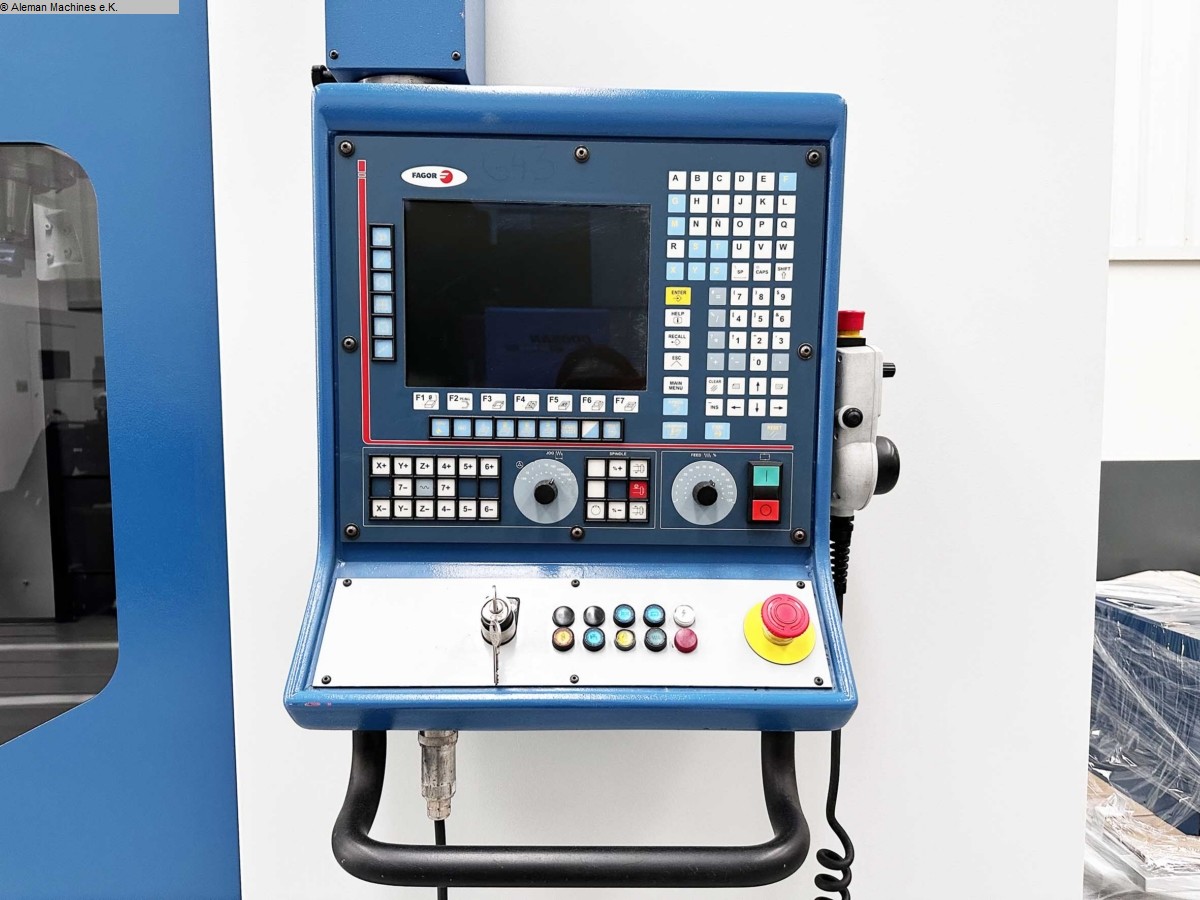

CNC FAGOR 8055 MC |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
Spain |
| Tempi di consegna |
on inquiry |
| Quotazione |
Free carrier |
| Technische Dettagli |
| x-travel |
1.500 mm |
| y-travel |
700 mm |
| z-travel |
700 mm |
| control |
FAGOR 8055 MC |
| table-size |
1.725 x 650 mm |
| table weight |
1.000 Kg |
| T-slots |
6 x 18 x 100 mm |
| rapid traverse |
30.000 mm/min |
| distance spindle /table |
190-890 mm |
| taper |
iso 40 DIN 69871 |
| number of spindle speeds |
10.000 U/min/rpm |
| Spindle power |
25/34 kW |
| total power requirement |
57 kW |
| weight of the machine ca. |
10 t |
| dimensions of the machine ca. |
3,683 x 3,750 x 3,335 m |
| Descrizione |
-Working acceleration 3 m/s²
-Distance from axle to column 690 mm.
-Min.-Max. Distance from the center of the table to the column 340-1,040 mm.
-Automatic tool changer:
-Type of tool change Random bidirectional
-Positions in magazine 24
-Maximum diameter with adjacent/free positions 77/130 mm.
-Maximum tool length 300 mm.
-Maximum weight of 1 tool / total weight 7 / 120 kg
-Tool change 2 s.
|
|
|
|
