| Stock-no. |
1120-465 |
| Categoria |
CNC Lathe |
| Fai |
GURUTZPE |
| Tipo |

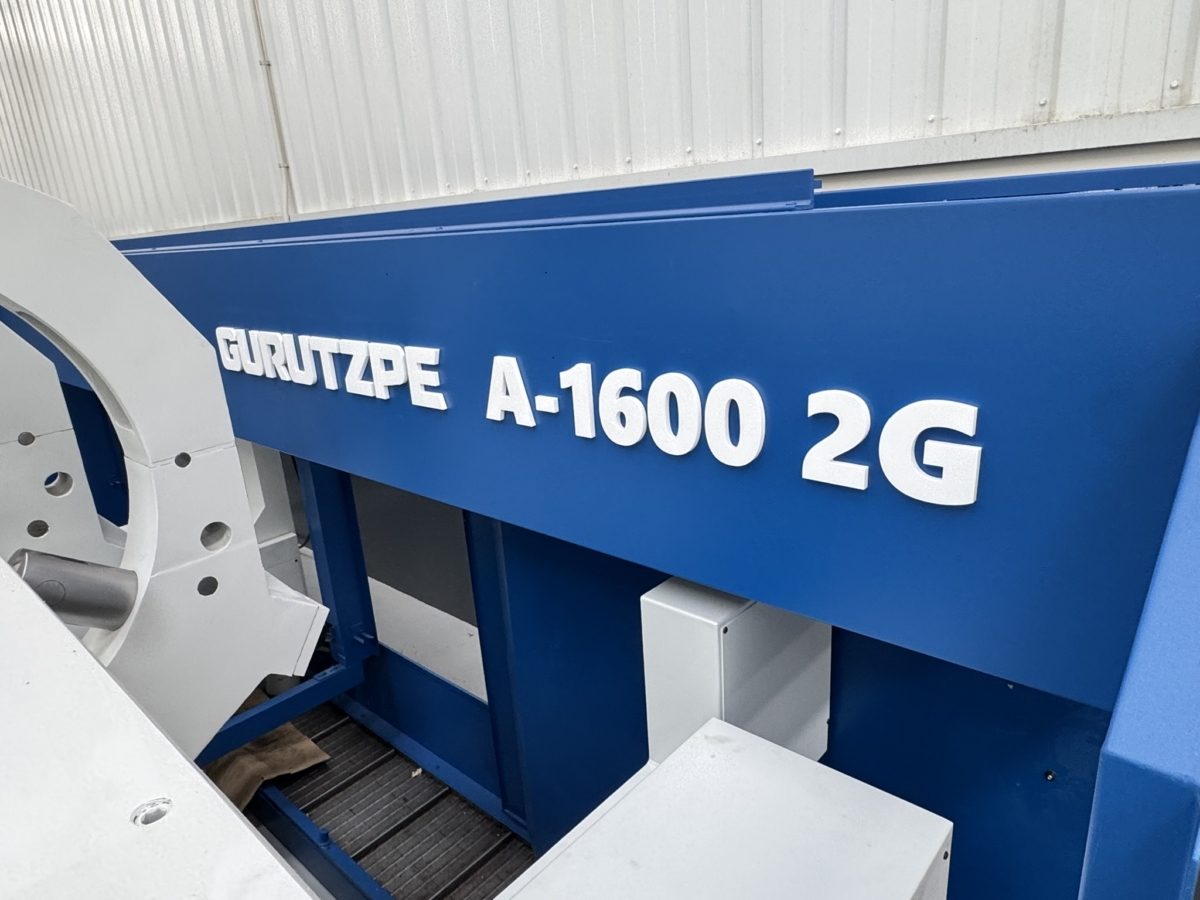

A-1600 2G CNC x 4.000 |
| Anne |
2008 |
| Controllo |
CNC Fagor |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
Spain |
| Tempi di consegna |
on inquiry |
| Quotazione |
Free carrier |
| Technische Dettagli |
| turning length |
4.000 mm |
| control |
Fagor |
| handwheel |
Fagor |
| quill: |
180 mm |
| number of spindle speeds |
20-800 U/min/rpm |
| main drive |
68 kW |
| dist. between centers |
4.000 mm |
| centre height |
810 mm |
| Swing diameter face slide |
1.200 mm |
| bed width |
1.090 mm |
| rapid traverse X-axis |
10 m/min |
| rapid traverse Z-axis |
10 m/min |
| spindle nose |
A-15 |
| Chip coveyor |
längs |
| max. torque on the spindle |
14.600 Nm |
| total power requirement |
73 kW |
| weight of the machine ca. |
26 t |
| dimensions of the machine ca. |
11.830 x 3.600 mm |
| Descrizione |
Max. swivel range over bed 1,650 mm.

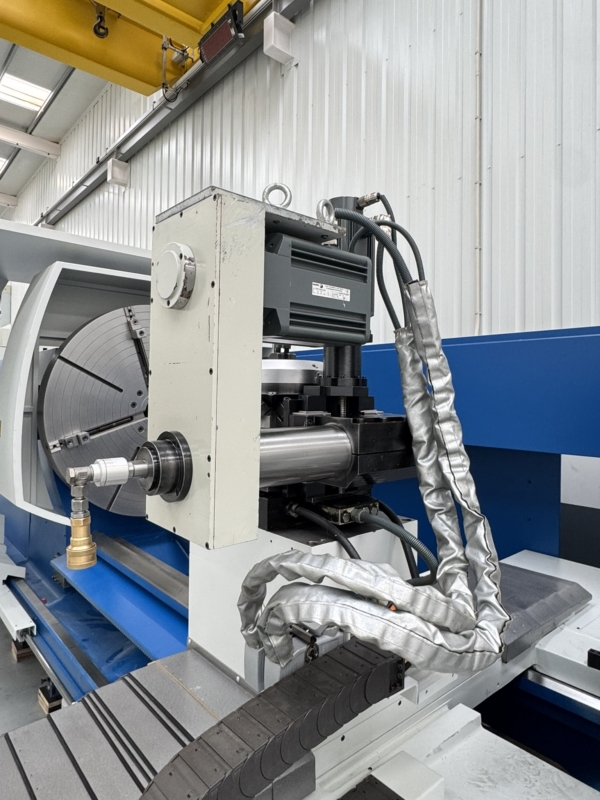

C axis and driven tool
Main spindle hole 150 mm.
Sauter 4 POS
Tool size 360 ??x 360 mm.
Tower station number 4
Tailstock with CNC-controlled longitudinal movement
Movement of the tailstock quill driven
Turning point of the tailstock MORSE 6
Lining protection/rear protection
4-jaw chuck Ø1400 mm
4-jaw chuck Ø800 mm

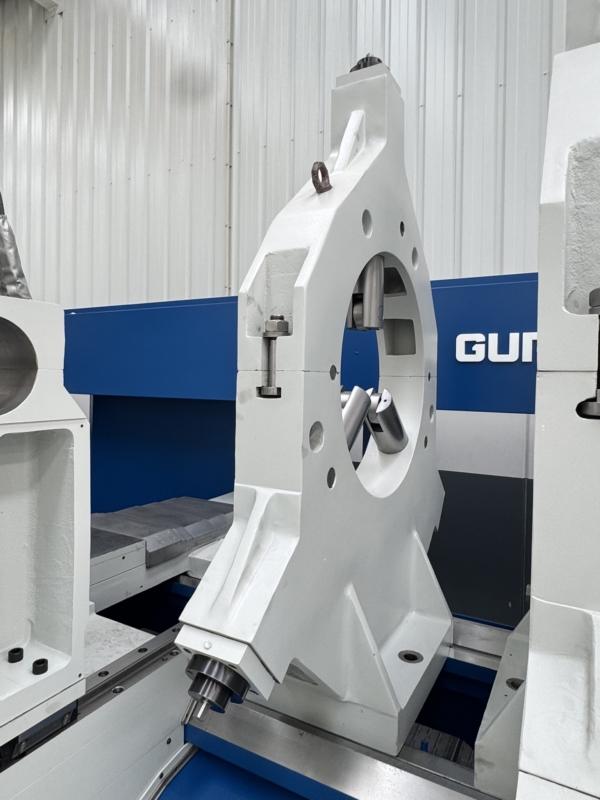

3 support bezels Ø 620 mm
3 support bezels Ø 930 mm

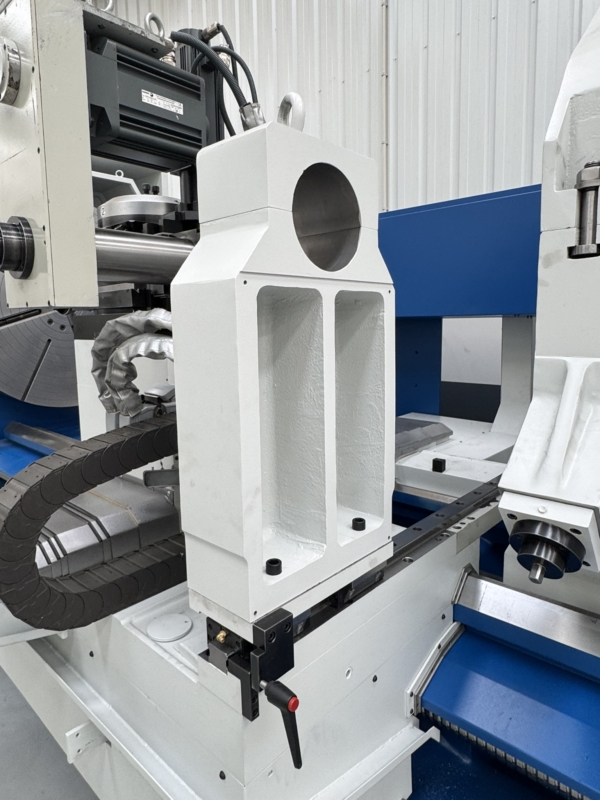

Holder for drilling rod Ø160 mm.
Drilling rod Ø 160 x 2,200 mm
|
