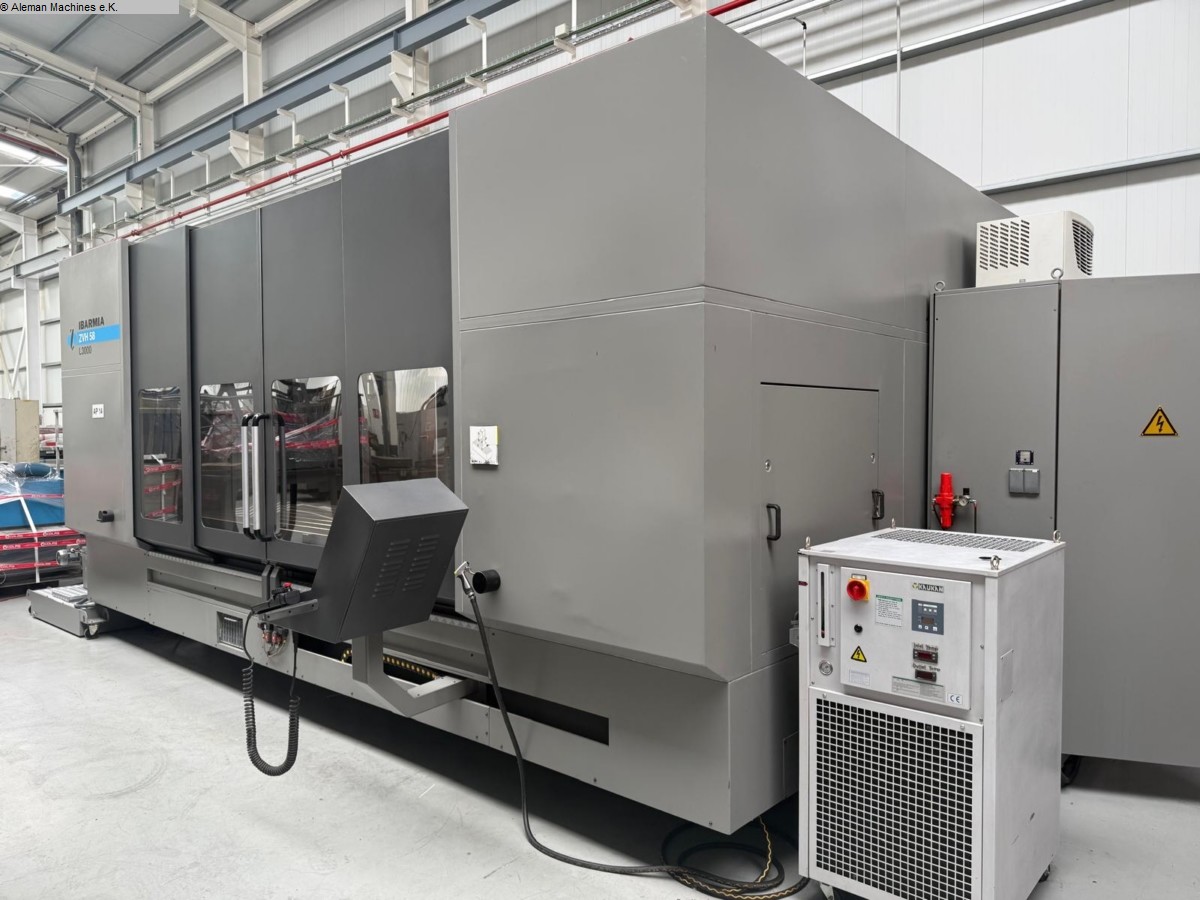

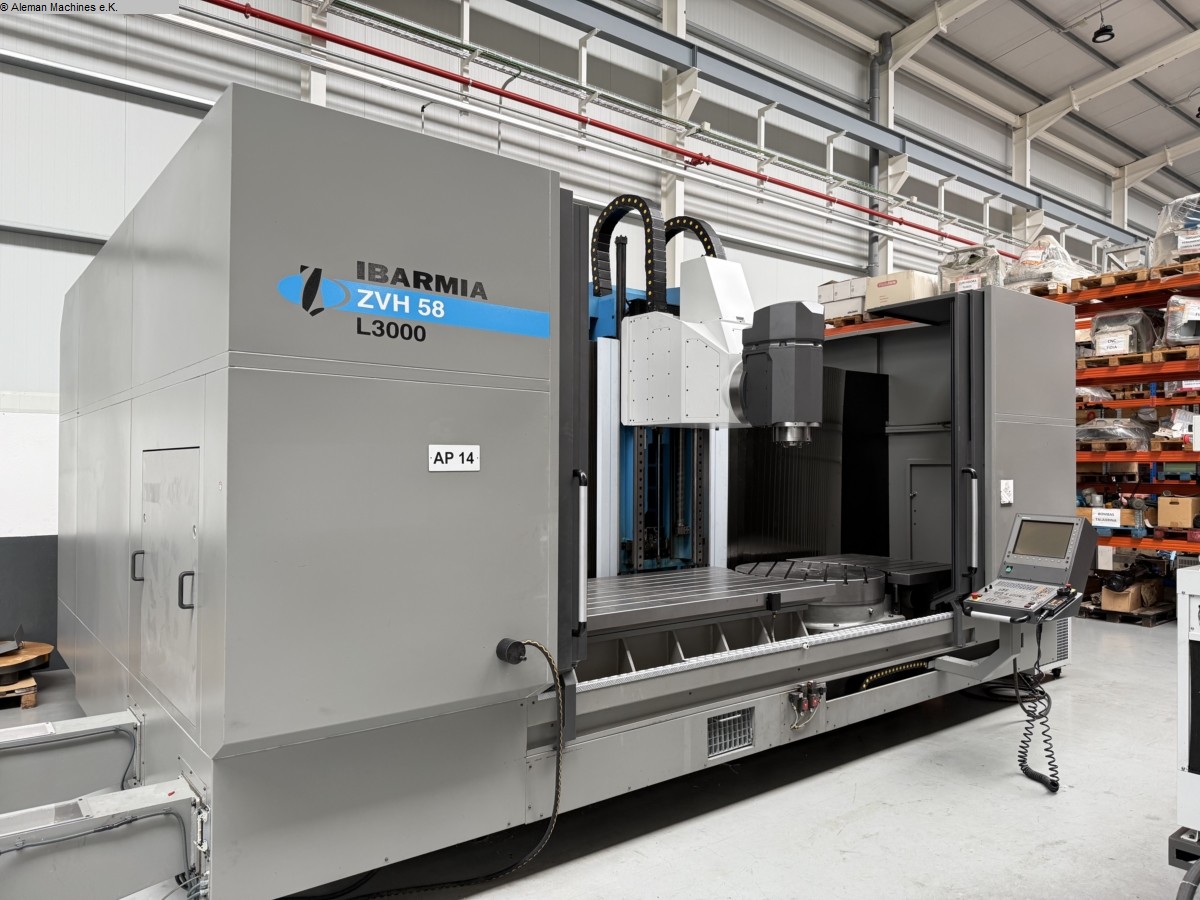

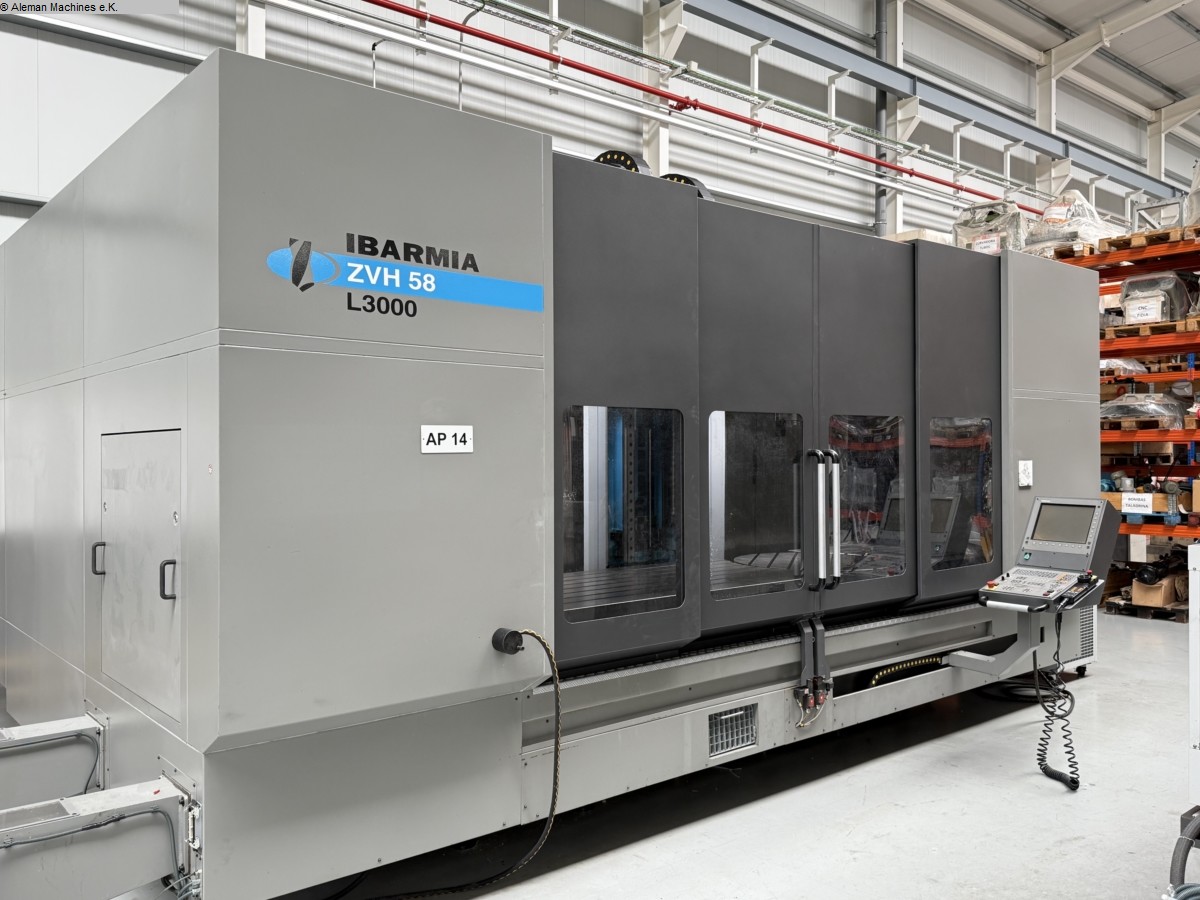

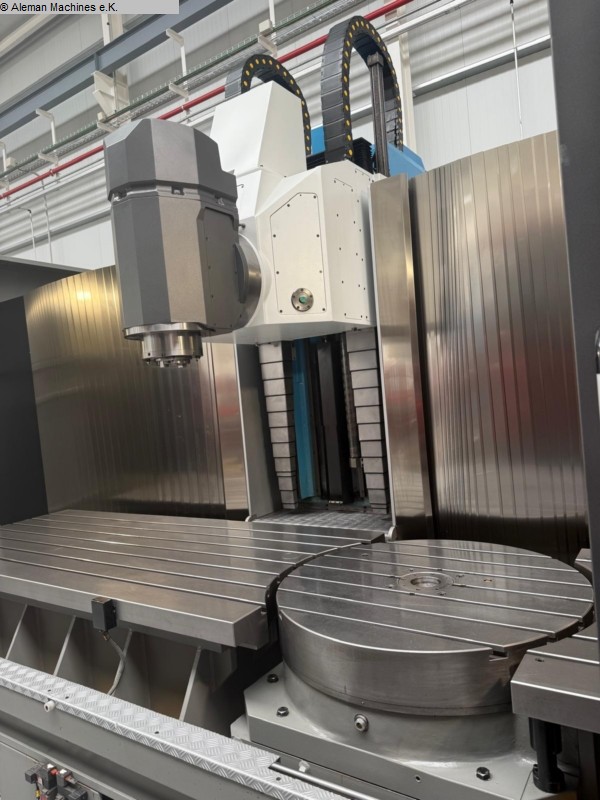

Machining Center - Universal IBARMIA ZVH 58 / L3000 |
|
| Stock-no. |
1120-422 |
| Categoria |
Machining Center - Universal |
| Fai |
IBARMIA |
| Tipo |
ZVH 58 / L3000 |
| Anne |
2004 |
| Controllo |
CNC Heidenhain iTNC-530 |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
Spain |
| Tempi di consegna |
immediately |
| Quotazione |
Free carrier |
| Technische Dettagli |
| x-travel |
3.000 mm |
| y-travel |
1.000 mm |
| z-travel |
860 mm |

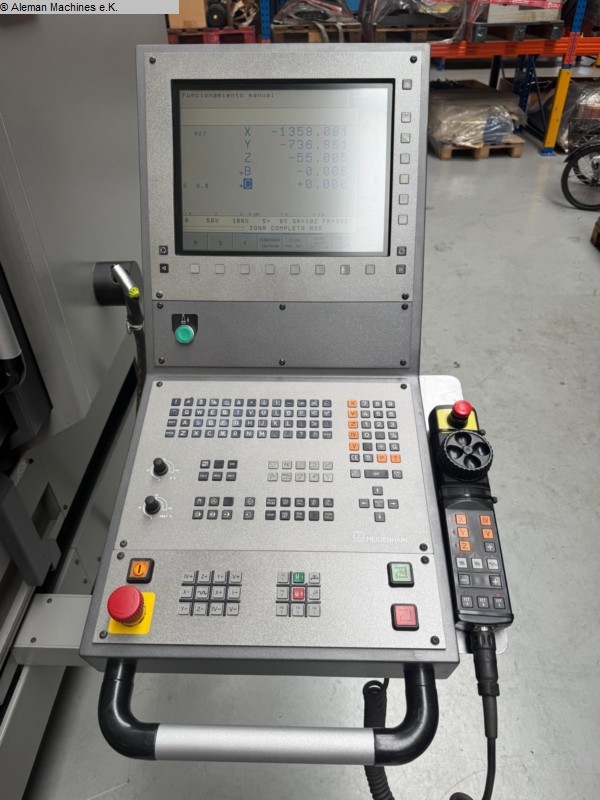

| Control |
Heidenhain iTNC-530 |

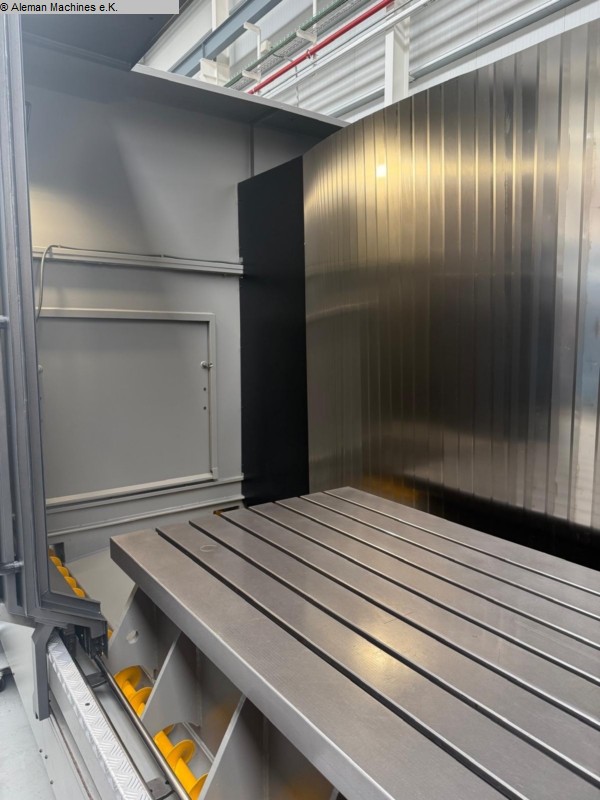

| table-size |
3.600 x 1.050 mm |
| T-slots |
7 x 18 |
| T - slots distance |
125 mm |
| distance table - lower edge spindle |
25-366 mm |
| table weight |
4.200 Kg |
| b-axis |
+-105 ° |
| c-axis |
+-360 0 |
| rapid travel x/y/z |
30.000 mm/min |

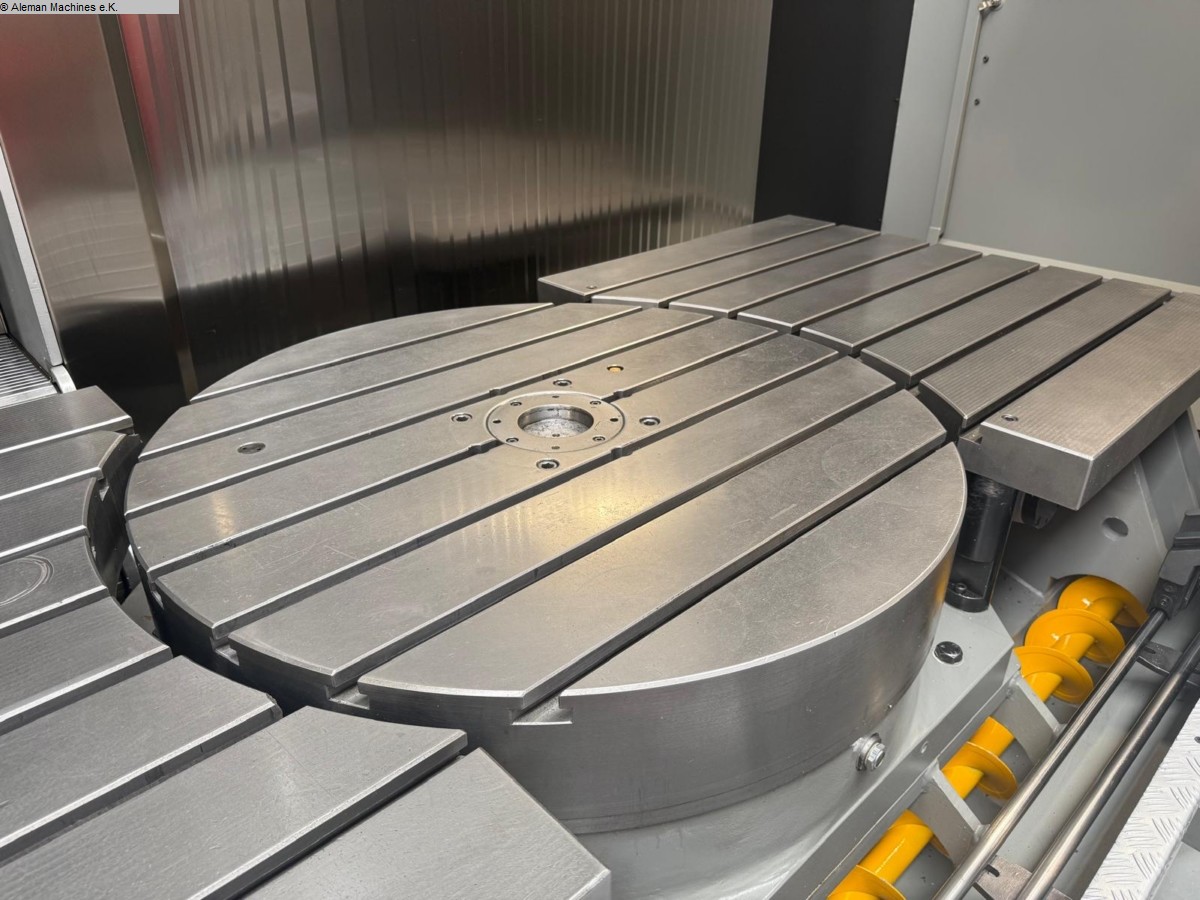

| rotary table |
Durchm. 1.000 mm |
| max. turning diameter |
1.400 mm |
| number of spindle speeds |
9.000 U/min/rpm |
| tool taper |
ISO-50 DIN 69871-AD |
| spindle drive |
28,5 kW |
| max. torque on the spindle |
240 Nm |
| tool change unit |
AITEK, 40 fach |
| handwheel |
Ink. |
| Shuttle operation |
Inkl |

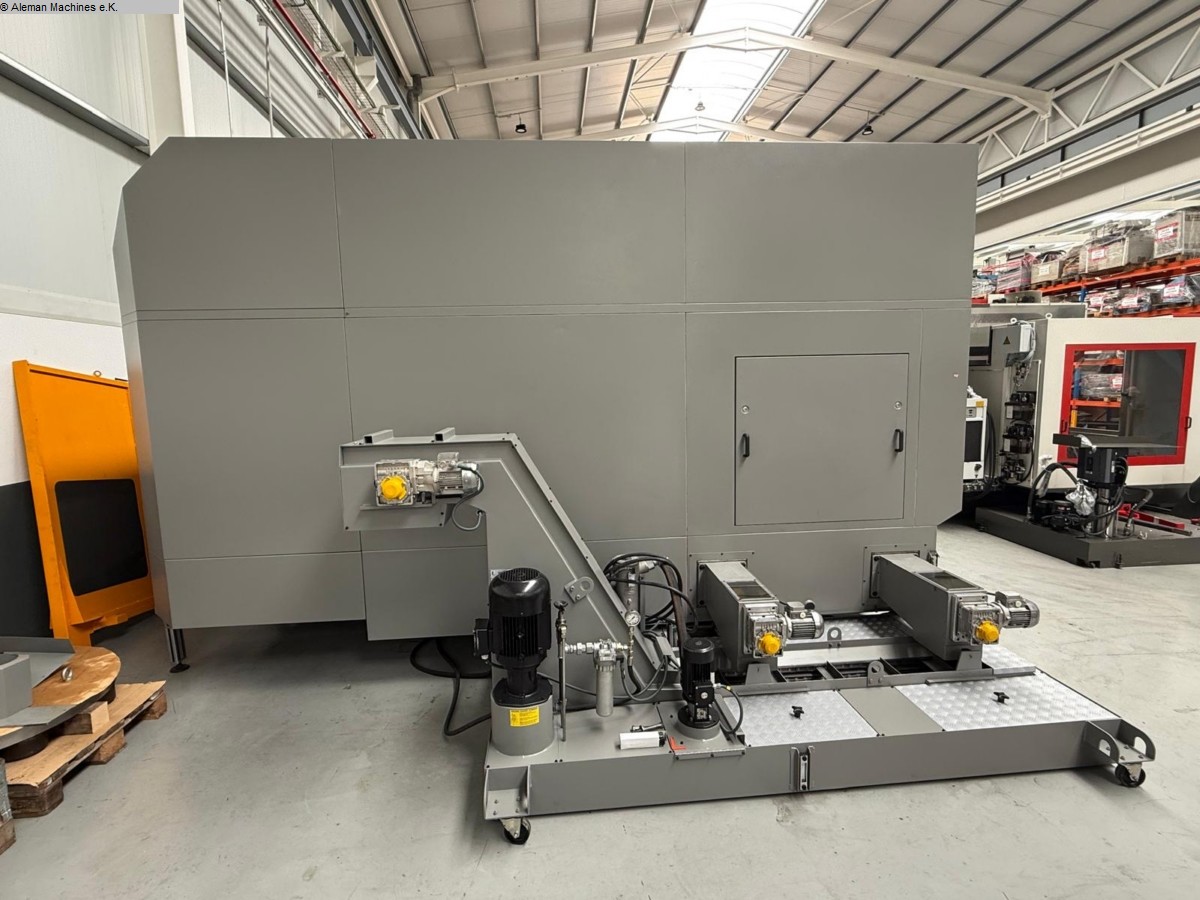

| Chip coveyor |
Ink. |
| Internal cooling system |
20 bar |
| total power requirement |
65 kW |
| weight of the machine ca. |
24,8 t |
| dimensions of the machine ca. |
8.056 x 5.496 x 3.790 mm |
| Descrizione |
|
|
|
|
Spiacente, nessun video.
|
|
