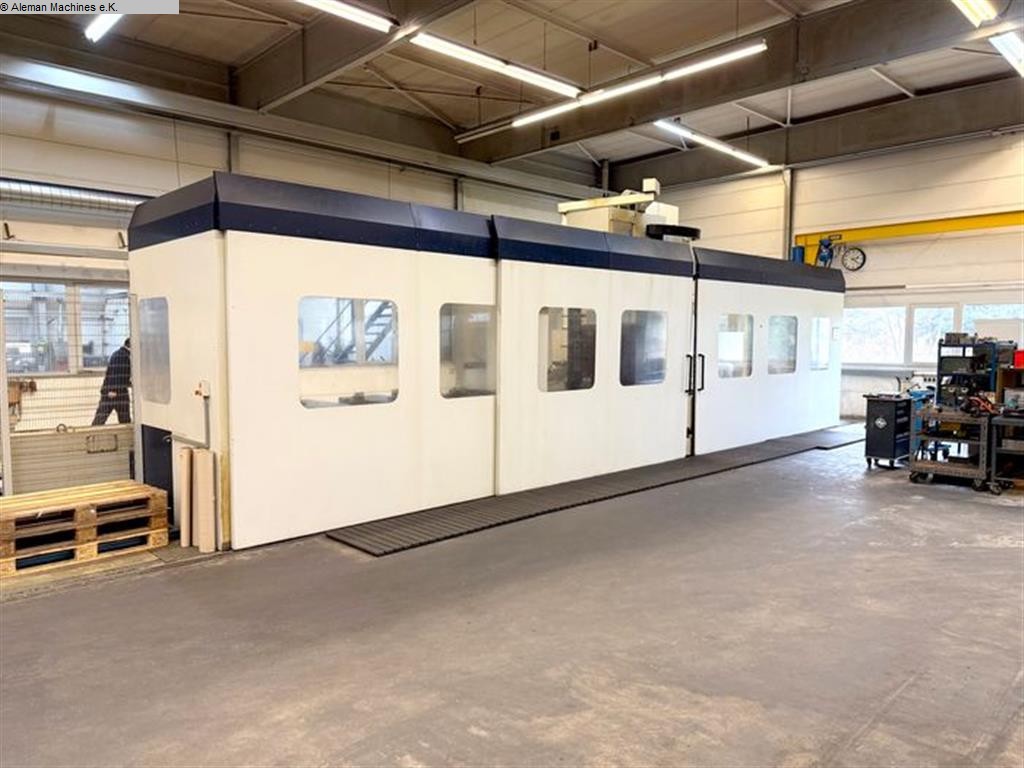

Travelling column milling machine SORALUCE SP10.000 |
|
| Stock-no. |
1120-345 |
| Categoria |
Travelling column milling machine |
| Fai |
SORALUCE |
| Tipo |
SP10.000 |
| Anne |
2011 |
| Controllo |
CNC HEIDENHAIN iTNC530 |
| Luogo di stoccaggio |
Abgeber Deutschland |
| Paese di origine |
Spain |
| Tempi di consegna |
on inquiry |
| Quotazione |
ex work |
| Prezzo |
10.00 EUR |
| Technische Dettagli |
| x-travel |
8.500 mm |
| y-travel |
2.000 mm |
| z-travel |
1.500 mm |

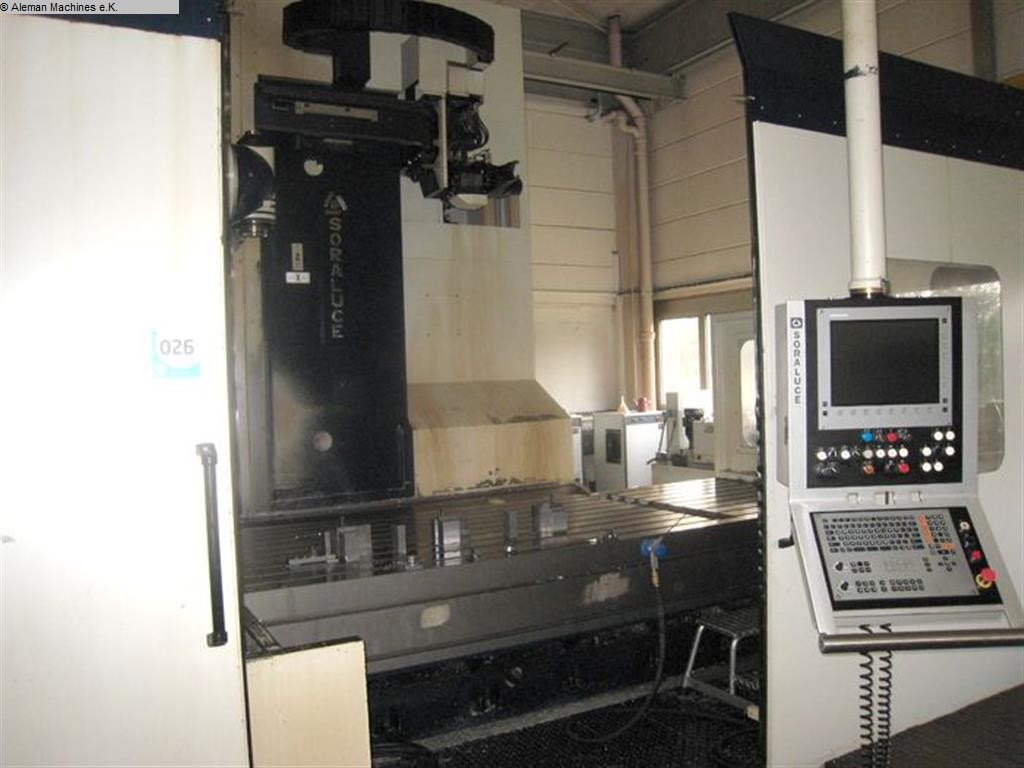

| Control |
HEIDENHAIN iTNC530 |
| rapid travel x/y/z |
25.000 mm/min |

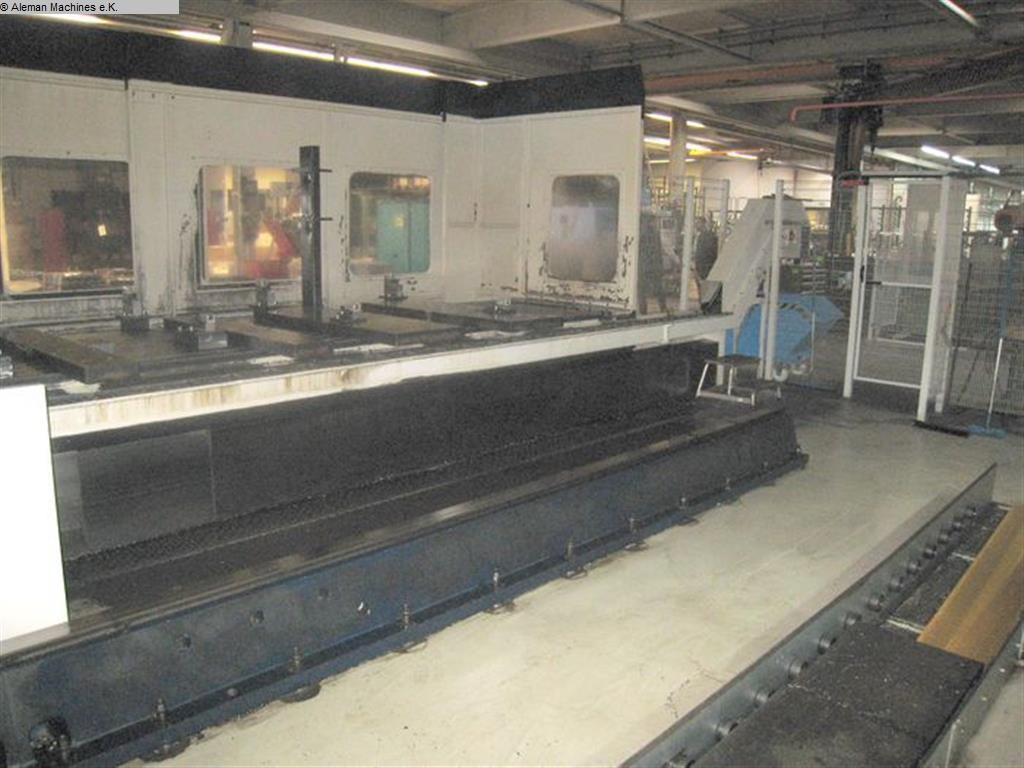

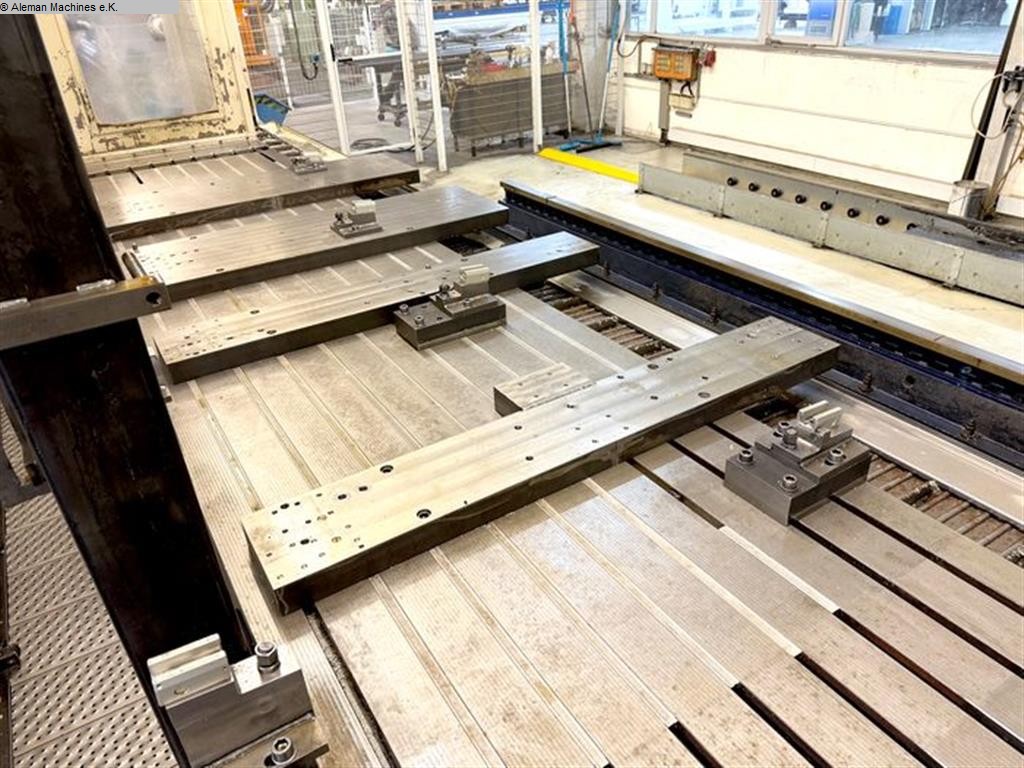

| table-size |
10.000 x 1.350 mm |
| table weight |
max. 5 t/qm |
| milling head |
orthogonal 1° x 1° |
| tool taper |
SK- 50 |
| number of spindle speeds |
4.000 U/min/rpm |
| power capacity |
37 kW |
| max. torque on the spindle |
900 Nm |

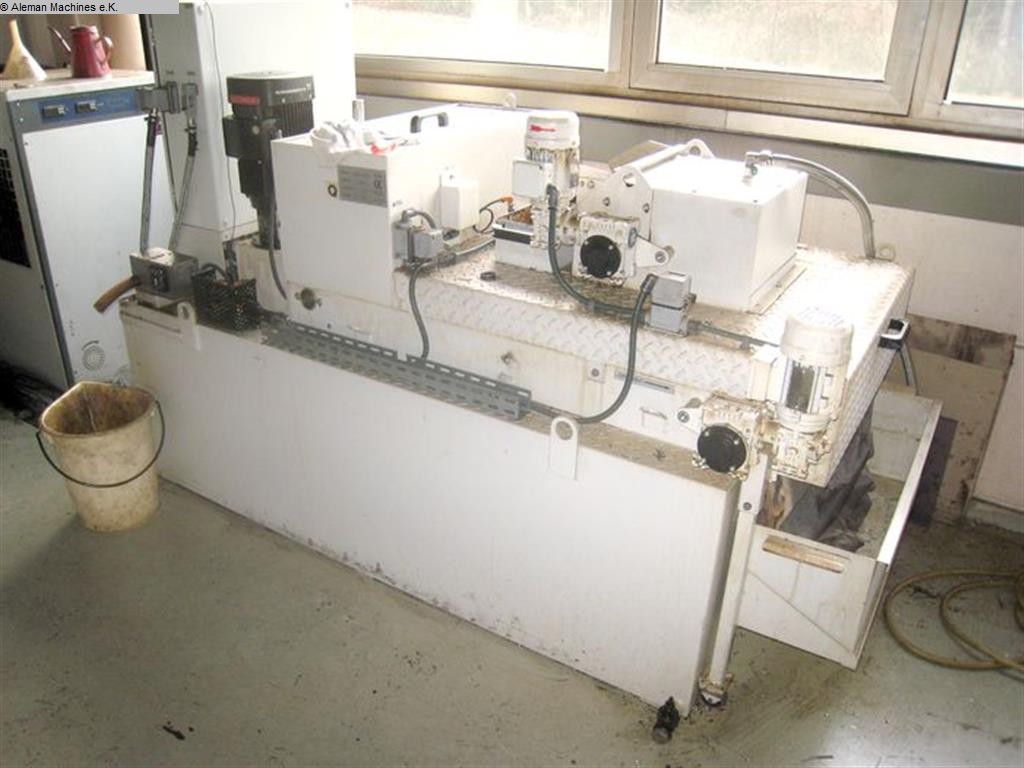

| Internal cooling system |
15 bar |
| tool change unit |
60 pos. |
| handwheel |
HR 410 |
| Chip coveyor |
Inkl. |

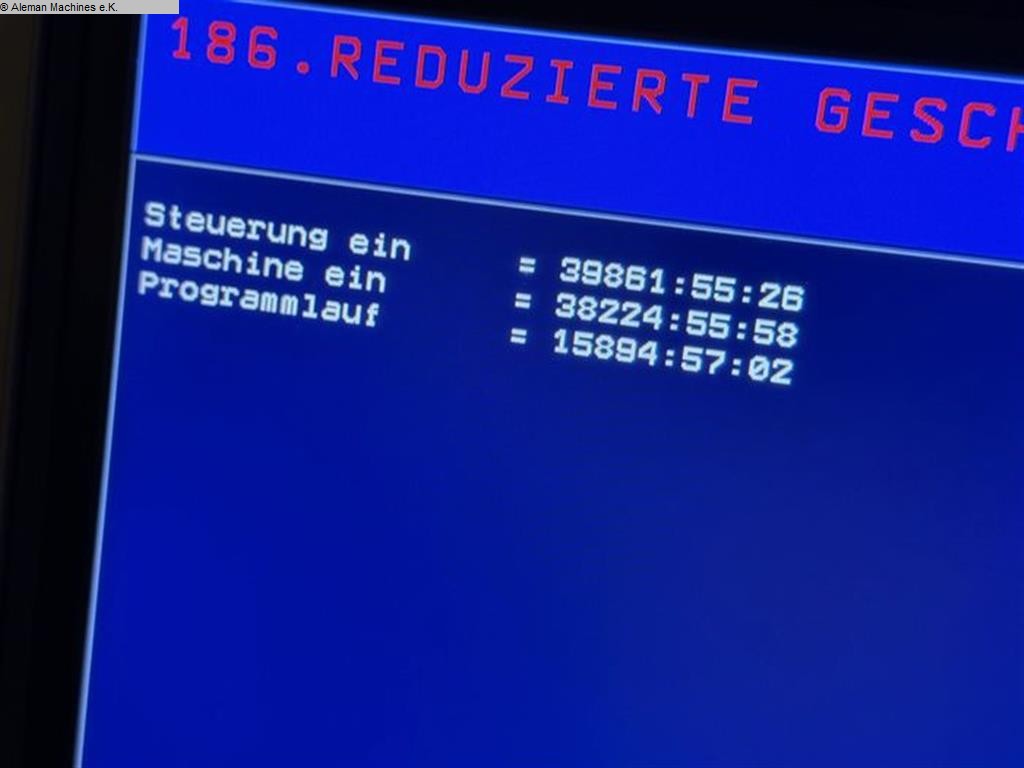

| Machine on |
39.000 h |
| Spindle hours |
16.000 h |
| total power requirement |
75 kW |
| weight of the machine ca. |
35 t |
| dimensions of the machine ca. |
12,7 x 5,2 x 4,6 m |
| Descrizione |

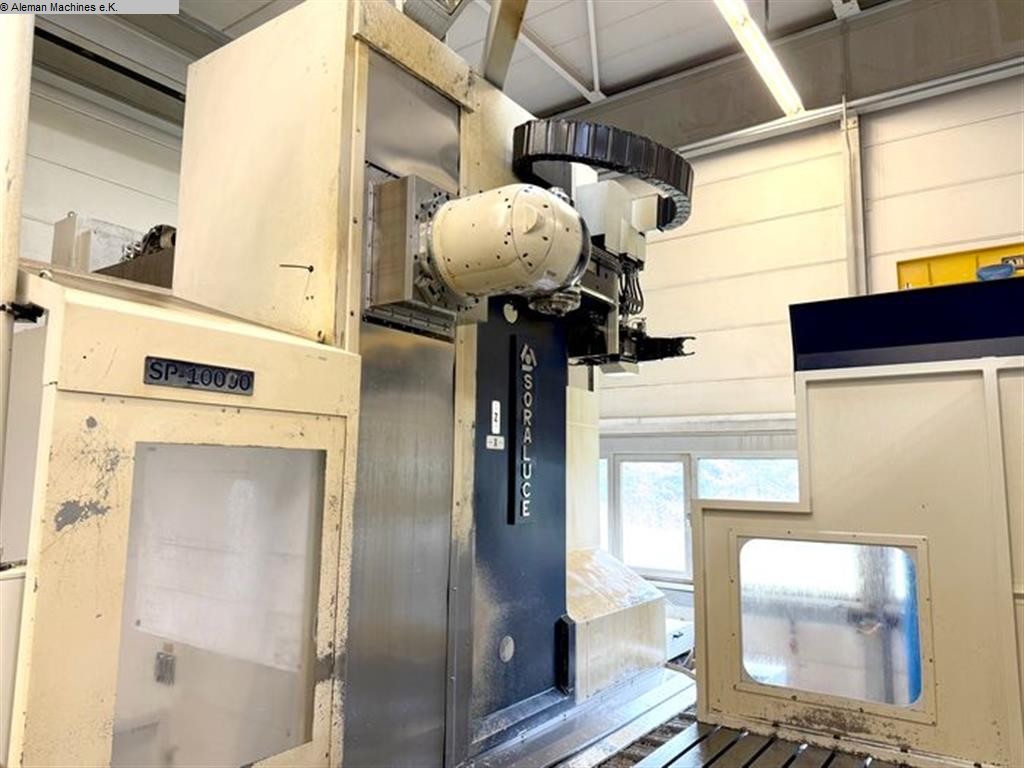

Orthogonal milling head, water-cooled, with 1° indexing in 2 axes (360
positions in the rear plane and 270 positions in the front plane)
3D wireless probe M&H 20.41
Partition wall for parallel operation/setup
Internal air blast
Adapter for high-speed milling spindles with torque support
Operator platform moves with the machine

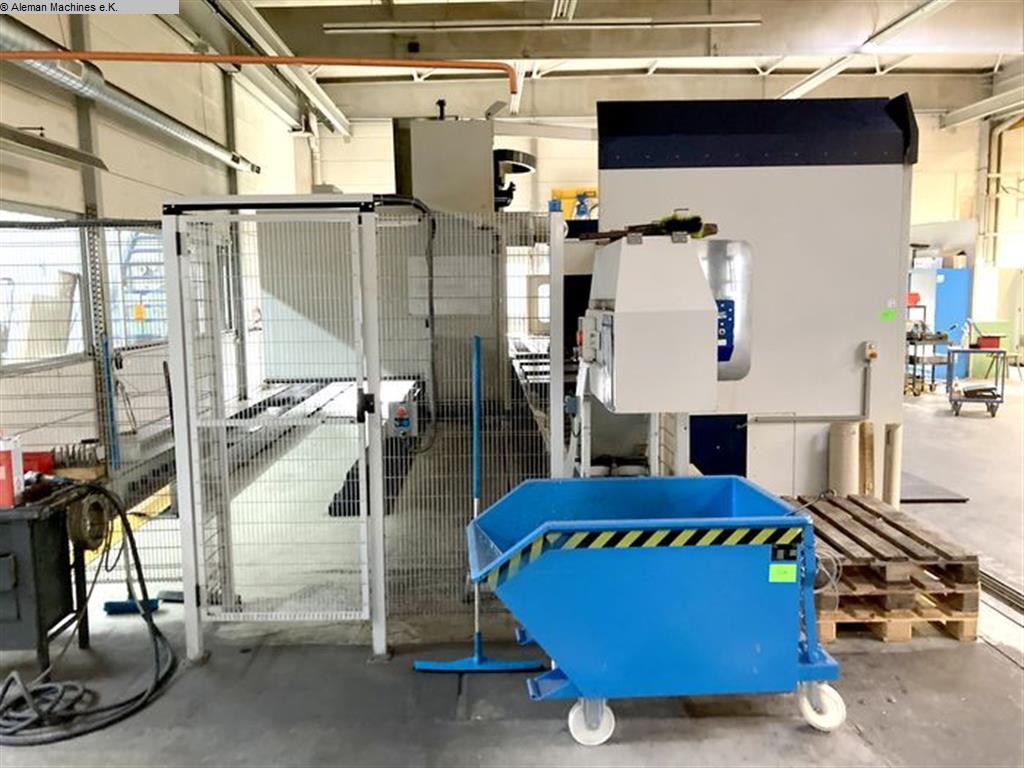

Monitored safety fences
Various accessories (angle heads, clamps, etc.) available optionally
Can still be inspected on site under power
|
|
|
|
