| Stock-no. |
1120-327 |
| Categoria |
milling machining centers - universal |
| Fai |

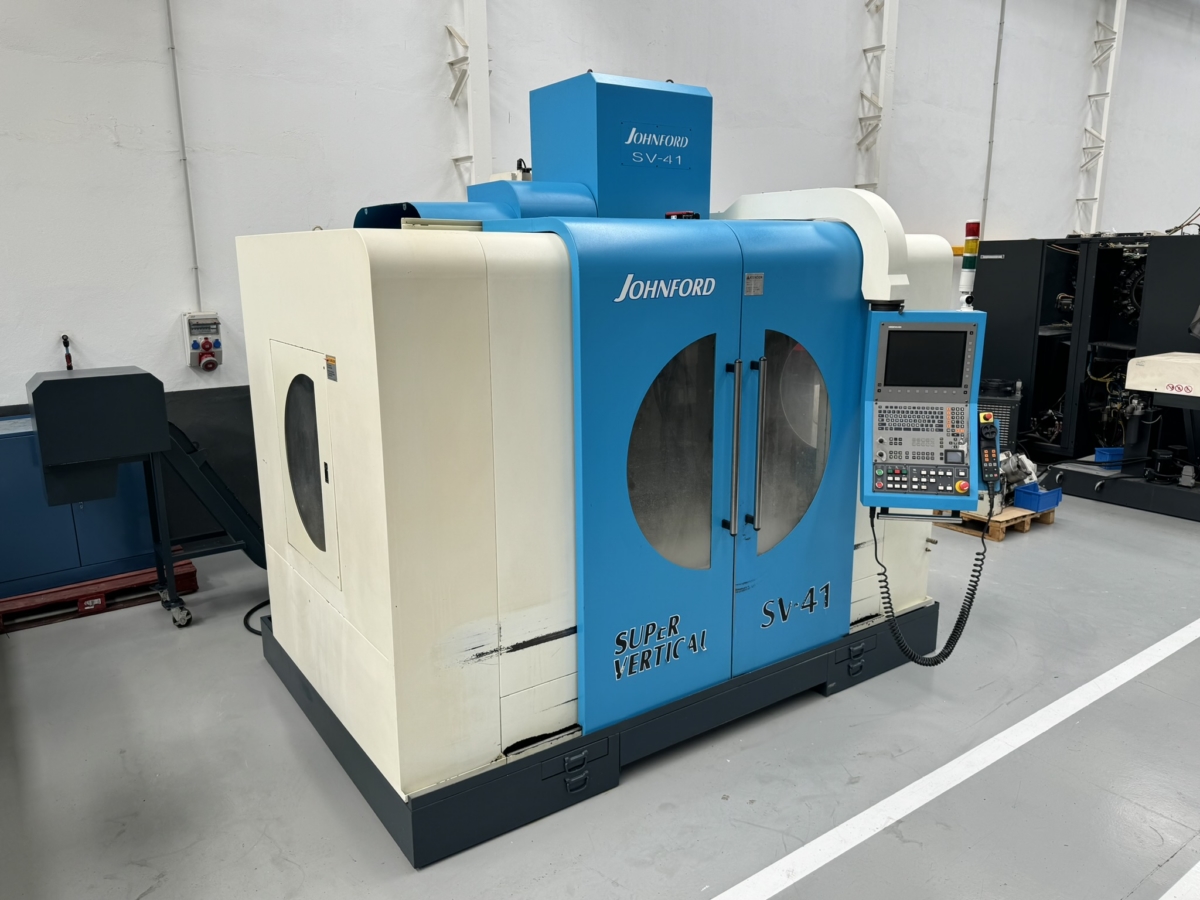

JOHNFORD |
| Tipo |
SV - 41 + 4/5- Achse |
| Anne |
2007 |
| Controllo |

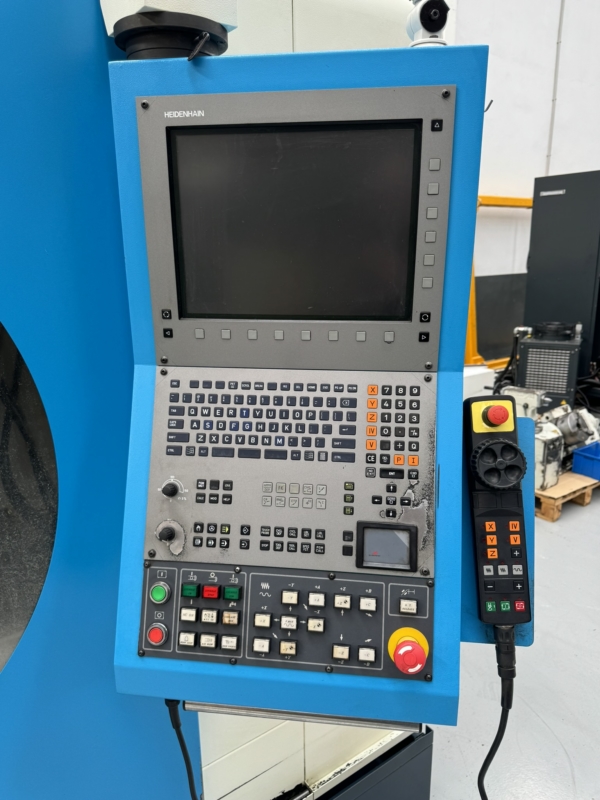

CNC HEIDENHAIN iTNC 530 |
| Luogo di stoccaggio |
Standort |
| Paese di origine |
Spain |
| Tempi di consegna |
immediately |
| Quotazione |
ex work |
| Technische Dettagli |
| x-travel |
1.050 mm |
| y-travel |
610 mm |
| z-travel |
610 mm |
| control |
HEIDENHAIN iTNC 530 |
| Distance between table and spindle |
100-710 mm |
| table-size |
1.200 x 600 mm |
| table weight |
1.200 Kg |
| rapid travel x/y/z |
30.000/20.000 mm/min |
| feed |
12.000 m/min |
| spindle taper |
BT-40 |
| spindle turning speed range |
60 - 10.000 U/min |
| spindle drive |
7,5/11 kW |
| Tools changer |
20 pos. |
| Internal cooling system |
20 bar |
| Chip coveyor |
2 |
| handwheel |
HEIDENHAIN HR-410 |
| tool diameter |
100 mm |
| tool length - max. |
320 mm |
| weight of tools max. |
10 kg |
| total power requirement |
kW |
| weight of the machine ca. |
7 t |
| dimensions of the machine ca. |
2.900 x 3.420 x 2.888 m |
| Descrizione |

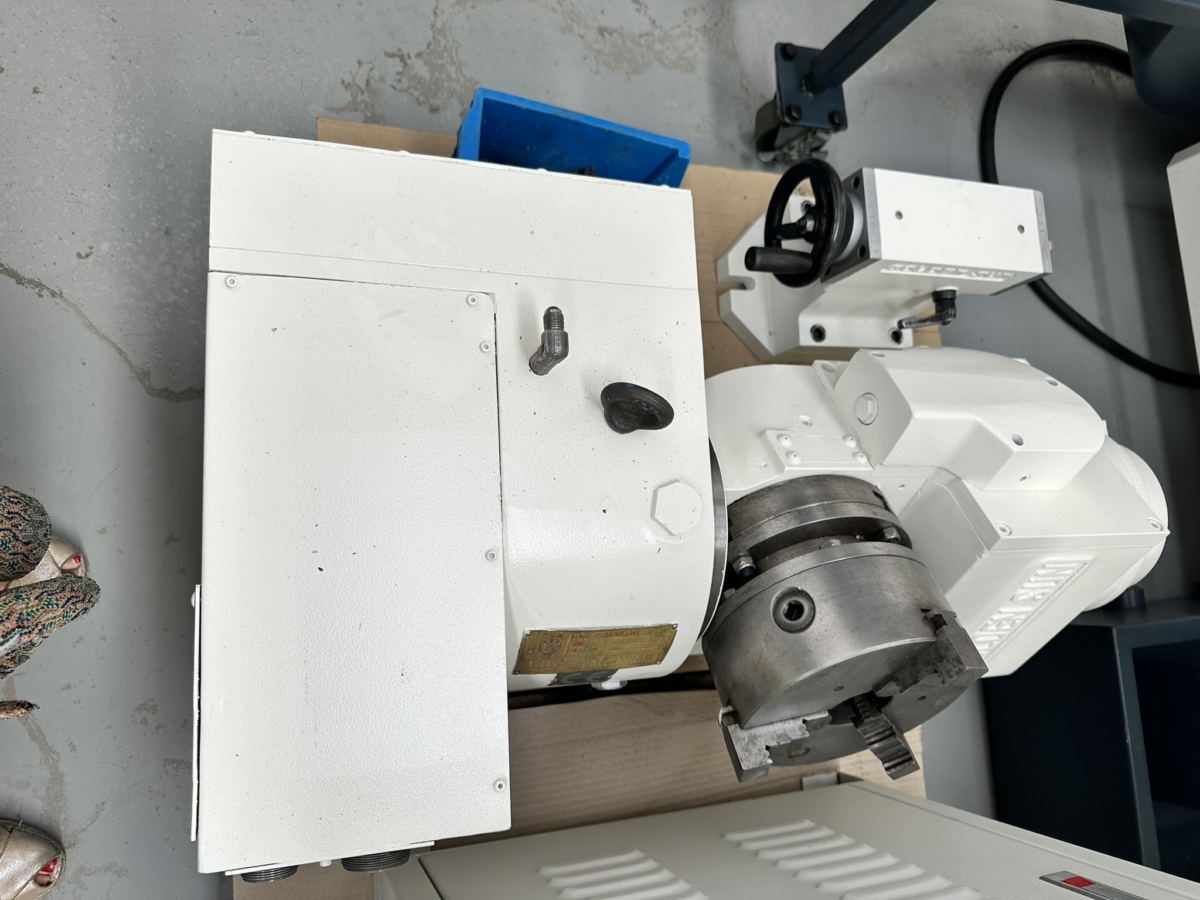

Complete installation 4th axis - Rotary table Golden Sun CNCT 321 (4th/5th
axis)- Rotary table diameter 200 mm. - Rotary table tailstock - ZF box -
Electrical cabinet air conditioning
|
