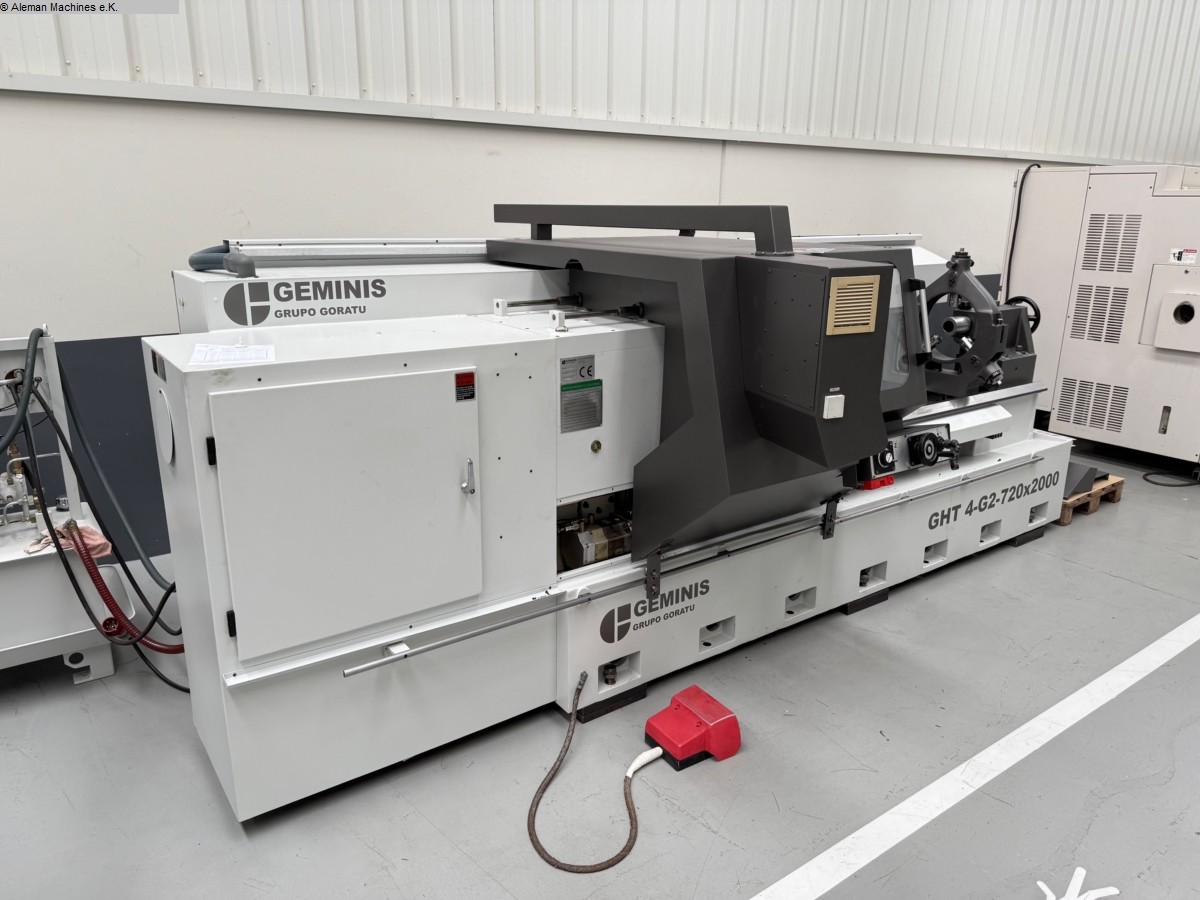

CNC Lathe GEMINIS GHT-4 720 x 2.000 |
|
| Stock-no. |
1120-310 |
| Categoria |
CNC Lathe |
| Fai |
GEMINIS |
| Tipo |
GHT-4 720 x 2.000 |
| Anne |
2001 |
| Controllo |
CNC FAGOR 8055 |
| Luogo di stoccaggio |
Auf Anfrage |
| Paese di origine |
Spain |
| Tempi di consegna |
immediately |
| Quotazione |
ex work |
| Technische Dettagli |
| turning diameter |
720 mm |
| turning length |
2.000 mm |
| control |
FAGOR 8055 |
| turning diameter over slide |
470 mm |
| feed |
8 m/min |
| spindle nose |
DIN-55027-11 |
| spindle passage |
104 mm |
| number of spindle speeds |
0-1600 U/min/rpm |
| spindle drive |
17/ 20.5 kW |
| Torque |
1590/1920 Nm |
| total power requirement |
28 kW |
| weight of the machine ca. |
4.9 t |
| dimensions of the machine ca. |
6.600 x 2.300 mm |
| Descrizione |
Tailstock
Tailstock quill diameter: Ø 100 mm
Tailstock quill travel: 200 mm
Tailstock quill taper: Morse taper MT 6
Turret
4-position automatic turret
Machine Equipment
Full rear protection enclosure
Hydraulic 3-jaw chuck SMW AUTOBLOCK 400 GH
Fixed steady rest, capacity 50220 mm
Maximum Permissible Weights
Max. workpiece weight between centers: 2,560 kg
With 1 steady rest / with 2 steady rests: 3,200 kg / 4,000 kg
Free-standing, center of gravity at 250 mm: 800 kg
|
|
|
|
