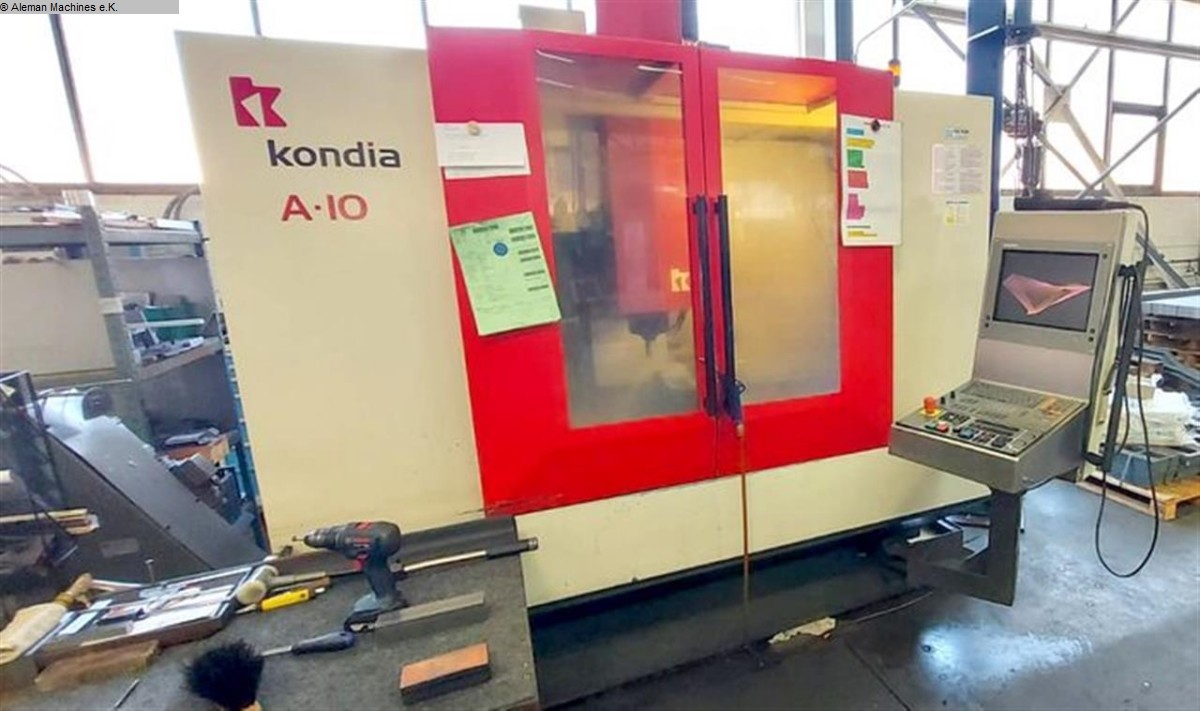

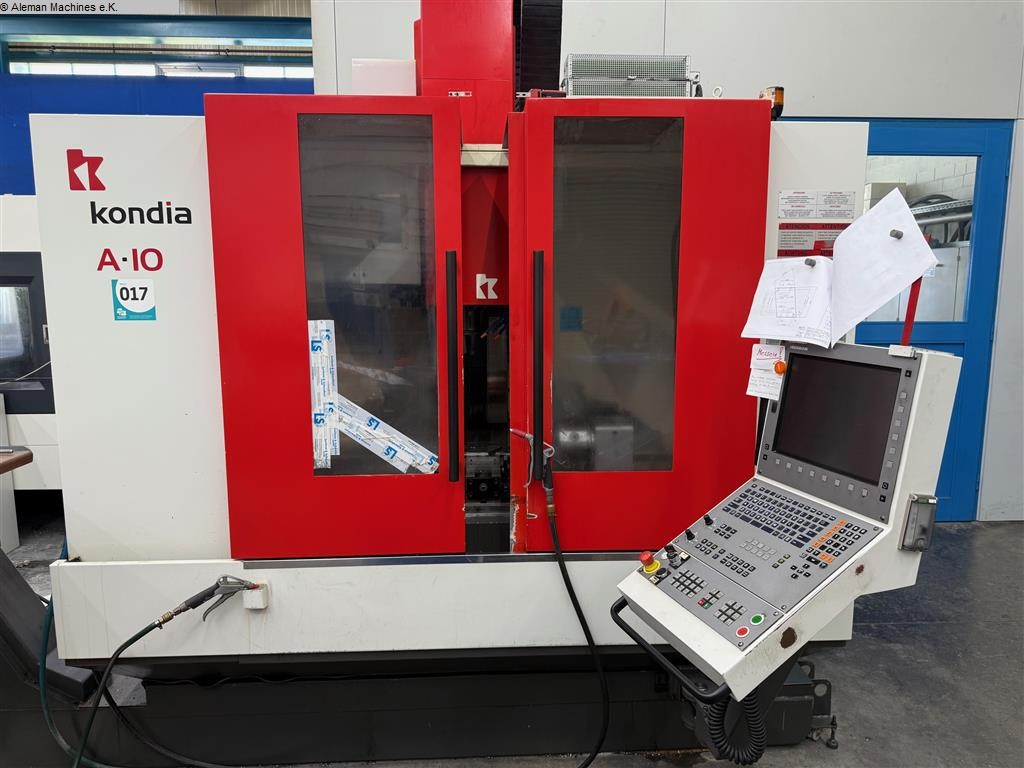

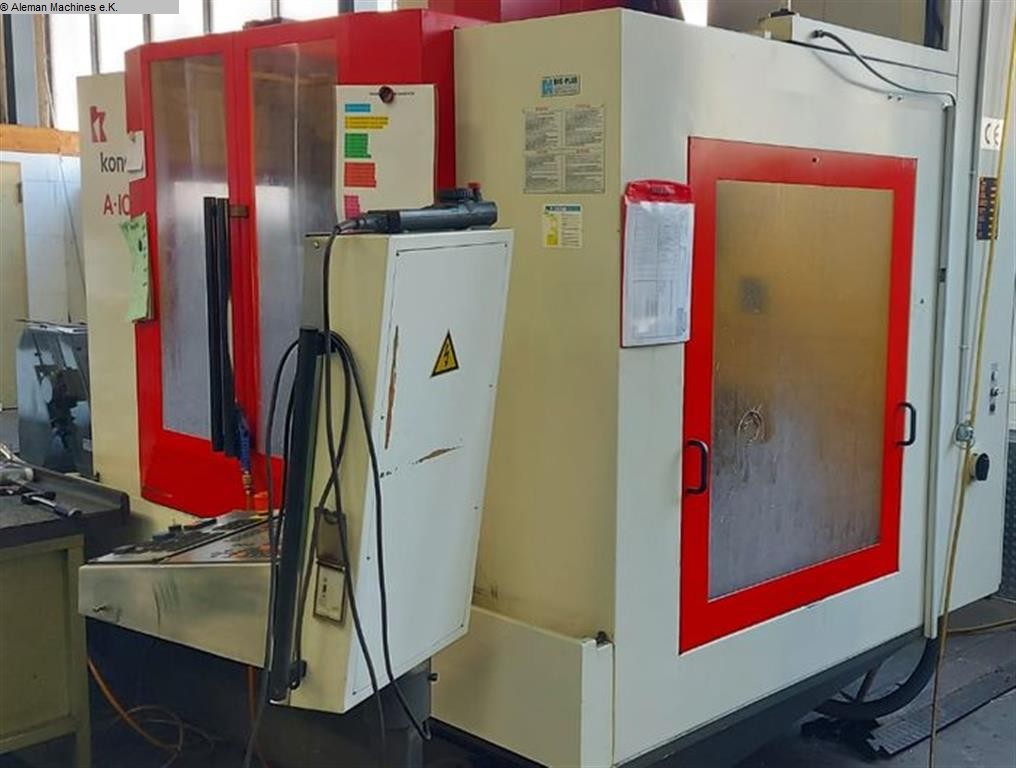

Machining Center - Vertical KONDIA A10 |
|
| Stock-no. |
1120-305 |
| Categoria |
Machining Center - Vertical |
| Fai |
KONDIA |
| Tipo |
A10 |
| Anne |
2011 |
| Controllo |

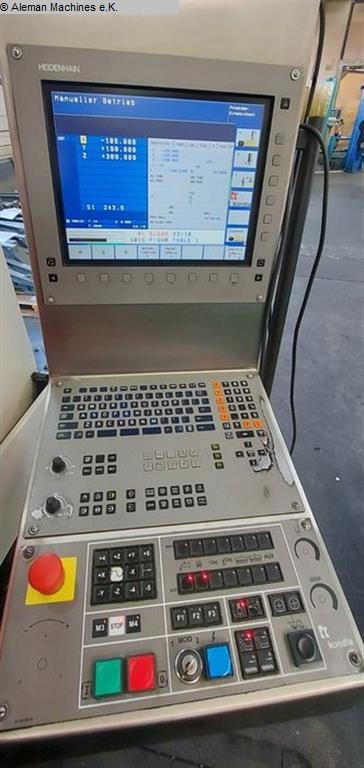

CNC HEIDENHAIN iTNC 530 |
| Luogo di stoccaggio |
Abgeber Deutschland |
| Paese di origine |
Spain |
| Tempi di consegna |
immediately |
| Quotazione |
ex work |
| Technische Dettagli |
| x-travel |
1.000 mm |
| y-travel |
500 mm |
| z-travel |
610 mm |
| Control |
HEIDENHAIN iTNC 530 |
| turning speeds |
12000 U/min |
| Tools changer |
40 pos. |
| Tool adapter |
SK 40 |
| table-size |
1.200 x 500 mm |
| table weight |
850 Kg |
| Internal cooling system |
20 bar |
| Number of working hours |
26.000 h |
| Spindle hours |
7.500 h |
| total power requirement |
37 kW |
| weight of the machine ca. |
6,8 t |
| dimensions of the machine ca. |
2,65 x 2,1 x 2,9 m |
| Descrizione |

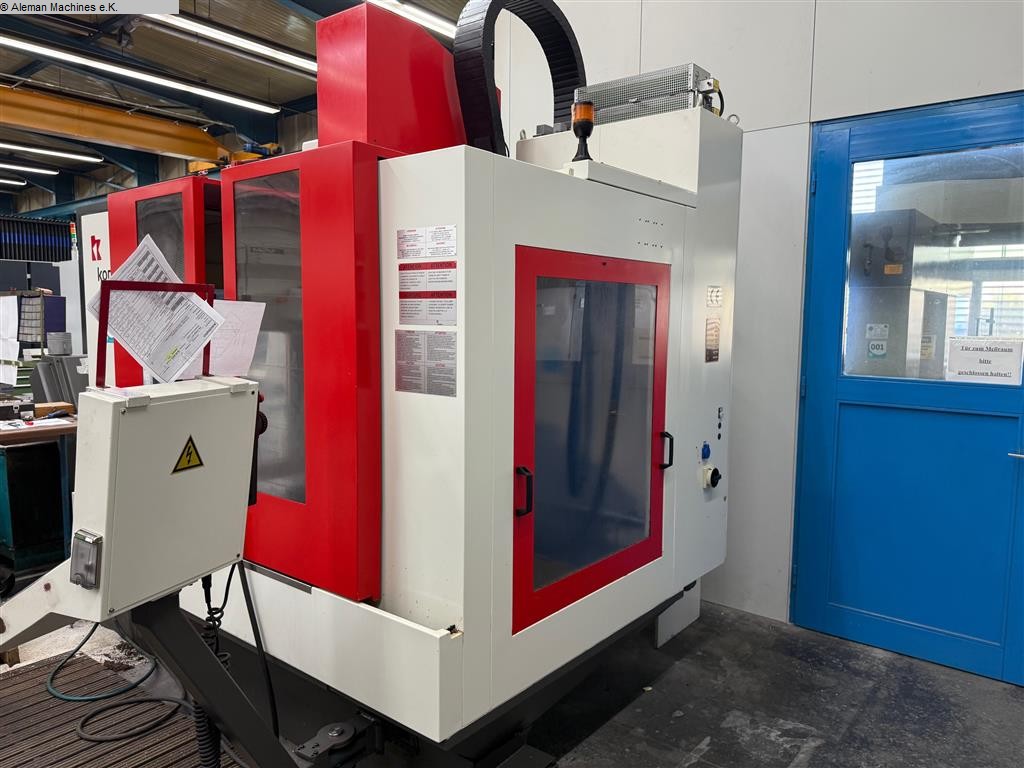

Vertical Machining Center
- Direct position measuring system

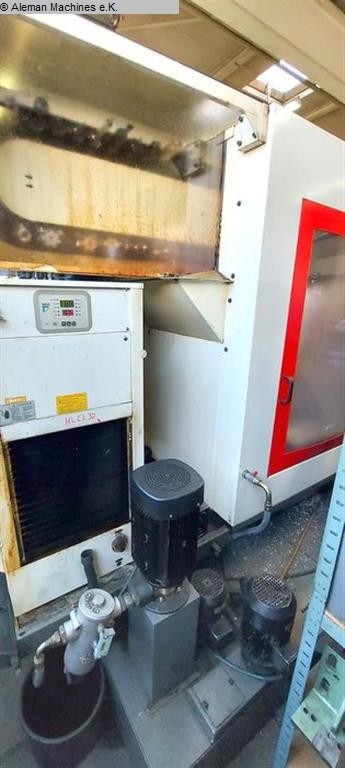

- Through-spindle coolant (IKZ) 20 bar
- Air blast through spindle
-Direct position measuring system
- Prepared for 3D probe (M&H PS 25.00)
- Chip conveyor
- NC rotary table LEHMANN EA 520 L MA (spindle height 180 mm)
- Approx. 26,000 power-on hours, approx. 7,500 spindle hours
|
|
|
|
