Bed Type Milling Machine - Universal SORALUCE - TR 35 TR-35 |
|
| Stock-no. |
1120-3001 |
| Categoria |
Bed Type Milling Machine - Universal |
| Fai |
SORALUCE - TR 35 |
| Tipo |
TR-35 |
| Anne |
2018 |
| Controllo |
CNC |
| Luogo di stoccaggio |
Abgeber Deutschland |
| Paese di origine |
Germany |
| Tempi di consegna |
immediately |
| Quotazione |
ex work |
| Technische Dettagli |
| x-travel |
3.500 mm |
| y-travel |
Quer 1.300 mm |
| z-travel |
Senkr. 1.600 mm |
| table-size |
3.800 x 1.200 mm |
| T-slots |
7 x 22 H12 |
| T-slot - distance |
140 mm |
| Main drive |
ED, 43 kW |
| speeds |
20 - 4.000 U/min |
| Torque |
900 Nm |
| tool taper |
ISO 50 DIN 69871 |
| feeds |
16.000 mm/min |
| rapid traverse feeds |
35.000 mm/min |
| Control |
HEIDENHAIN TNC 640 |
| handwheel |
HR 510 |
| milling head -swivable |
2,5 x 2,5 Grad |
| Main drive |
43 kW |
| Internal cooling system |
5/20 bar |
| chip conveyor |
Scharnierband Inkl. |
| Machine on |
11.584 |
| Spindle hours |
4.222 h |
| total power requirement |
kW |
| weight of the machine ca. |
ca. 24 t t |
| dimensions of the machine ca. |
m |
| Descrizione |

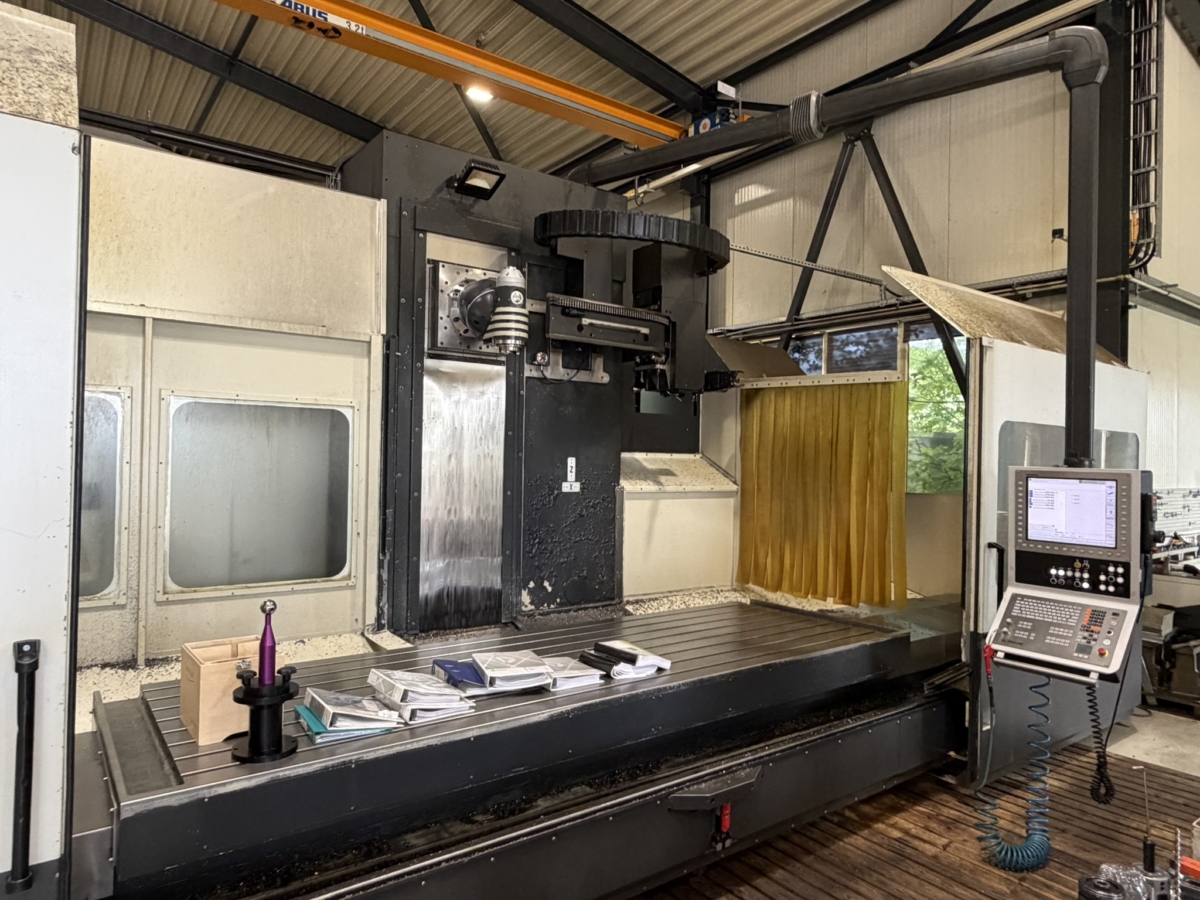

SORALUCE TR 35 HEIDENHAIN TNC 640
Like-New Condition Only 4,222 Spindle Hours
High-quality CNC bed milling and boring center featuring extensive equipment
and the latest HEIDENHAIN TNC 640 control system.
Technical Specifications
Travels: X 3,500 / Y 1,300 / Z 1,600 mm
Table Size: 3,860 × 1,200 mm
Spindle Power: 43 kW / 900 Nm
Spindle Speed: 20 4,000 rpm
Spindle Taper: ISO 50
Equipment & Features

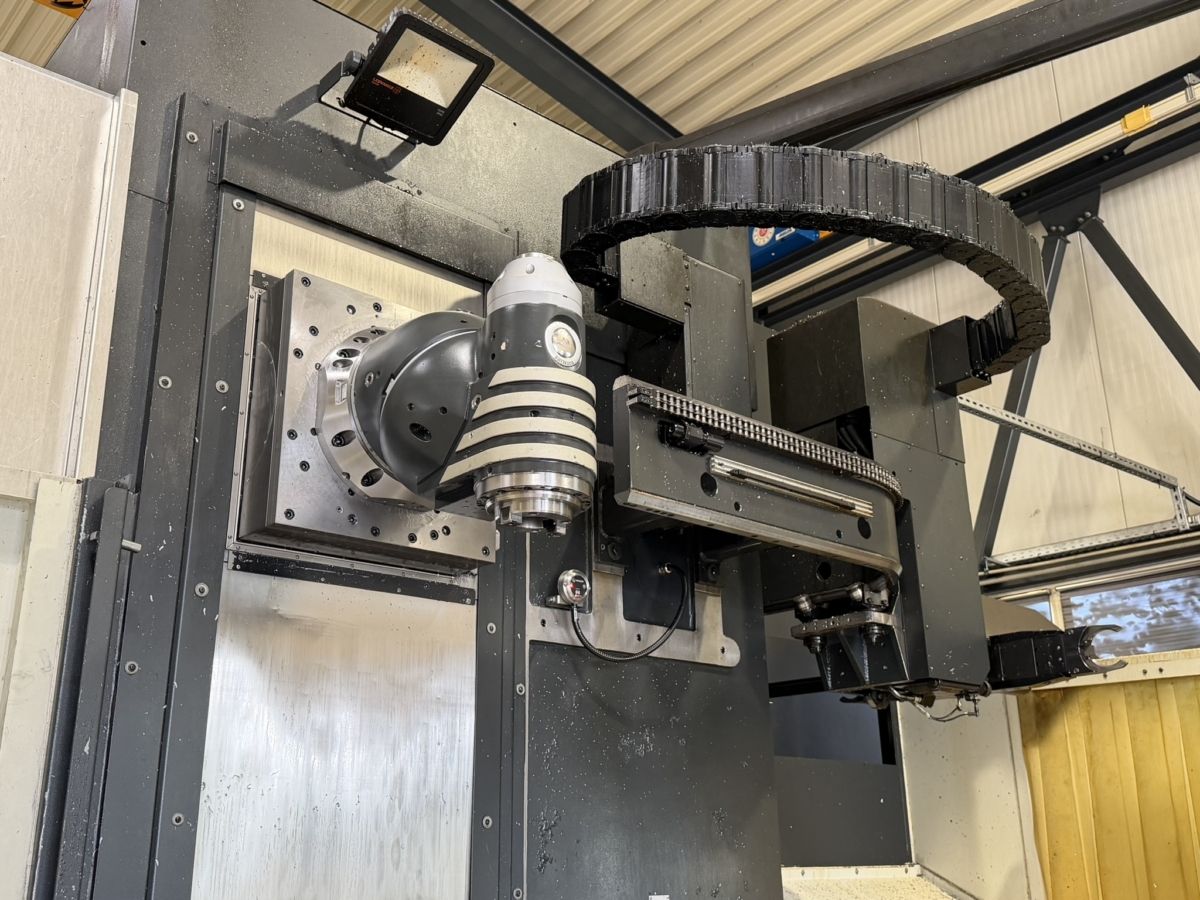

H200 Universal Milling Head, 2.5° × 2.5° indexing

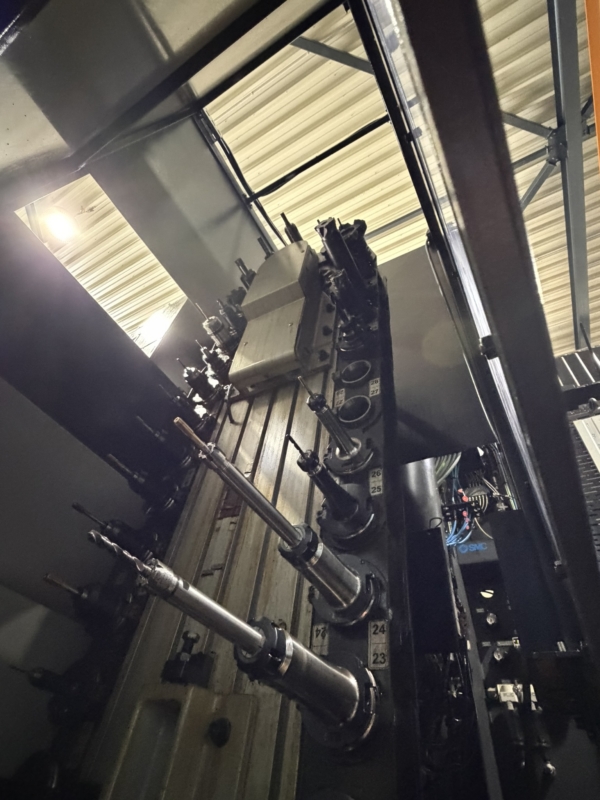

40-position Automatic Tool Changer (ATC)
5-axis interpolation
DCM collision monitoring system
Interpolation turning
M&H wireless touch probe
Through-spindle coolant (20 bar)
Paper band filter with magnetic separator
Full machine enclosure
3 chip conveyors
Condition

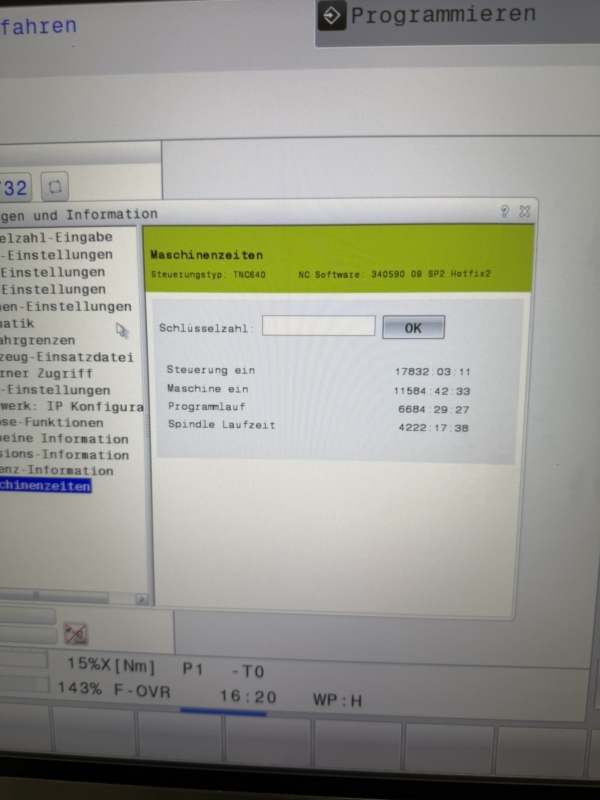

Exceptionally well-maintained machine with very low spindle usage of only 4,222
spindle hours. The machine is under power, ready for immediate operation, and
available for inspection and demonstration at any time.
Location: Baden-Württemberg, Germany.
|
|
|
|
