| No. |
1120-331 |
| Categoría |

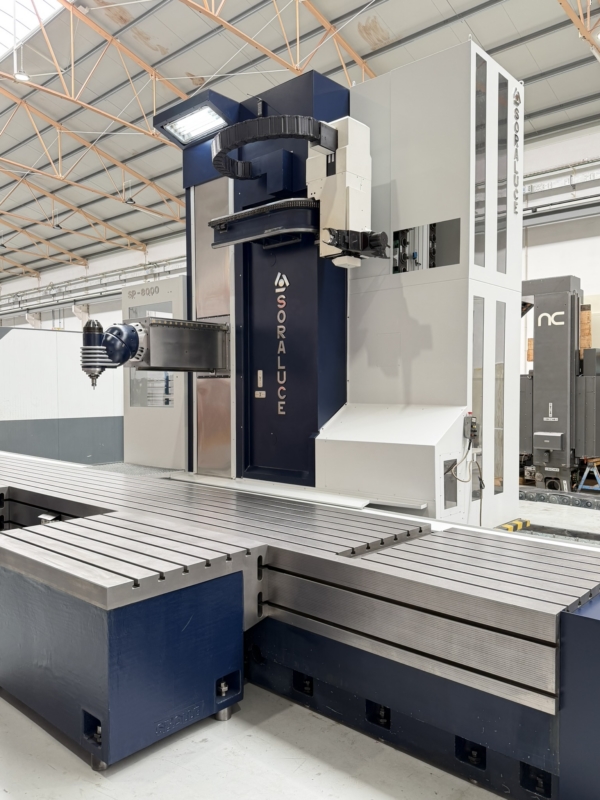

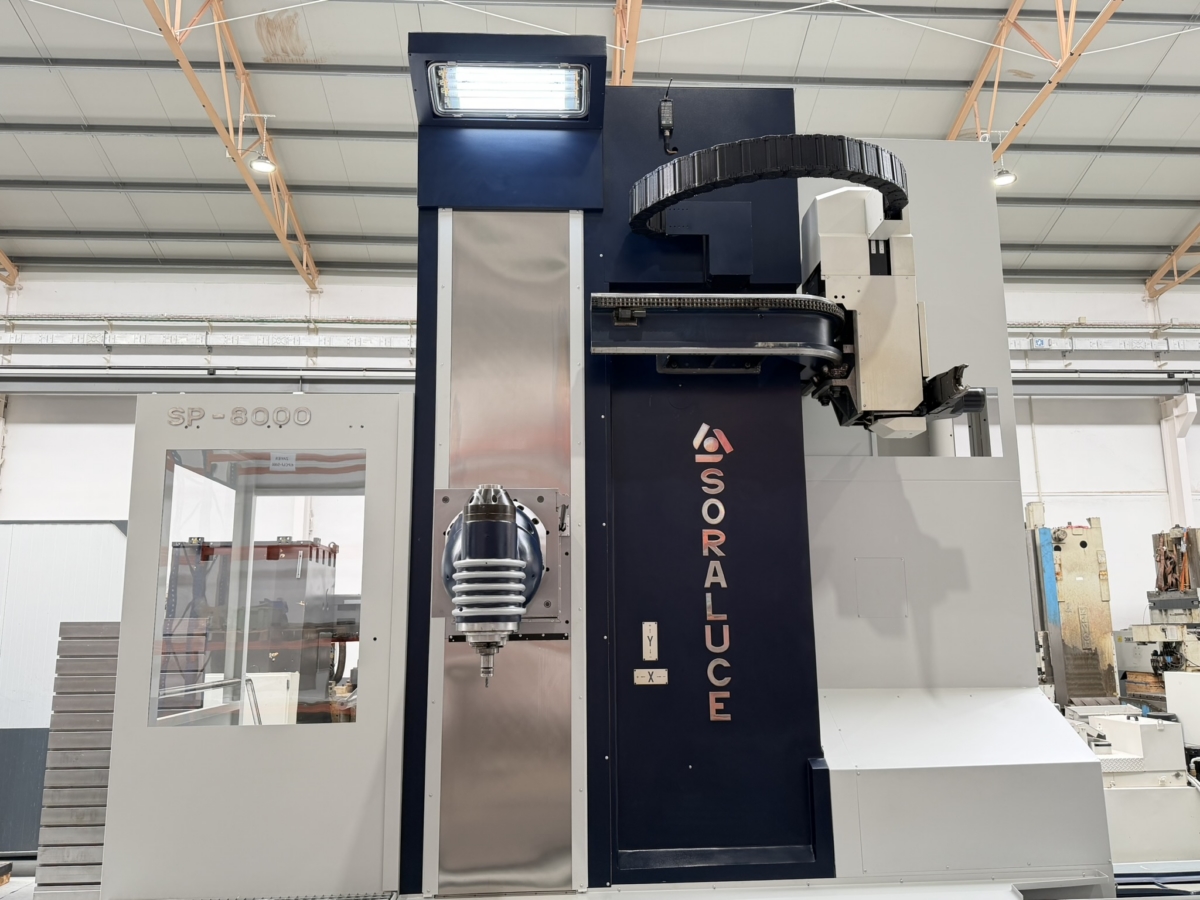

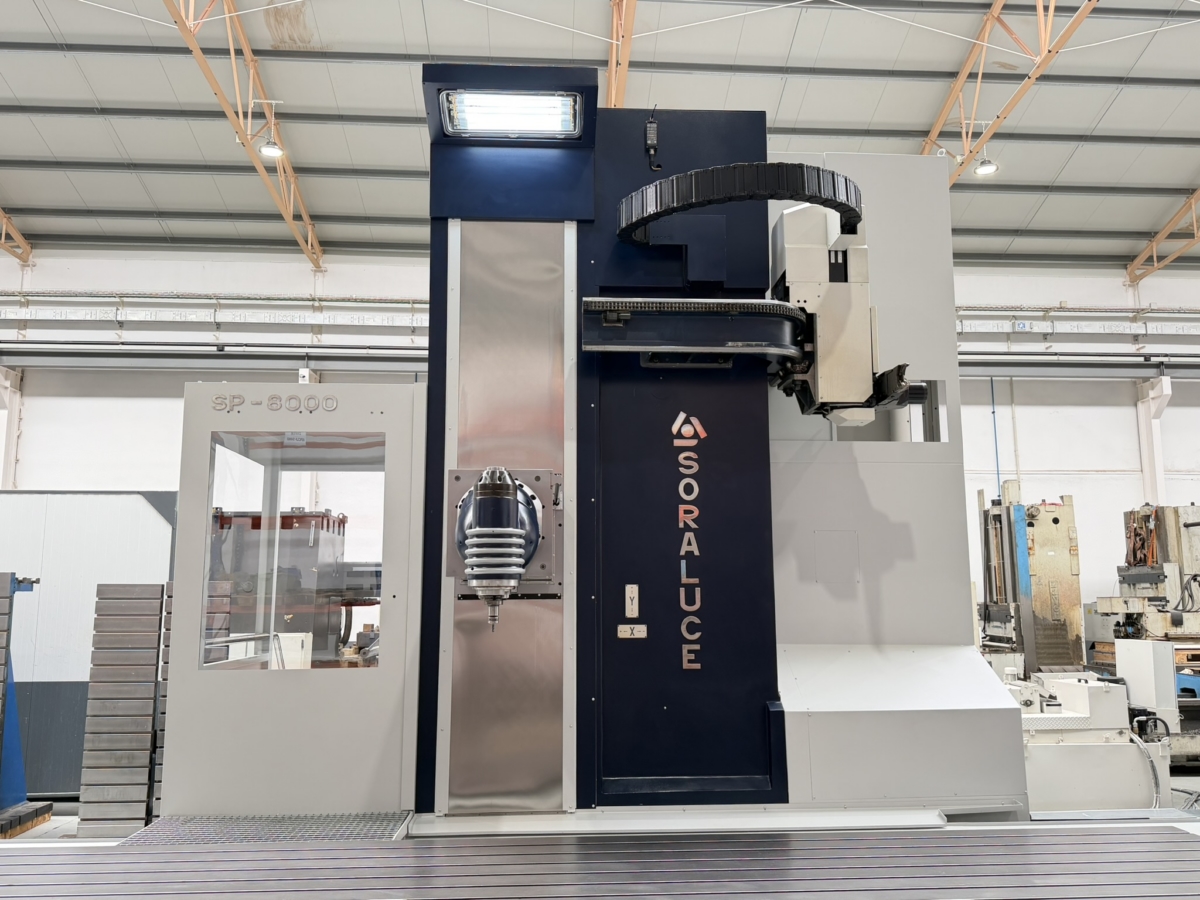

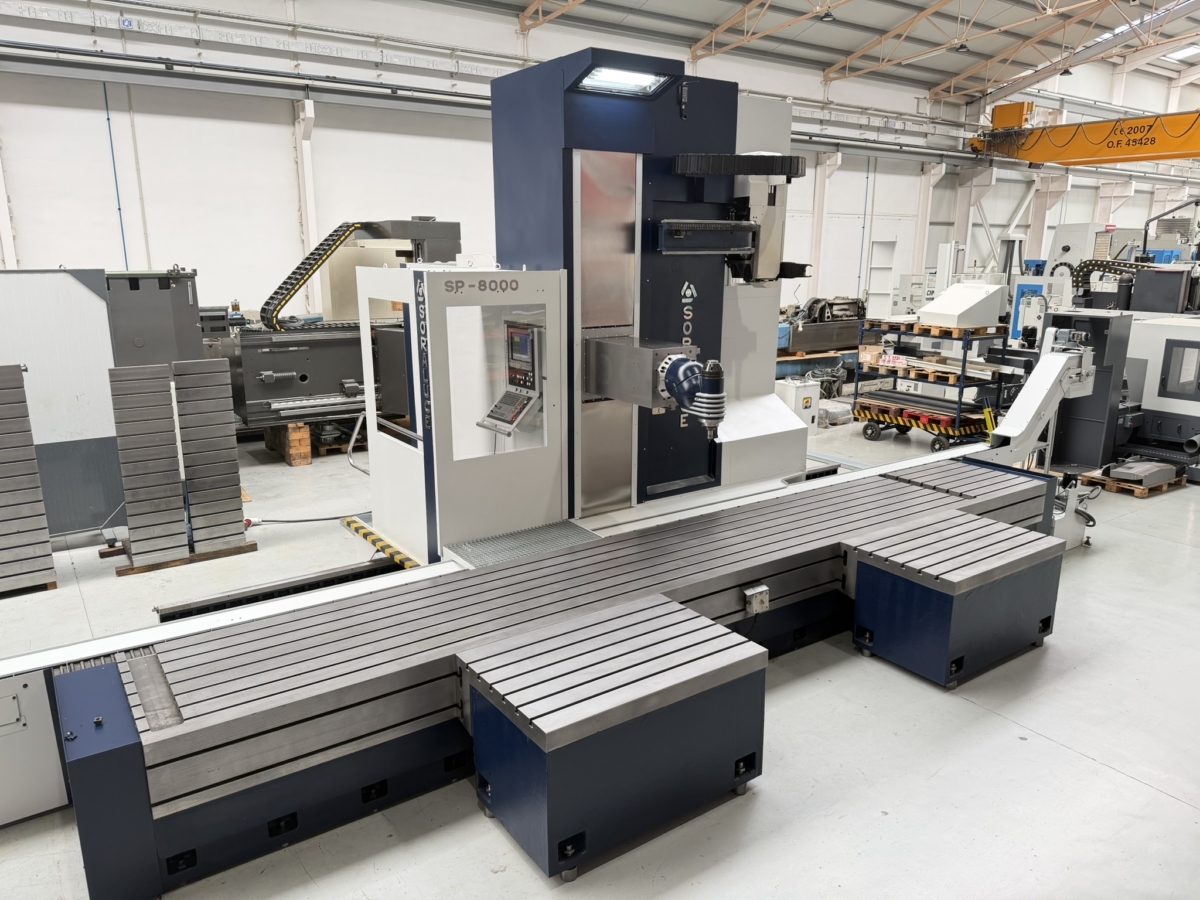

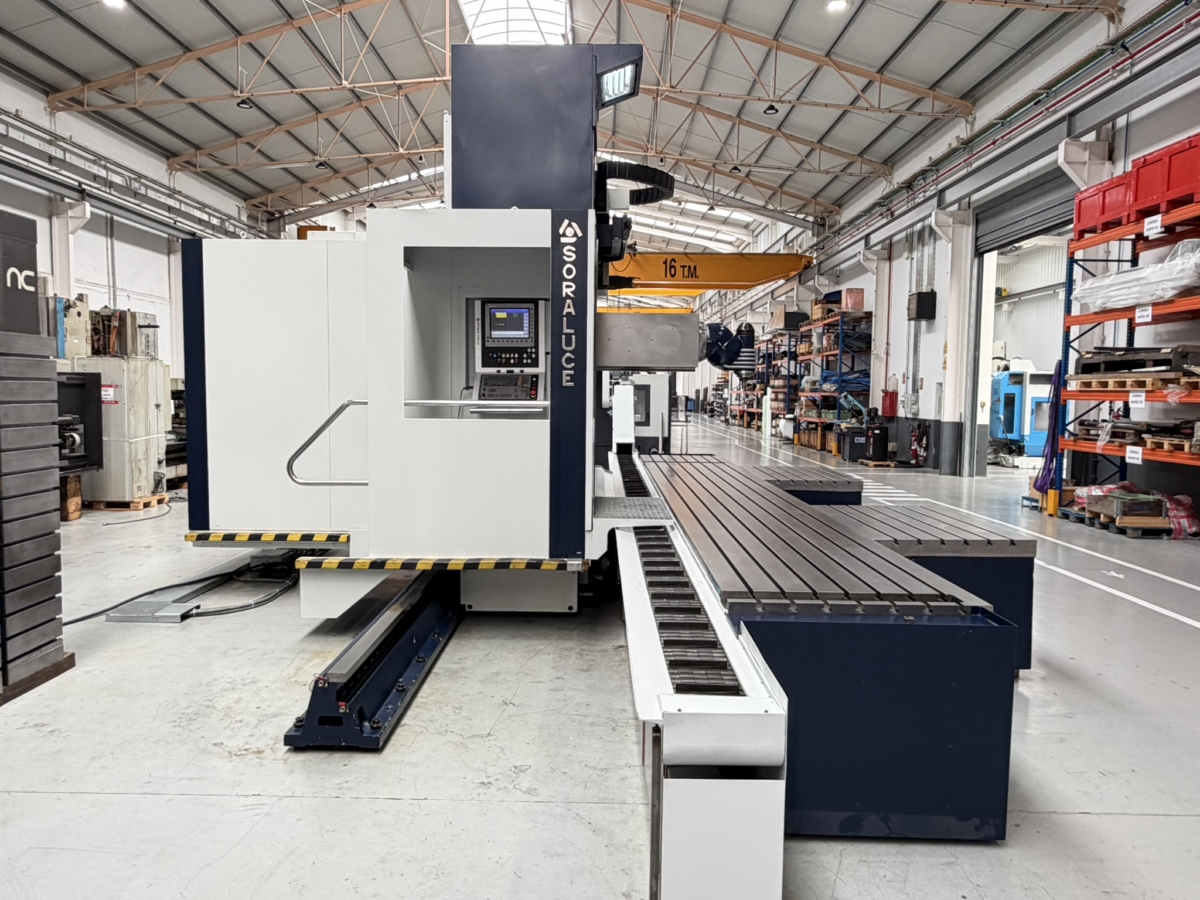

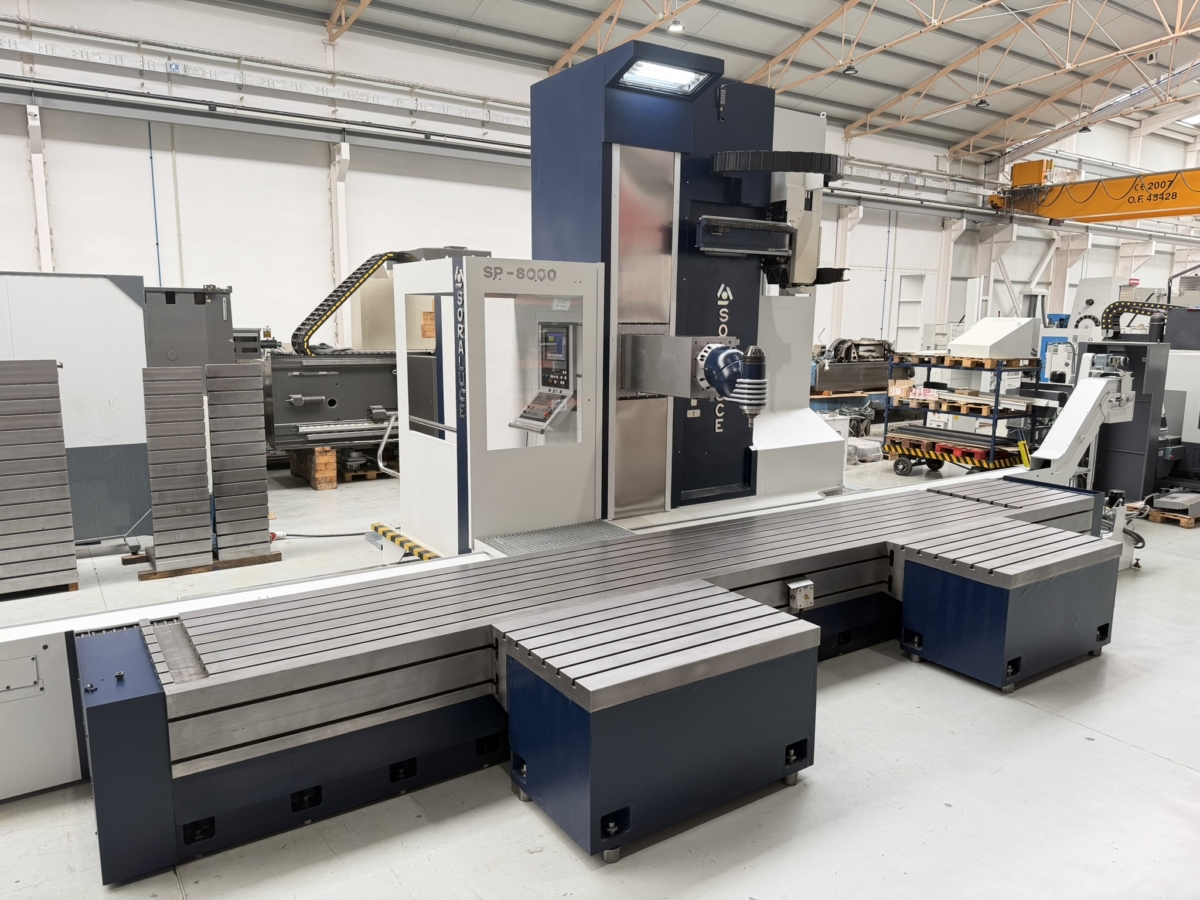

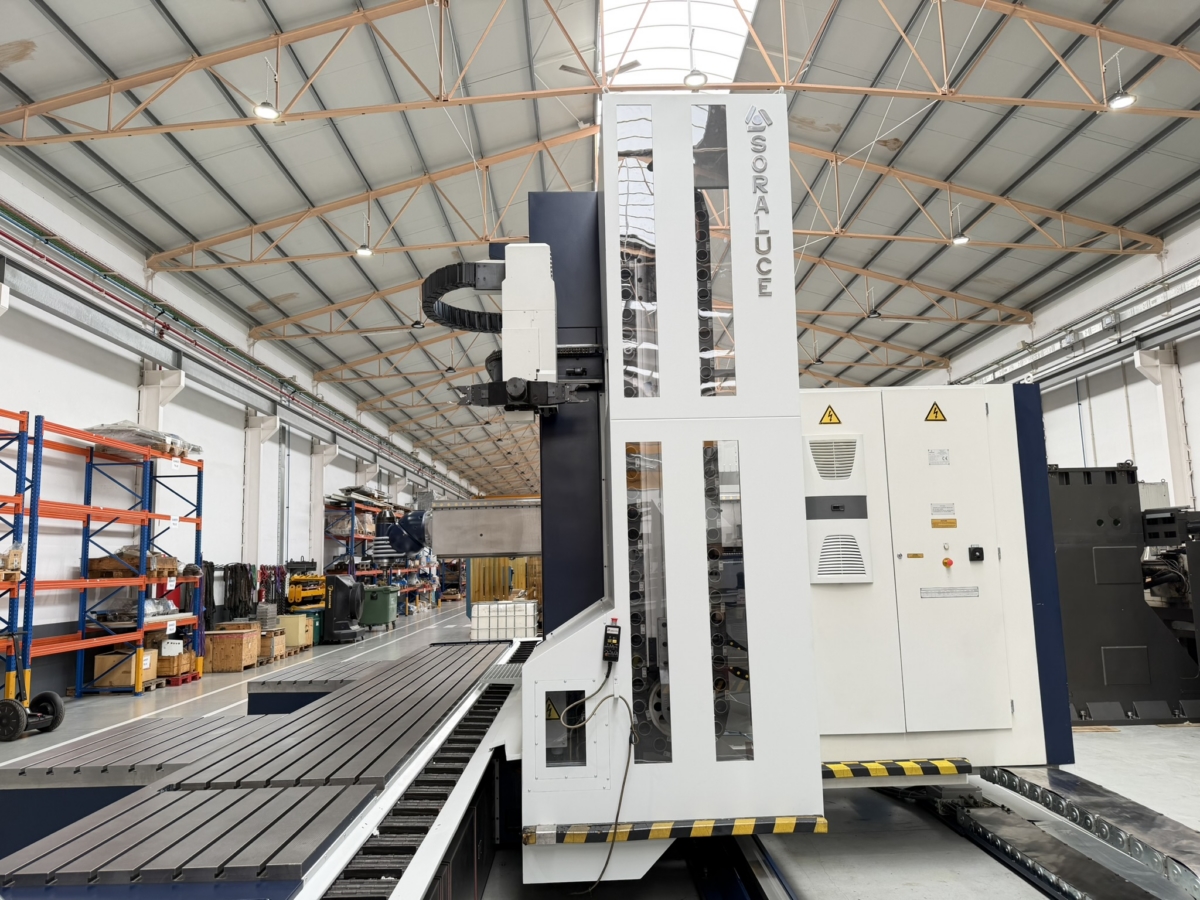

Fresadora de montante móvil |
| Hacer |
SORALUCE |
| Tip |
SP 8000 |
| Año |
2008 |
| Controle |
CNC |
| Lugar de almacenamiento |
Auf Anfrage |
| País de origen |
Spain |
| Plazo de entrega |
immediately |
| Cita |
Free carrier |
| Detalles técnicos |
| x-travel |
6.500 mm |
| y-travel |
1.500 mm |
| z-travel |
2.000 mm |
| Size of table plate |
10.000 x 1.100 mm |
| table weight |
2,5 Kg /m² Kg |
| feeds |
25.000 mm/min |

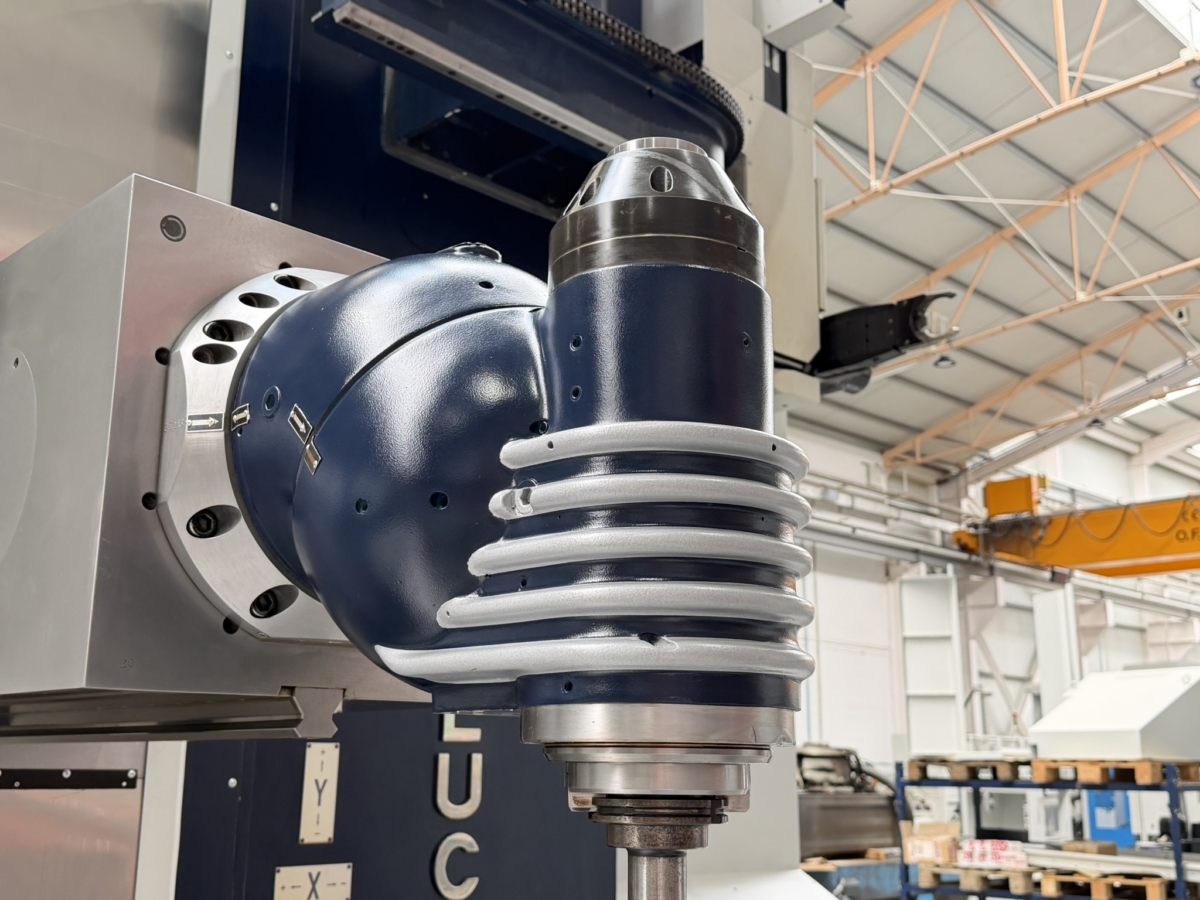

| milling head |
2,5 |
| tool taper |
ISO 50 DIN 69871 |
| number of spindle speeds |
20 - 4.000 U/min/rpm |
| transmission ratio |
2 |
| spindle drive |
30 kW |
| Tools changer |
60 fach/tools |
| Internal cooling system |
20 bar |
| chip conveyor |
Inkl. kW |
| handwheel |
Heidenhain HR-410 |

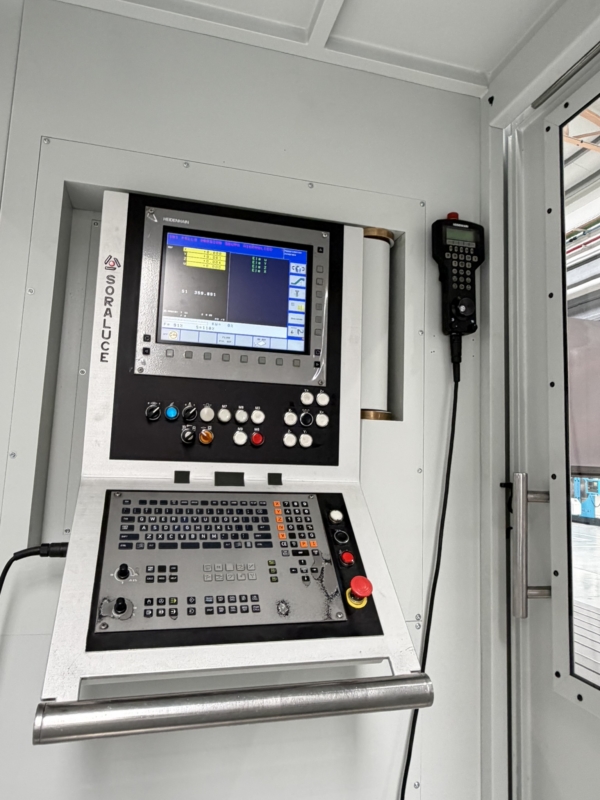

| Control |
HEIDENHAIN iTNC 530 |
| total power requirement |
63 kVA |
| weight of the machine ca. |
34,5 t |
| dimensions of the machine ca. |
11.275 x 4.840 x 4.13 mm |
| Descripción |
Maximum tool diameter with adjacent tool positions occupied: 125 mm
Maximum tool diameter with adjacent tool positions free: 250 mm
Maximum tool length: 400 mm
Maximum tool weight: 20 kg
Additional tank with paper filter

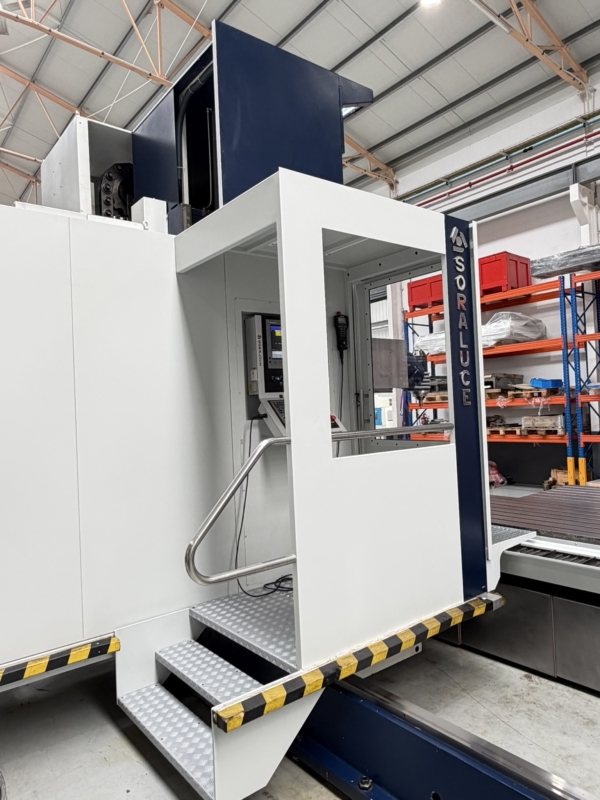

Operator platform
Motor drives: SIEMENS DIGITAL
HEIDENHAIN iTNC 530
|
|
|
|
