| No. |
1120-3003 |
| Categoría |
Fresadora de bancada rígida |
| Hacer |
SORALUCE- SP8000 |
| Tip |
SP-8000 |
| Año |
2011 |
| Controle |
CNC HAIDENHAIN iTNC 530i |
| Lugar de almacenamiento |
Abgeber Deutschland |
| País de origen |
Spain |
| Plazo de entrega |
immediately |
| Cita |
ex work |
| Detalles técnicos |
| travel -x axis |
6.500 mm |
| travel -y axis |
Senkr. 2.000 mm |
| travel -z axis |
Quer 1.500 mm |
| Control |
HAIDENHAIN iTNC 530i |
| table-size |
8.000 x 1.300 mm |
| tool taper |
ISO 50, DIN 69871A |
| tool clamping |
20.000 Nm |
| milling head -swivable |
144 pos. pro ebene 2,5 Grad |
| Main drive |
32 kW |
| spindle turning speed range |
20 - 4.000 U/min |
| feeds |
2 x 19.2 / 26,1/21,1/18,1 Nm |
| max. torque on the spindle |
910 Nm |
| handwheel |
HR 550 FS |
| Tools changer |
40 pos. |
| total power requirement |
kW |
| weight of the machine ca. |
t |
| dimensions of the machine ca. |
m |
| Descripción |

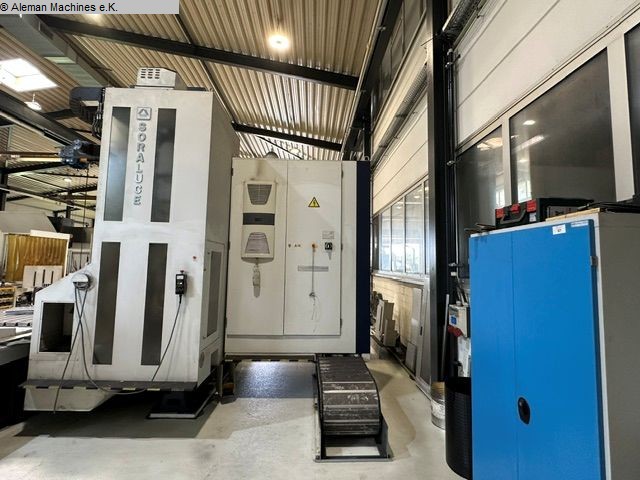

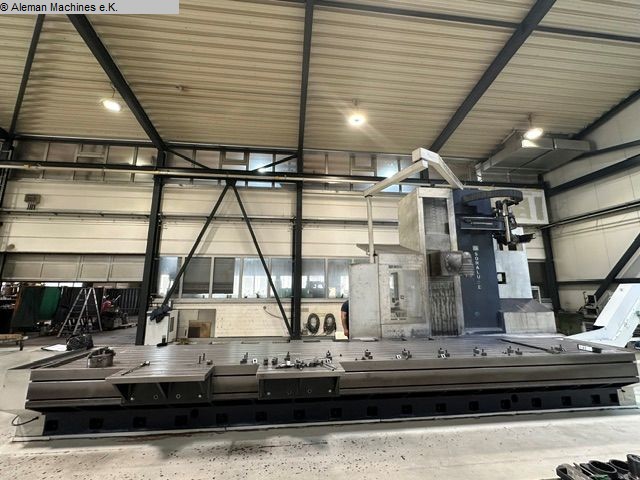

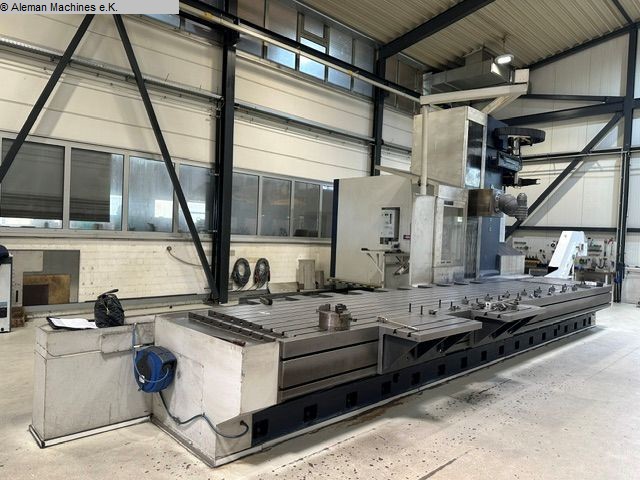

SORALUCE SP 8000 CNC Bed Milling and Drilling Center
Manufacturer: Soraluce
Model: SP 8000
Year of Manufacture: 2011
Control: Heidenhain iTNC 530
Technical Data
Travels X/Y/Z: 6,500 x 2,000 x 1,500 mm
Table Size: 8,000 x 1,350 mm
ISO 50
Spindle Power: 32 kW
Torque: 910 Nm
Speed Range: 20 4,000 rpm
Rapid Travel X/Y/Z: 25,000 mm/min
Max. Table Load: 5 t/m²
Machine Weight: approx. 26,800 kg
Equipment

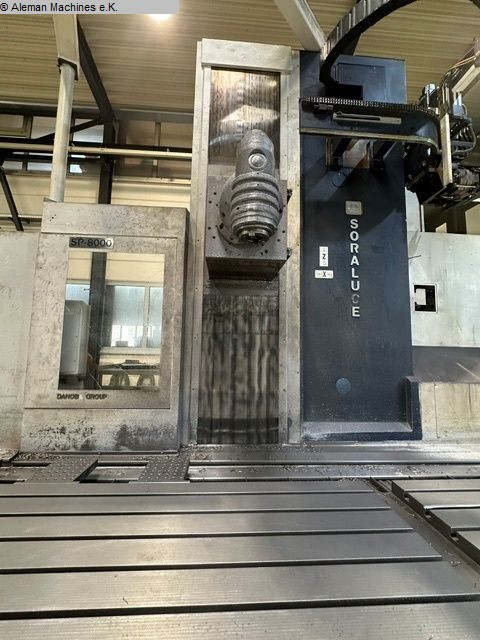

Automatically indexing orthogonal milling head with 1° division
5-sided machining
40-position tool changer
M&H Wireless Probe 20.41 MULTI

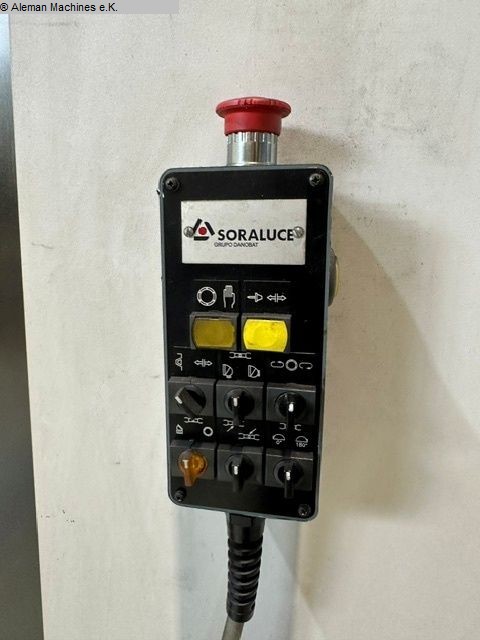

Electronic handwheel with wireless transmission
Lubrix minimum quantity lubrication

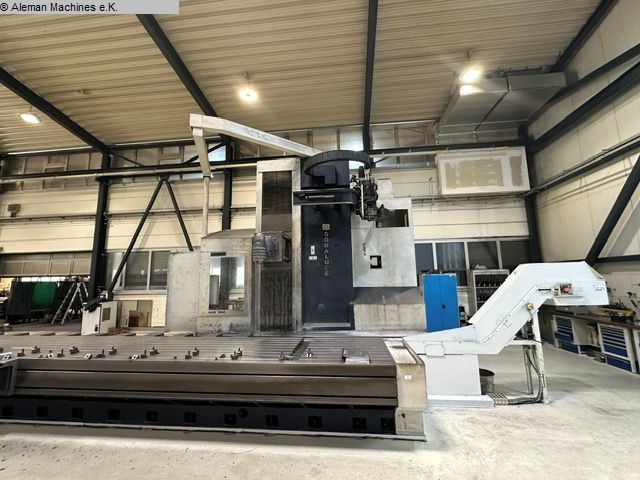

Chip conveyor
2 support brackets 1,000 x 400 mm
Air/oil lubrication of milling head
Operating Hours
Control ON: 32,632 h
Machine ON: 29,709 h
Program Run: 10,731 h
Condition
Machine first-hand, available under power. Very well maintained overall.
Documentation available.
|
|
|
|
