| Stock-No. |
1120-779 |
| Category |
CNC Lathe |
| Make |
PINACHO |
| Type |
RHINO SK 425 |
| New in |
2005 |

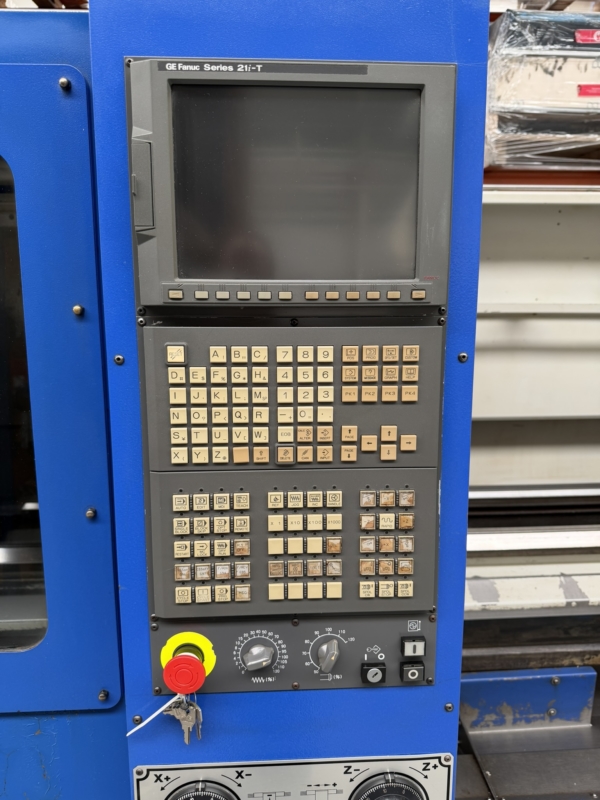

| Control |
konventionell GE Fanuc Series 21i-T |
| Location |
Auf Anfrage |
| Origin |
|
| Delivery time |
on inquiry |
| Freight basis |
Free carrier |
| Technical details |
| control |
GE Fanuc Series 21i-T |
| Distance between centres |
5000 mm |
| center bore |
425 |
| swing over bed |
850 mm |
| bed width |
425 mm |
| rapid feed |
10000 mm/min |
| working feed |
7000 mm/min |
| main spindle bore |
85 mm |
| Main spindle |
DIN 55027-n°8 |
| taper |
5 |
| spindle speeds |
0-2000 U/min |
| Spindle power |
11 KW |

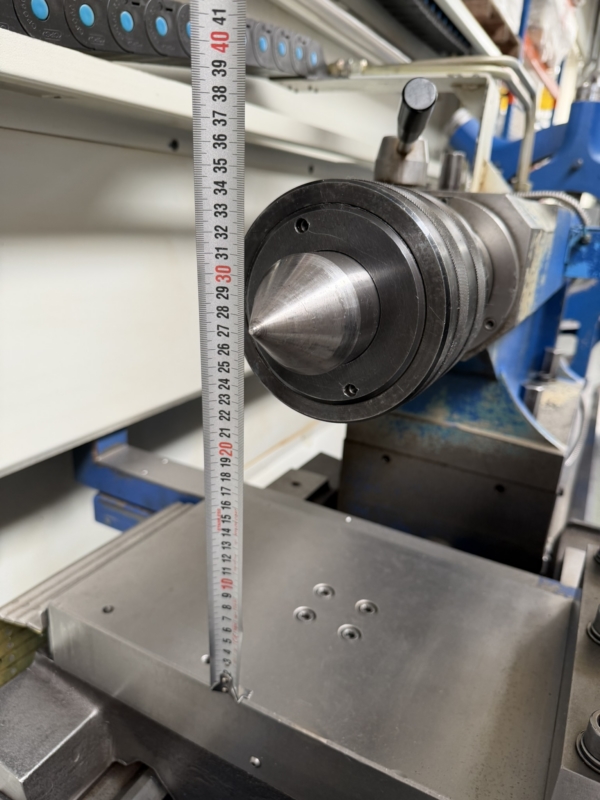

| tailstock quill diameter |
96 mm |
| tailstock travel |
215 mm |
| weight of the machine ca. |
7 t |
| dimensions of the machine ca. |
7.300x1.700x1.900 m |
| Description |
Support Guides 2
Swing over cross carriage 560 mm.
Automatic ranges 2
Turret type Automatic
Turret positions 8
Hydraulic tailstock quill stroke INCLUDED
Tailstock taper MORSE 6

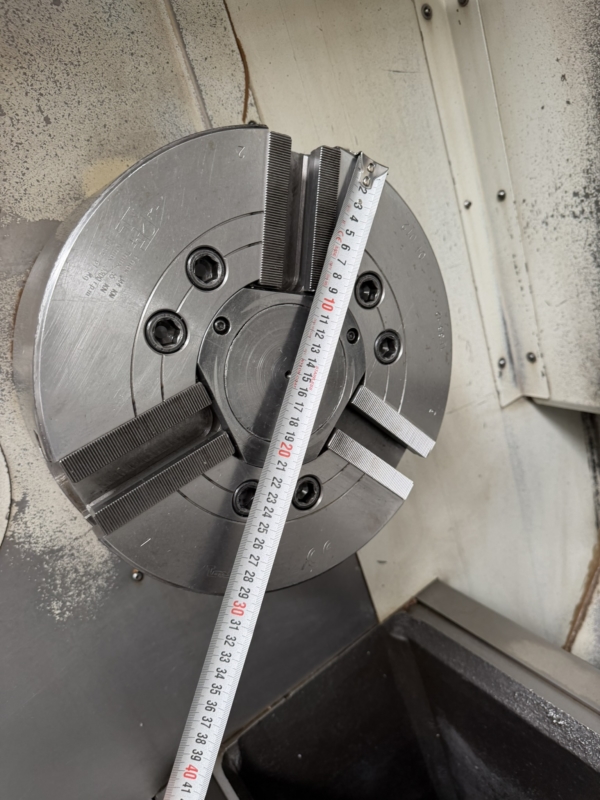

3 Jaw Auto-centering hydraulic chuck Ø 300 mm. INCLUDED

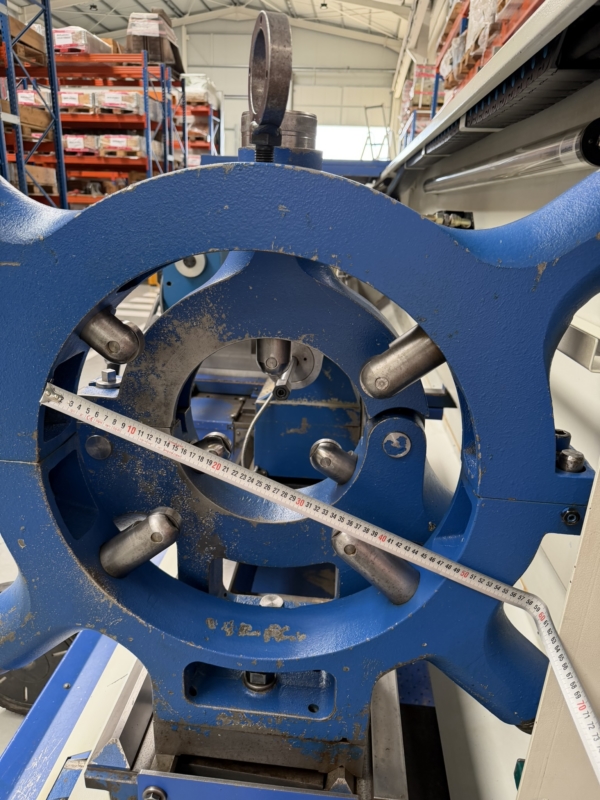

4 support steady rest Ø 450 mm. INCLUDED
3 support steady rest Ø 250 mm INCLUDED
Chuck protection INCLUDED
Complete rear protection INCLUDED
Dual handwheel for carriage control INCLUDED
Foot pedals for hydraulic chuck operation INCLUDED
|
