| Stock-No. |
1120-314 |
| Category |

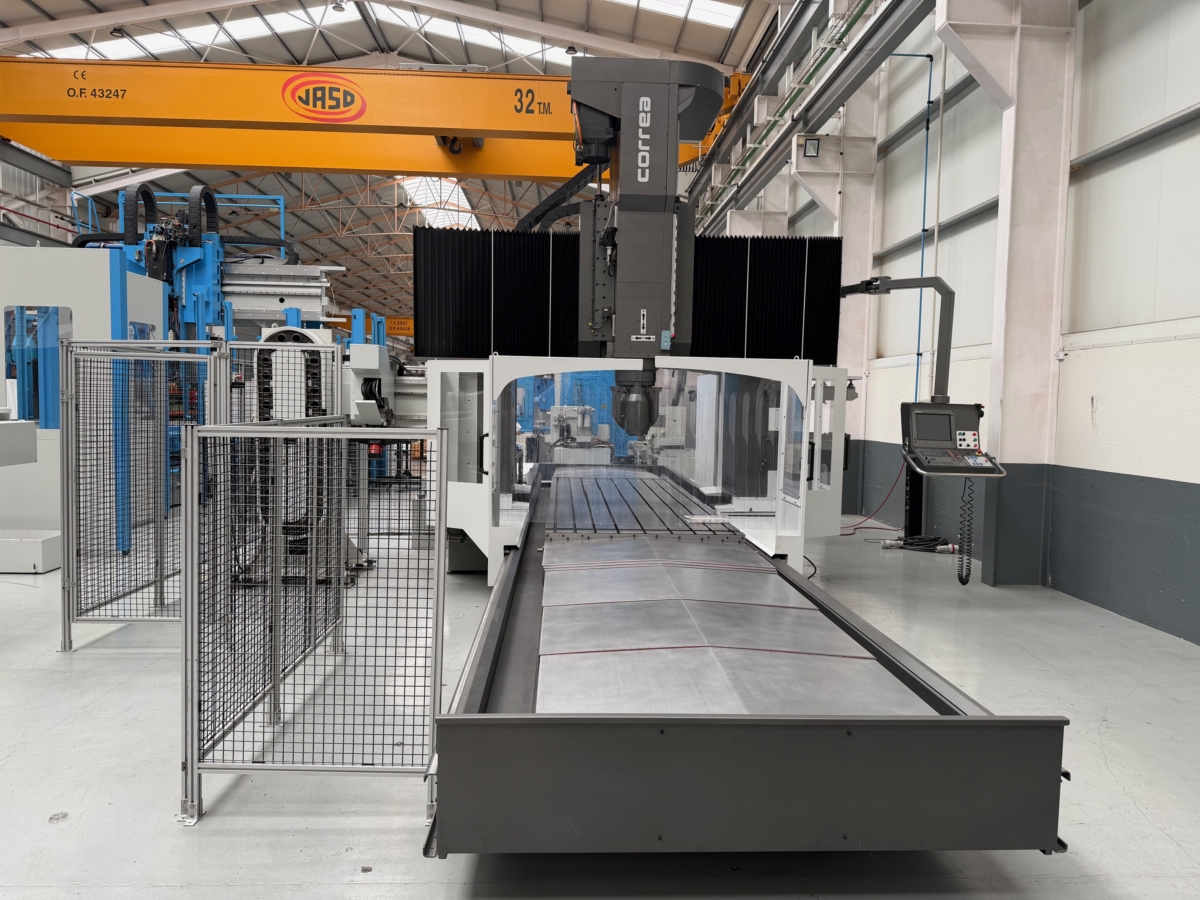

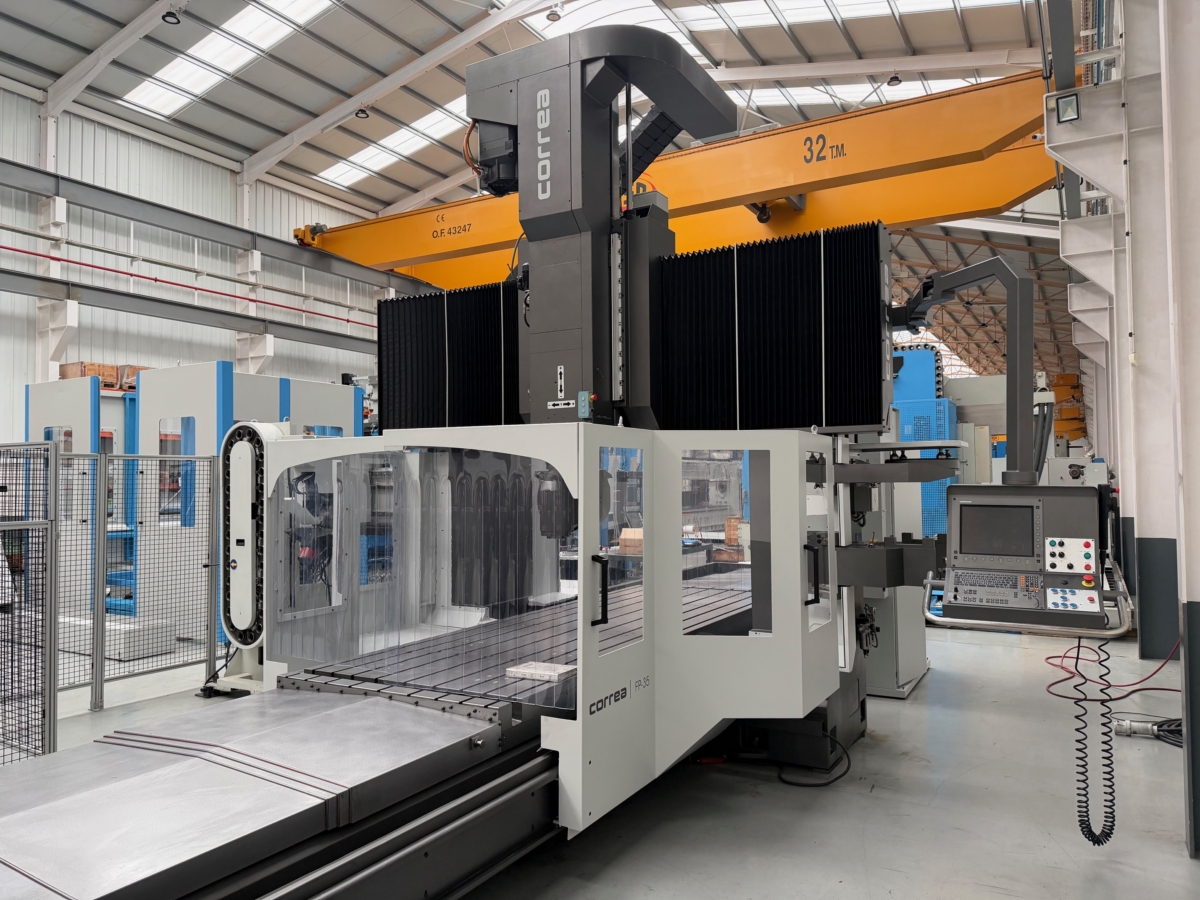

Planer-Type Milling M/C - Double Column |
| Make |
CORREA |
| Type |
FP 35 UAGA |
| New in |
2006 |
| Control |
CNC HEIDENHAIN iTNC-530 |
| Location |
Auf Anfrage |
| Origin |
Spain |
| Delivery time |
immediately |
| Freight basis |
Free carrier |
| Technical details |
| x-travel |
3.500 mm |
| y-travel |
2.600 mm |
| z-travel |
1.000 mm |
| Control |
HEIDENHAIN iTNC-530 |
| table-size |
4.500 x 1.500 mm |
| table weight |
15.000 Kg |
| distance between columns |
2.300 mm |
| rapid travel x/y/z |
15/12.000 mm/min |
| feed |
5 m/min |

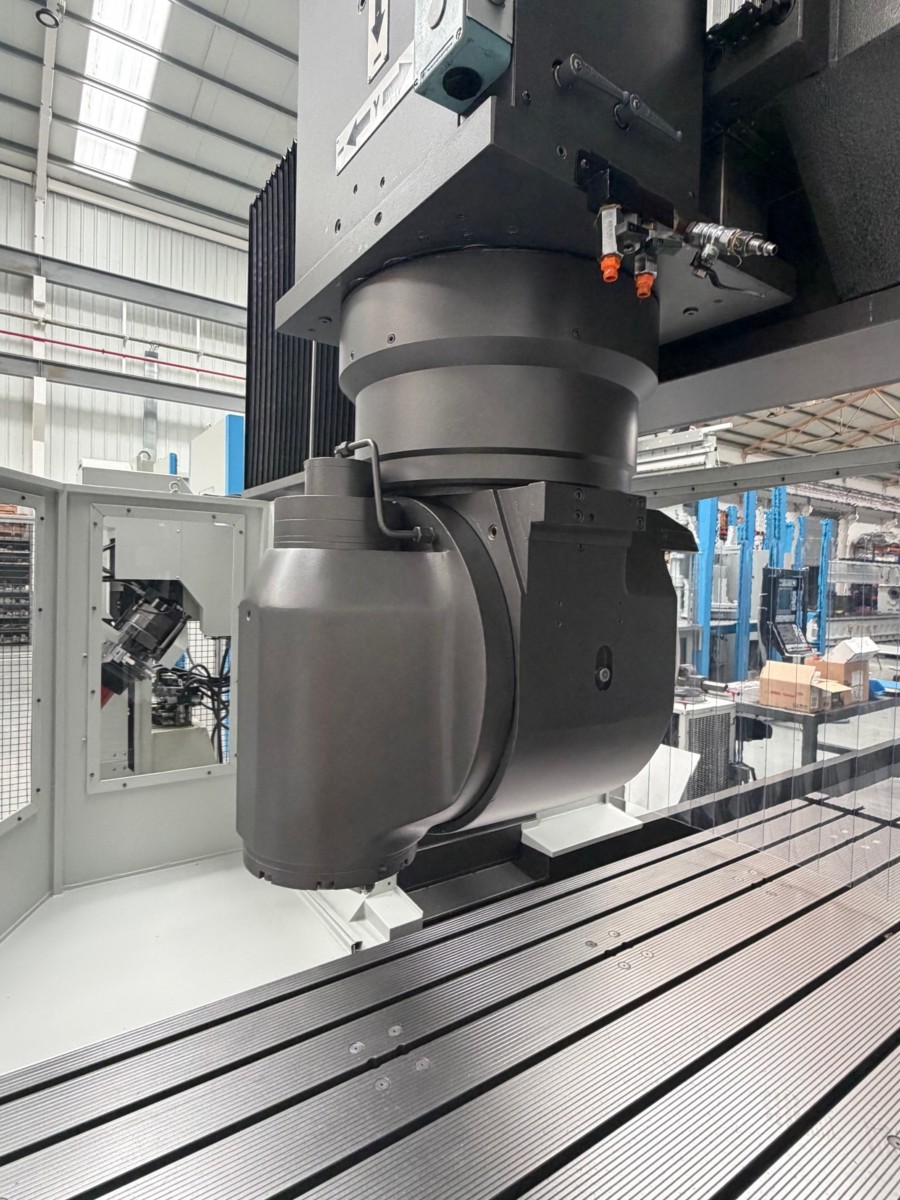

| milling head |
Automatic Orthogonal UAGA |
| milling head swivable ca. |
2,5 x 2,5 ° |
| spindle turning speed range |
3.000 U/min |
| spindle drive |
22 kW |
| transmission ratio |
2 |
| tool taper |
ISO 50 |

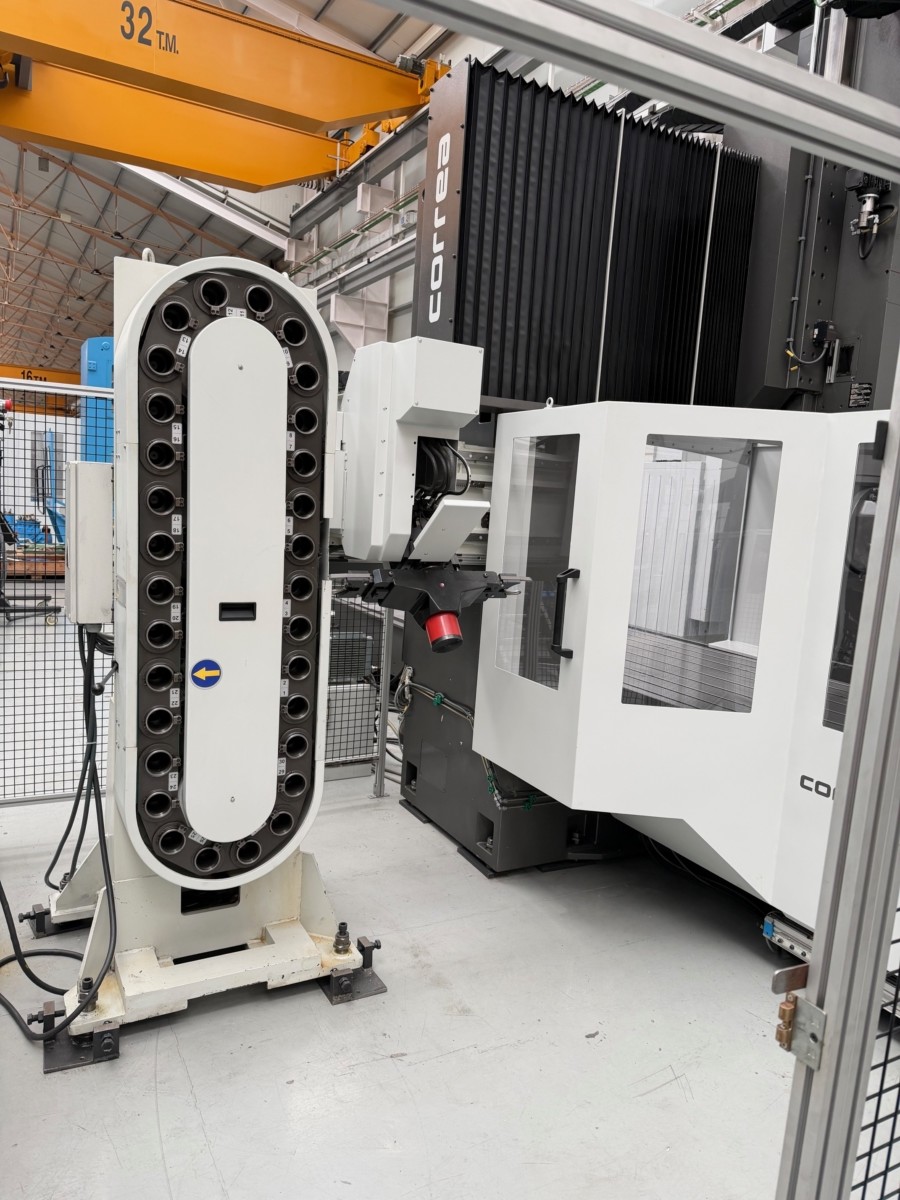

| Tools changer |
30 fach/tools |
| handwheel |
HEIDENHAIN HR 410 |
| total power requirement |
kW |
| weight of the machine ca. |
28 t |
| dimensions of the machine ca. |
m |
| Description |
- Direct-Drive Spindle Head
- Direct-Drive Spindle Speed 5,000 rpm
- Automatic Retractable Support on the Right Side for Orthogonal UAGA Head
- Automatic Retractable Support on the Left Side for Direct-Drive Spindle Head -
Cover
- Automatic Head Clamping
|
